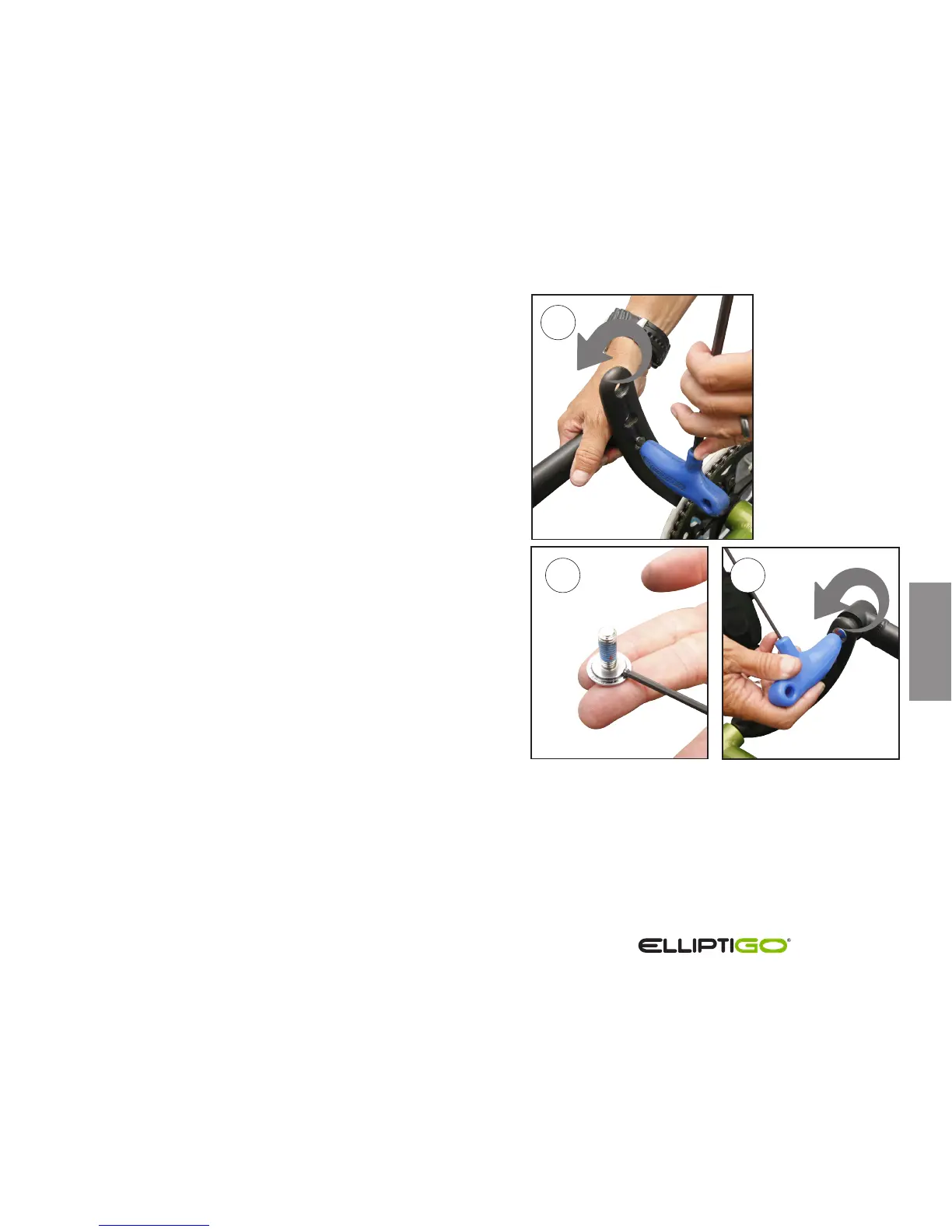

6. Using your fingers, thread the drive arm axle counter-
clockwise several rotations into the new mounting
position on the right crank arm, ensuring that
the threads are aligned correctly and not binding.
Once the drive arm axle is threaded into the
new position several turns, insert a 6mm Allen
wrench into the drive arm axle and, while ensuring
that the washer remains flat in the counter-bore,
rotate the wrench counter-clockwise until the axle is
fully seated. Torque the axle to 34 N-m.
7. If your bike does not have a drive arm retention
screw, proceed to the next step. If you bike has a drive
arm retention screw, insert it into the back of the
drive arm axle. Using a 2.5mm Allen wrench, rotate the
retention screw counter-clockwise until it is seated
flush against the drive arm axle.
8. Repeat steps 2-6 for the left drive arm. NOTE: To
loosen the left drive arm axle retention screw (if any)
and drive arm axle, stand on the right hand side of the
bike and turn your wrench counter-clockwise. To
tighten, turn them clockwise.
