The electrical connection is achieved by connecting the power cable with the connector (C), blue wire with N contact
and brown or black wire with L contact (fig 2). Press mask (A) on the frontal part of the ventilator (B), until it is firmly
caught by the mask holder (1) (fig 1). The appliance must be connected with the power cable with the cross section of
2
at least 1.0 - 1.5 mm .
~
L
N
~
L
N
USER MAINTENANCE
The ventilator maintenance works are conducted only after the appliance is disconnected from power supply.
Cleaning should be done with a soft cloth and a small brush using water solution of a mild detergent. Avoid contact
between liquid and electric components. After cleaning, surfaces need to be well dried before the appliance is used
again.
STORING
The appliances should be stored i.e. kept in an aired premise at temperatures from +5 °C to + 40 °C and at relative air
humidity lower than 80% (at T = 25 °C), in original production packaging.

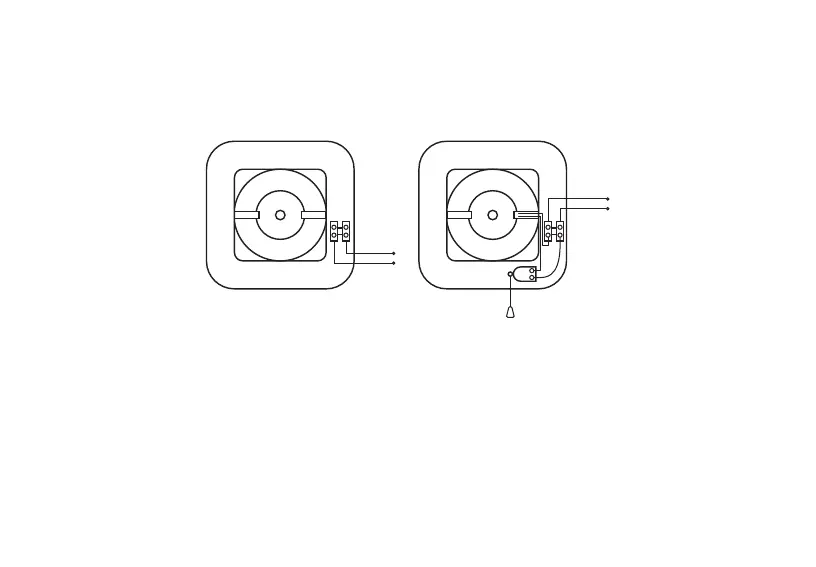

FIGURE 2. Wiring diagram
WITH OR
WITHOUT FLAP
WITH PULL
SWITCH
