ELRO DV477W - 3 Mounting Outdoor Unit

- 4 -

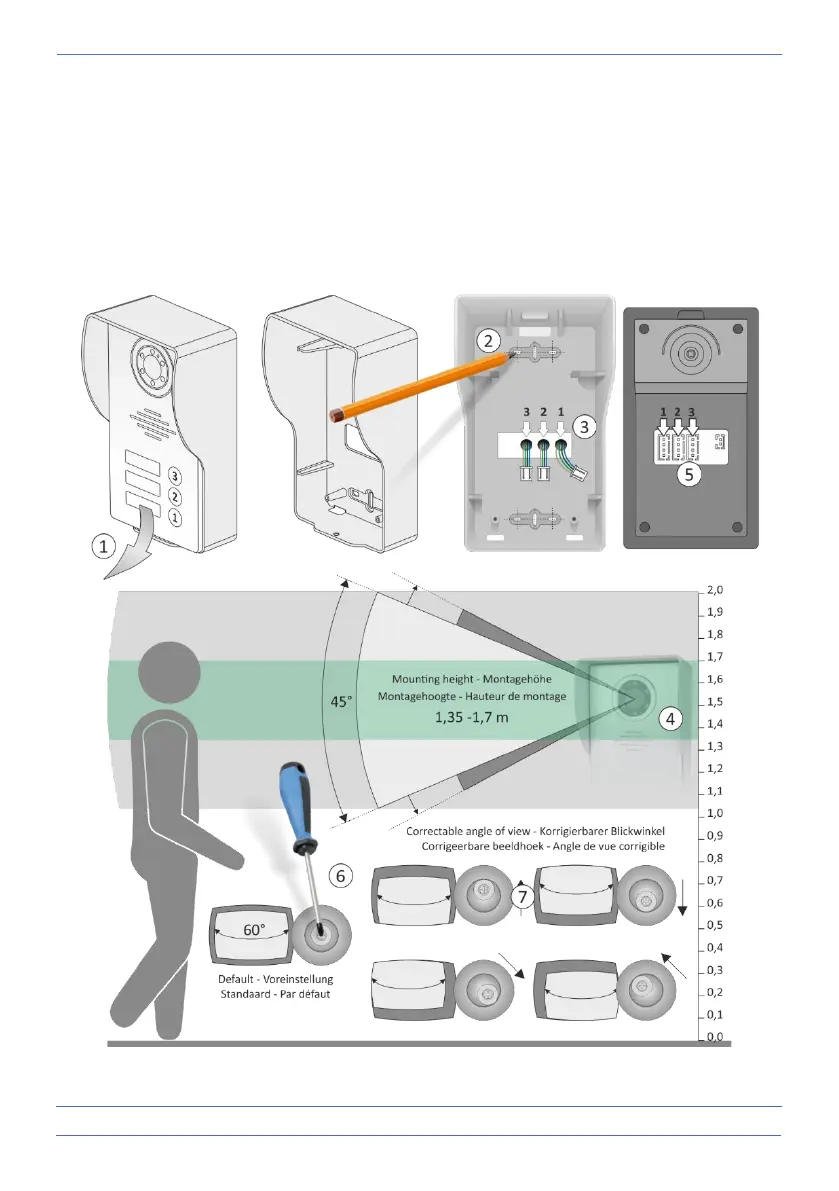

3. Mounting outdoor unit
• Remove the outdoor unit (1) from the rain-sun shade and use it to mark drill holes for
mounting on the wall (2).
• The shade must be mounted flush with the entire rear side of the wall/wall.
• Drill one or more holes (3) to connect the connection cables through the wall/wall to the
outdoor unit.
