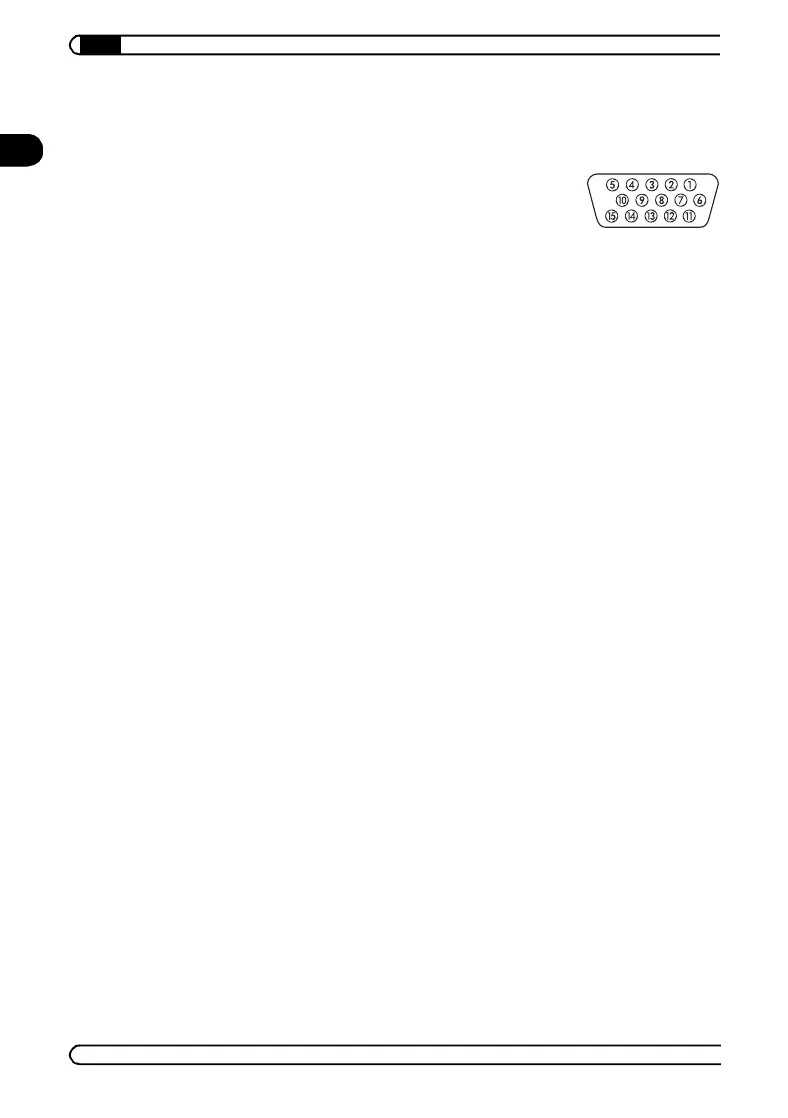

Ports on the graphics board
The VGA D-shell socket
The GLADIAC issues analog signals in accordance with the requirements of
directive RS-170. The synchronization information is sent separately. If your
monitor supports the switching of input impedance, the '75 Ohm' setting (=
'75Ω') should be chosen for the R, G and B video inputs and the '2 kOhm'
setting (= '2kΩ') should be set for the sync inputs. You should not try other
switch settings at the sync inputs unless your monitor expects a sync level
that differs from that of most common monitors and does not produce a
stabile image. In some cases, the switch settings are labeled only with
“Low” and “High.” Of this is the case, either you can look up the Ohm values
for the switch settings in the user manual provided with your monitor or you
can try both settings to see which one produces a stabile image in all of the
graphic display modes you require.
