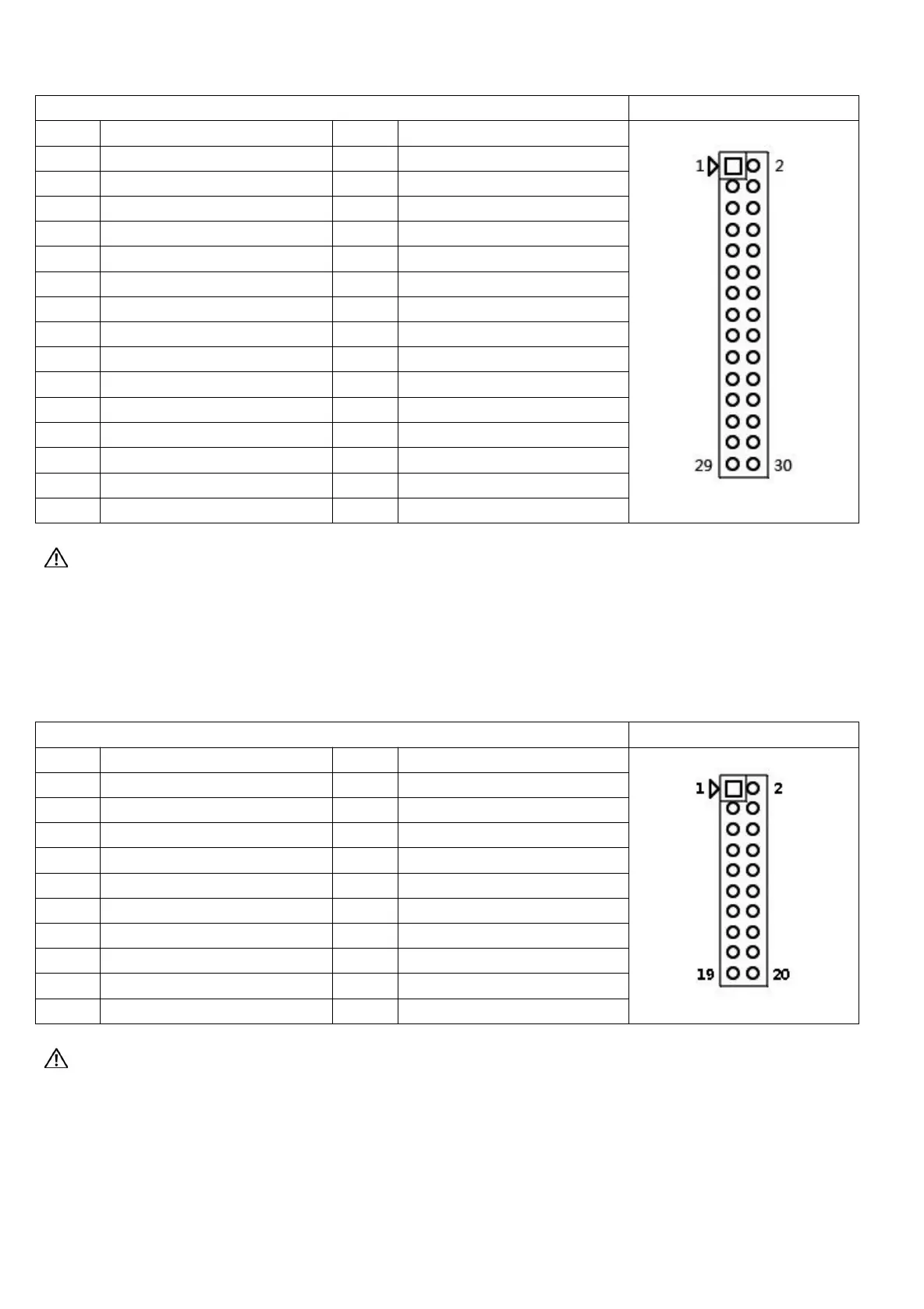

2.2 LVDS pin definition:
Position symbol: LVDS2 (2*15Pin,2.0mm)
pin position symbol drawing
pin
definition
pin
definition
1
VCC
2
VCC
3
VCC
4
GND
5
GND
6
GND
7
ADO0-
8
ADO0+
9
ADO1-
10
ADO1+
11
ADO2-
12
ADO2+
13
GND
14
GND
15
ACLK-
16
ACLK+
17
ADO3-
18
ADO3+
19
BDO0-
20
BDO0+
21
BDO1-
22
BDO1+
23
BDO2-
24
BDO2+
25
GND
26
GND
27
BCLK-
28
BCLK+
29
BDO3-
30
BDO3+
Notice: When inserting the LVDS cable, the first pin of the LVDS cable must correspond to the first pin of the LVDS2
pin on motherboard. If the port is reversed or inserted incorrectly, there is a danger of burning the screen and burning
the motherboard!
2.3 EDP2 pin definition:
Position symbol: EDP2 (2*15Pin,2.0mm)
pin position symbol drawing
pin
definition
pin
definition
1
VCC
2
VCC
3
VCC
4
HPD
5
GND
6
GND
7
TX0N
8
TX0P
9
TX1N
10
TX1P
11
NC
12
NC
13
GND
14
GND
15
AUX-
16
AUX+
17
GND-
18
GND
19
TX2N
20
TX2P
Notice:
The EDP2 pin needs to connect independent backlight cable.
When inserting the EDP cable, the first pin of the EDP cable must correspond to the first pin of the EDP2 pin on
motherboard. If the port is reversed or inserted incorrectly, there is a danger of burning the screen and burning the
motherboard!
