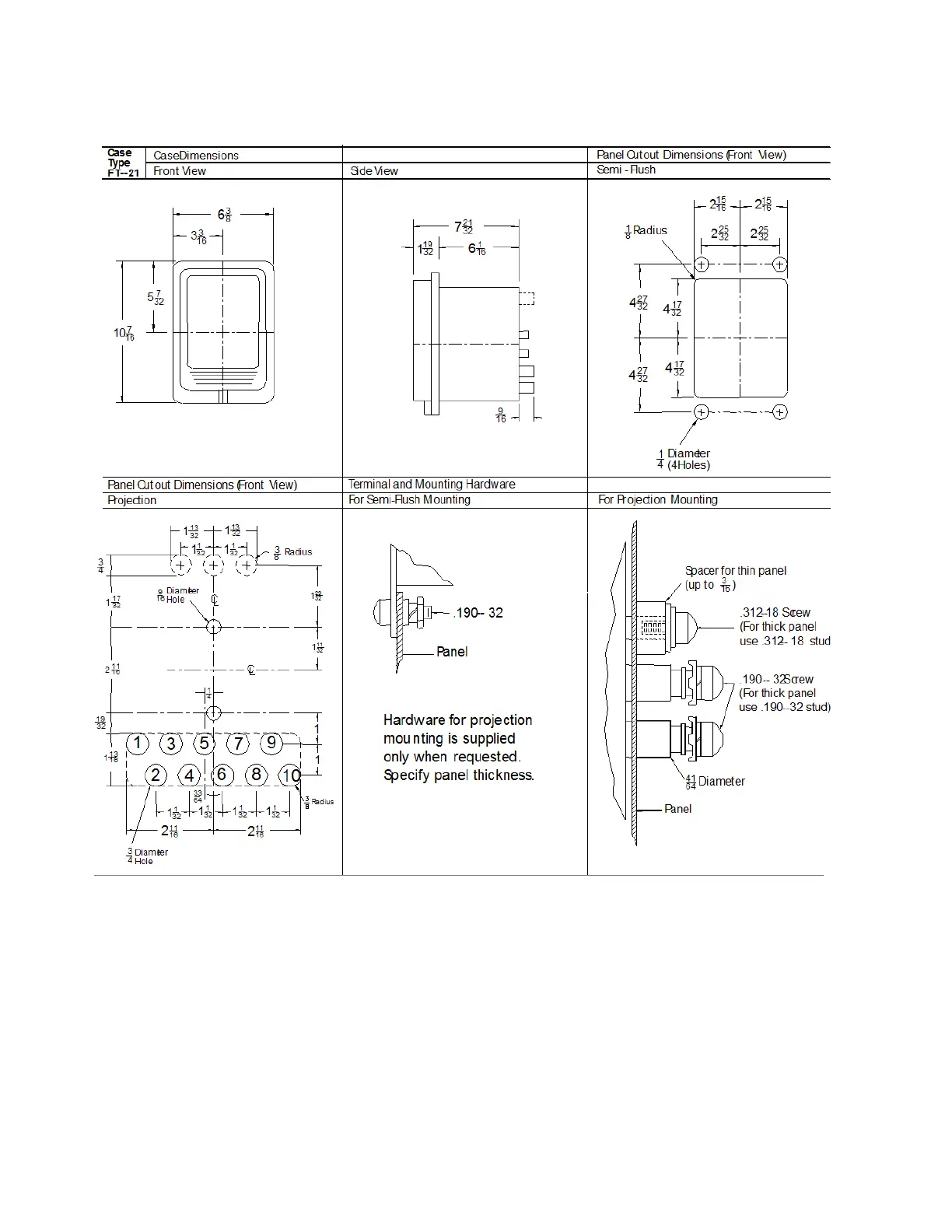

Figure 1. FT-21 case and mounting
Interface Connections
It is the user's responsibility to apply the correct interface connectors, wired properly, to use the communications features supplied per the
figures listed in Table 1-1, Table 1-2, and Table 1-3.
Table 1-1, Table 1-2, and Table 1-3 are included for reference only and are to be used to identify the relay and communication options
supplied on a given meter and associate the meter with the particular figures that indicate the terminal block number for the output
signals.
Approximate Unit Weight: 10 lbs. (4.6 Kg) Approximate Shipping Weight: 12 lbs (5.6 Kg)
