Elster SR113 - Pressure Spring

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

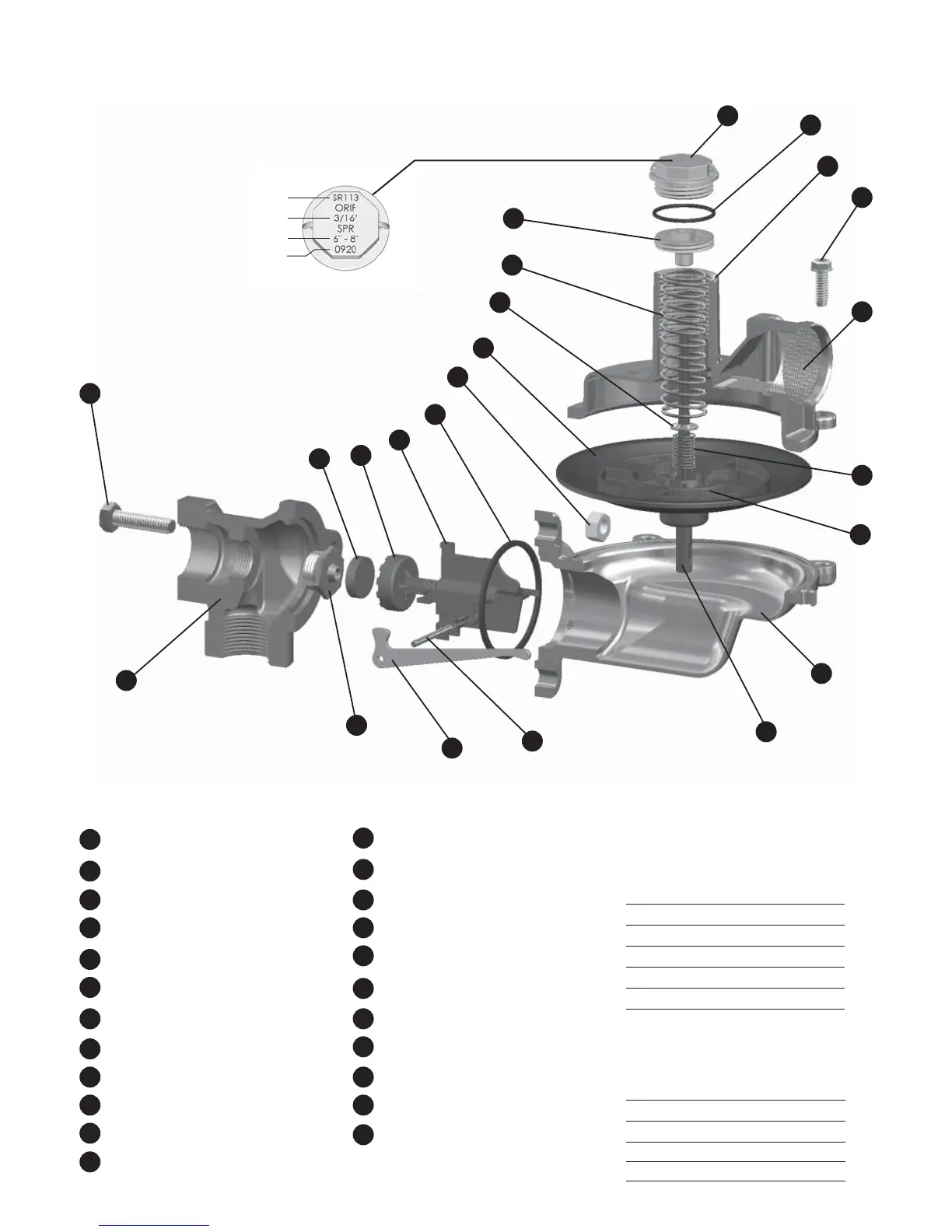

Figure 1
23
Model
Orifice Size
Spring Range
Date Code
Yr/Wk Mfg.
Disc, Valve Seat
Seal Ring, Valve Body
Diaphragm
Screw, Diaphragm Case
Bolt, Valve Body
Spring, Pressure (Table 1)
Valve, Orifice (Table 2)
Diaphragm Case
Screw, Pressure Adjustment
Stem, Relief Valve
Retainer, Relief Valve Spring
Lever
Pin, Lever
Plug, Seal
Spring, Relief Valve
Guide, Valve Plunger
Plunger, Valve
Assembly, Top
Valve, Body
Plate, Diaphragm
Screen, Vent
Gasket, Seal Plug
Nut, Valve Body
7
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
Pressure Spring
Table 1
Table 2
Orifice
SR100 Series Service Regulators 03 Elster American Meter
Outlet
Pressure
Color
Code
Part
Number
6" to 8" W.C.
Blue/Yellow 70017P138
7" to 12" W.C.
Blue/Red 70017P139
13" to 16" W.C.
Blue/White 70017P140
21" to 35 W.C.
Blue/Orange 70017P141
2 PSIG
White 70017P060
Orifice Size
Standard
Part Number
5/16" 72494P022
1/4" 72494P021
3/16" 72494P020
1/8" x 3/16" 72494P030
