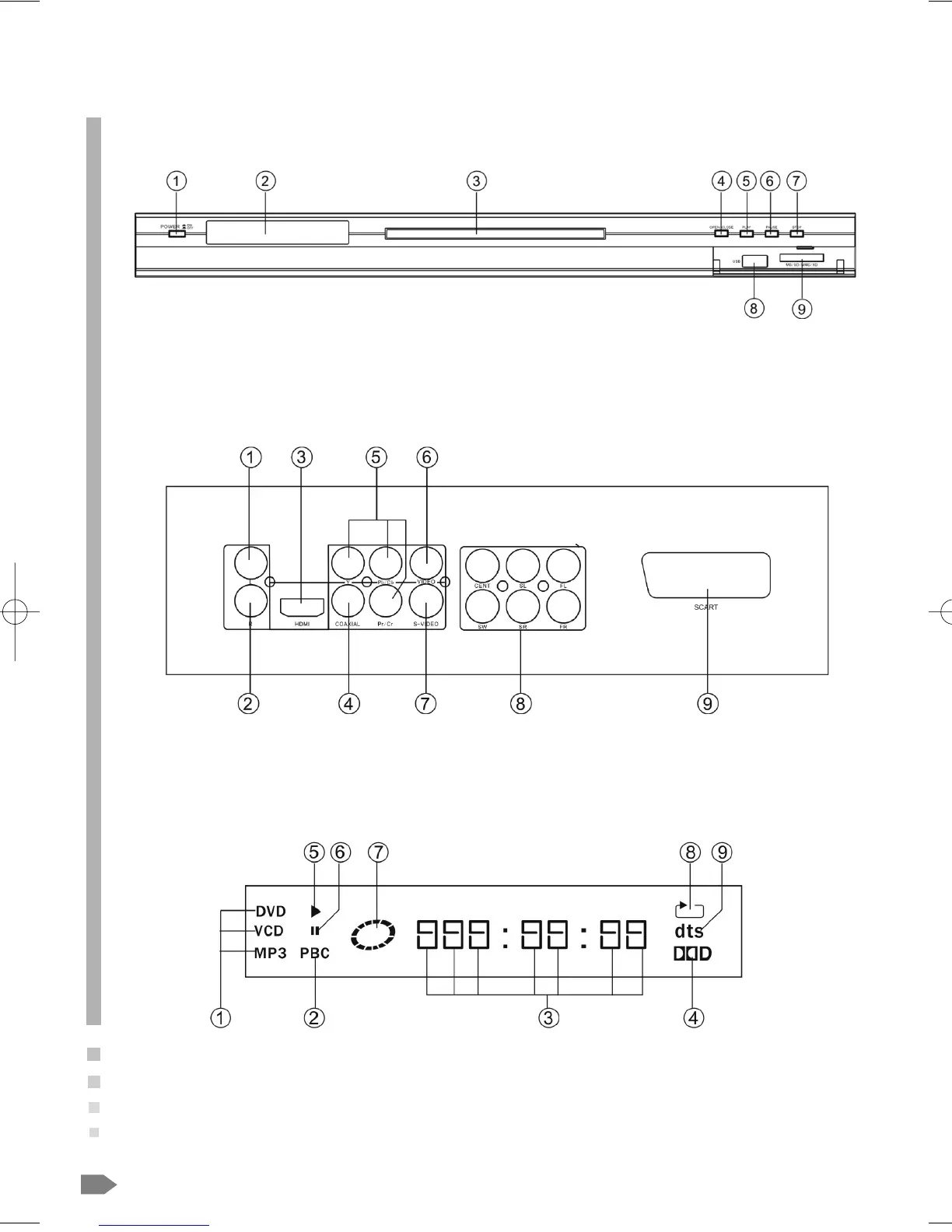

2. FRONT PANEL AND REAR PANEL ILLUSTRATION
Front panel
1. Power 4. Open/Close 7. STOP
2. LED Screen 5. Play 8. USB Card Reader
3. Disc Tray 6. Pause 9. 4 in 1 Card Reader
Rear panel
1. Downmix Left 4. Coaxial Output 7. S-video Output
2. Downmix Right 5. Component Video Output 8. 5.1 Channel Audio Output
3. HDMI Output 6. Composite Video Output 9. Scart Output
LED Illustration
1. DVD/VCD/MP3 disc indication 4. Dolby indication 7. Disc reading indication
2. PBC indication 5. Play indication 8. Repeat indication
3. Chapter-Time indication 6. Pause indication 9. DTS indication
