18 User Manual THEIA HE-t String Inverters 357115.013, Issue 1.0, 2011 March
4.2.1. Wall Bracket
Depending on the mounting surface, different mounting methods may be required to secure
the wall bracket. The system installer is responsible for selecting the correct type and number
of fixings suitable to support the weight of the inverter on the mounting surface.
• The bracket is designed to support 80 kg / 176.4 lbs.
• The inverter must be mounted in a vertical position!
• Mount the inverter in compliance with the minimum distances to ensure optimum cooling
(See 3.2.1. Mounting). This is important with several inverters installed!

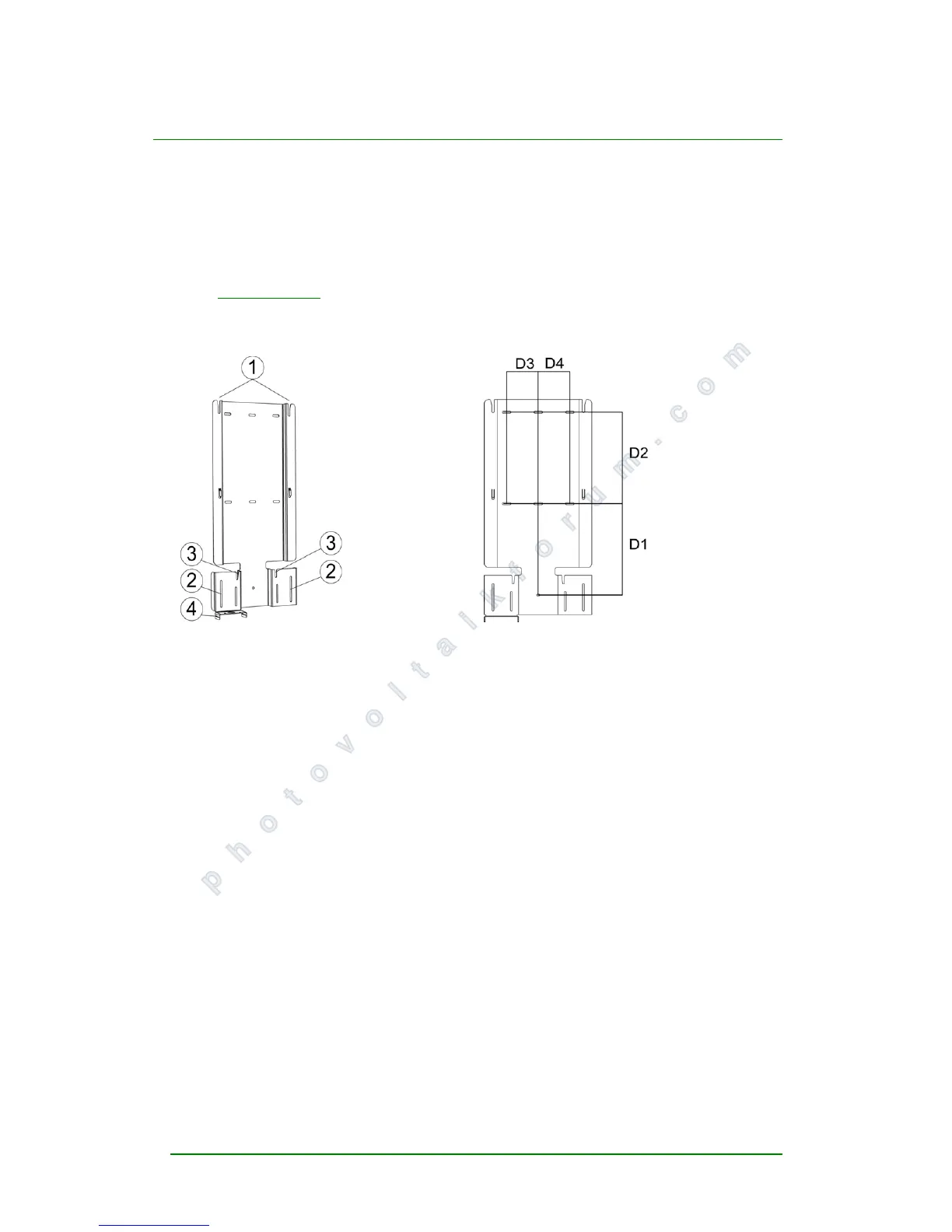

Figure 4.2.1: Inverter
bracket
1.
Carrier slots for
the inverter
2.
Steering slots for
the inverter
3.
Carrier slots for
the stringbox
4.
Fixing clip
Figure 4.2.2: Distances
between the fixing screws
D1.
232.5 mm / 9.2 inches
D2.
232.5 mm / 9.2 inches
D3.
75 mm / 2.95 inches
D4.
75 mm / 2.95 inches
Mounting
• Mark the mounting holes on the mounting surface using the bracket as a template and a
spirit level.
• The mounting bracket should be fastened to the studs of a dry wall or to a concrete/masonry
wall.
• Drill the holes and fasten the bracket with the number of screws required to support the
hanging weight of the inverter.
• Recommended height for the customer onnection area: 1000 - 1400 mm / 39.4 - 55.1 inches
above floor level.
