2.4.4. Scope of Delivery
• THEIA HE-t single phase inverter
• Mounting bracket with lock clip
• Installation Guide
• Accessories: grounding strap
NOTICE!
The mating parts of the connectors are not part of the standard scope of supply, and must be
provided by the system installer.
2.4.5. Inverter Structure
The housing of the THEIA HE-t inverter is designed to:
• IP 65/NEMA 4X for indoor or outdoor use
• Provide a degree of protection from dirt, rain, sleet, snow, dust, water, and corrosion
• Be undamaged by the external formation of ice on the housing.
The inverter has the following dimensions:

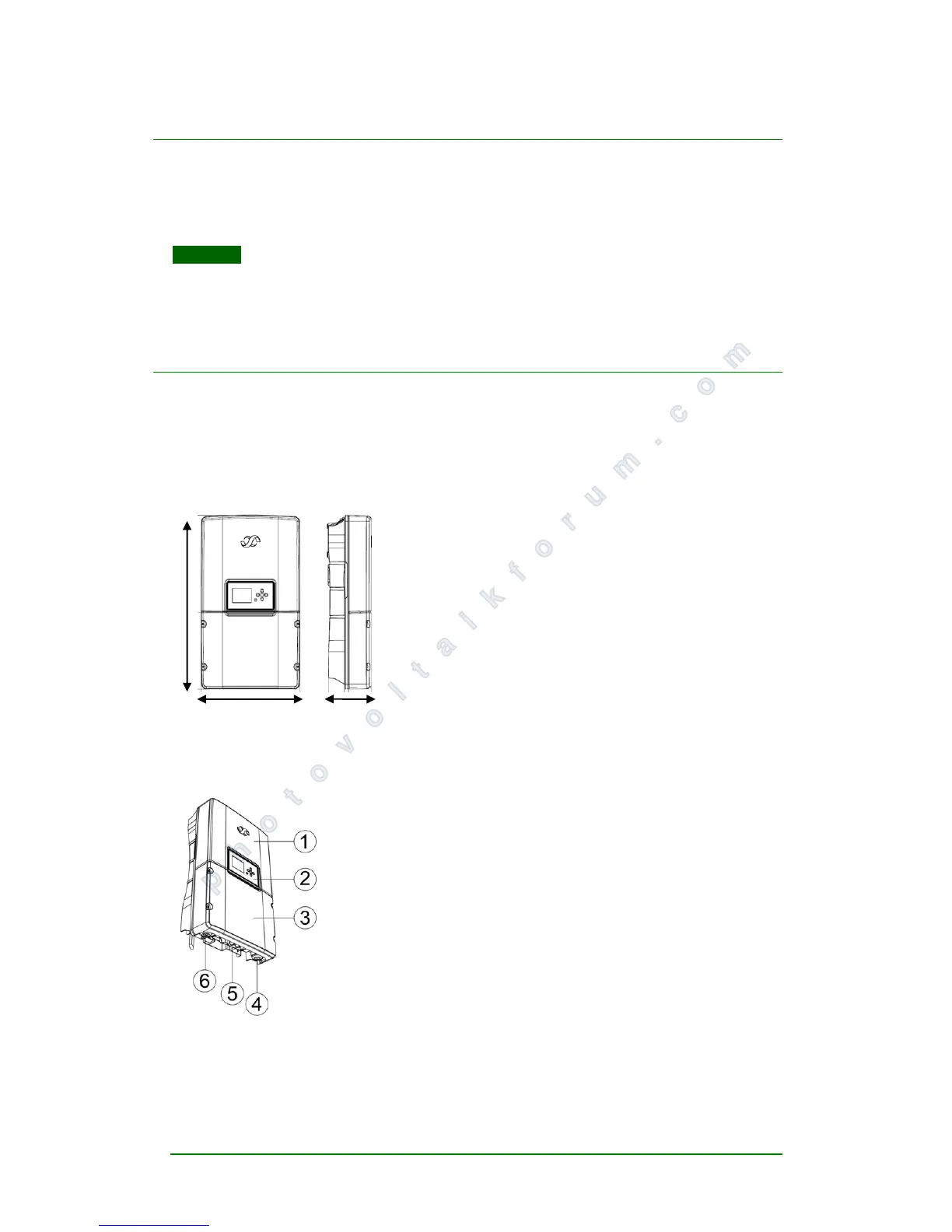

Figure 2.4.3: Mechanical dimensions
H: 610 mm / 24.0 inches
W: 353 mm / 13.9 inches
D: 158 mm / 6.2 inches
The front surface of the inverter consists of an upper and a lower cover.
Figure 2.4.4: Inverter structure
1. Upper cover
2. Display
3. Lower cover; customer connection area
4. AC output
5. DC input
6. Network input
