20 User Manual THEIA HE-t String Inverters 357115.013, Issue 1.0, 2011 March

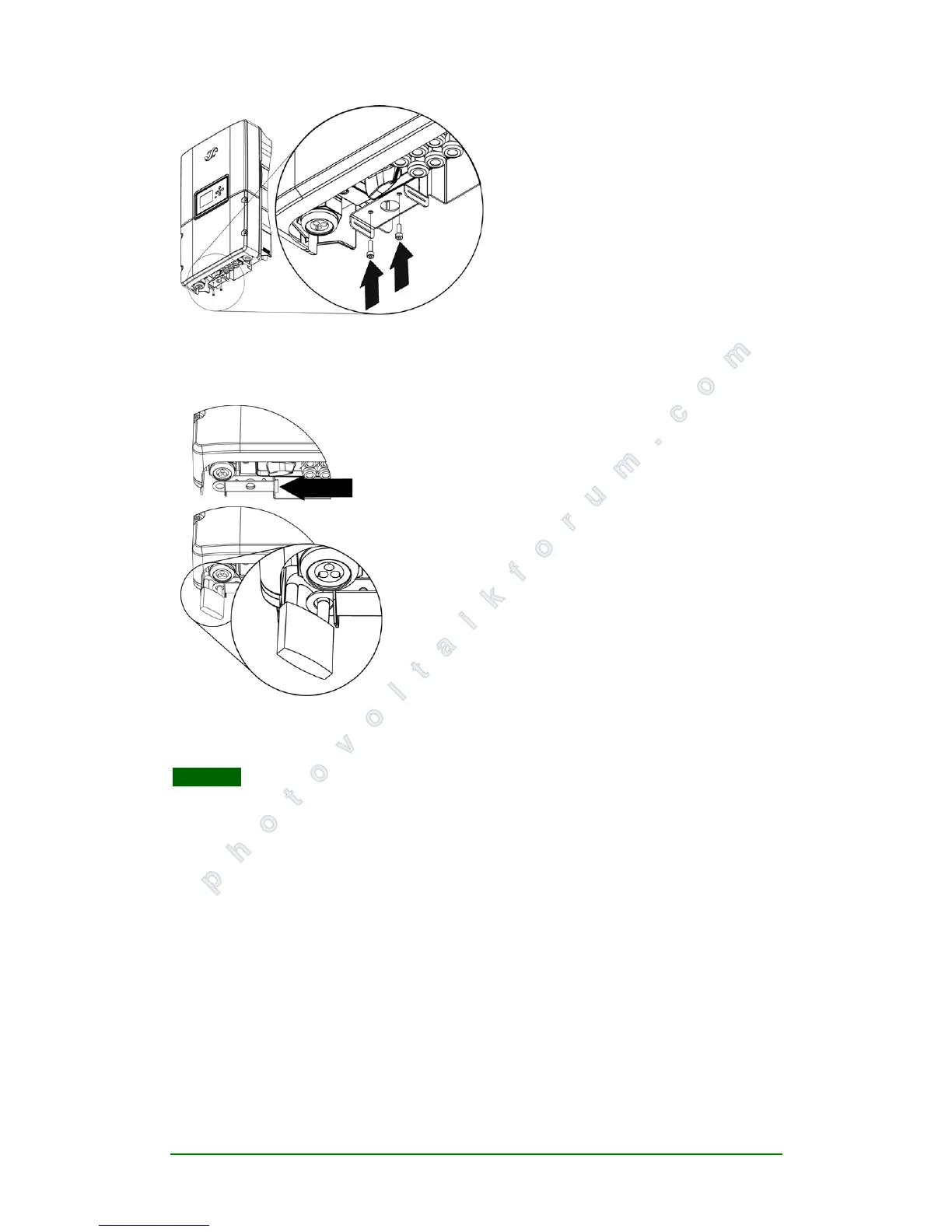

Figure 4.2.5: Screws through the fixing clip
Figure 4.2.6: Theft protection
Ensure that the inverter is securely aligned
in the bracket rails.
Using a 3 mm hex key, tighten the fixing
clip with one screw in the inverter and one
in the stringbox (if present).
Recommended torque is 1.0 Nm / 0.74 ft-
lbf.
For theft protection: guide the lock clip
through the fixing clip, and fasten with a
padlock.
The padlock is not a part of the scope of
supply.
NOTICE!
Check that the inverter is properly fastened and secured to the bracket prior to the electrical
wiring.
