12 BA-en-2014-2006_ES51
3.3 Selecting the discharging bar
Eltex discharging bars and ion blowers for AC operation can be connected
to the ES51 power supplies.
3.4 Connecting the high voltage cable
Warning!
Connect or disconnect the high voltage cables only with the power supply
switched off!
Connect the discharging bars to the power supply using the prefabricated
high voltage cable. Push the high voltage cables into the sockets up to the
stop. Then secure the adapter in the socket with the clip provided (see
Fig. 3).
Cables without adapter carry a coloured marking on the flexible tubing.
This marking must lie flush with the outside edge of the coupling. Cables
without flexible tube and cables with plug-type adapters are plugged in
flush and secured with the clip.
Warning!
In applications involving moving bars (e.g. film draw strips), the high volt-
age cable must be attached such that there is no cable movement near
the connection zone of the power supply unit.

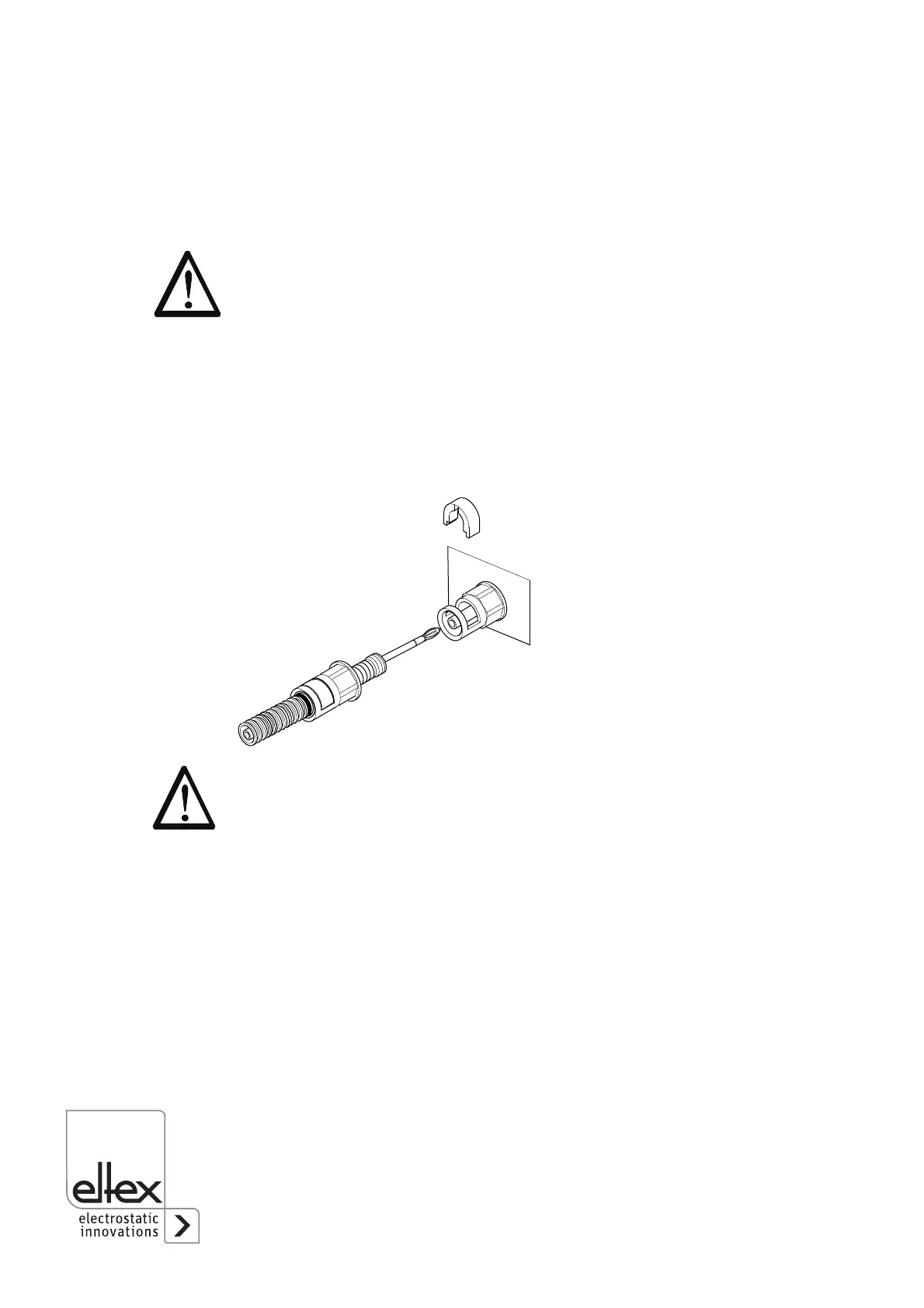

Fig. 3:
Connecting the
high voltage cable
Z00178y
