4
70 mm
115 mm
115 mm
5
8.3
FUNCTIONAL DESCRIPTION & TECHNICAL DATA
TECHNICAL DATA
Nominal voltage 90…260 VAC, 50/60 Hz
Power consumption max. 5 W
Relays K1 (depending on the socket type)
ELTC/H1-14 10A res./ max 250 VAC
ELTC/H2-14 16A res./ max 250 VAC
ELTC/H3-14 20A res./ max 250 VAC
Relay K2 (alarm) 8A res. / max. 250 VAC (changeover contact)
Operating temperature -25 to +55°C
Storage temperature -30 to +60°C
Setting range 0 to +390°C, congurable
Display range -50 to +400°C
Accuracy ± 1K, ± 2 Digits (-50 to 400°C)
Display LED, red, 11mm
Sensor connection Pt100 2-wire & Pt100 3-wire
Connection terminals
Sensor: 0.2...1.5mm² copper wire, stripping length 9...10mm
Others: 0.1...2.5mm² copper solid, stripping length 5...6mm
Housing material Polycarbonate, gray, clear lid
Housing dimension 130 x 130 x75 mm (WxHxD)
Connection cable
ELTC/H1-14 & ELTC/H2-14:
3,0m, H07RN-F 3G1,5mm² with schuko plug
ELTC/H3-14:
3,0m, H07RN-F 3G2,5mm² without plug with ferrules
Protection class IP 65
Type of mounting Wall mounting
Weight approx. 0,6 kg

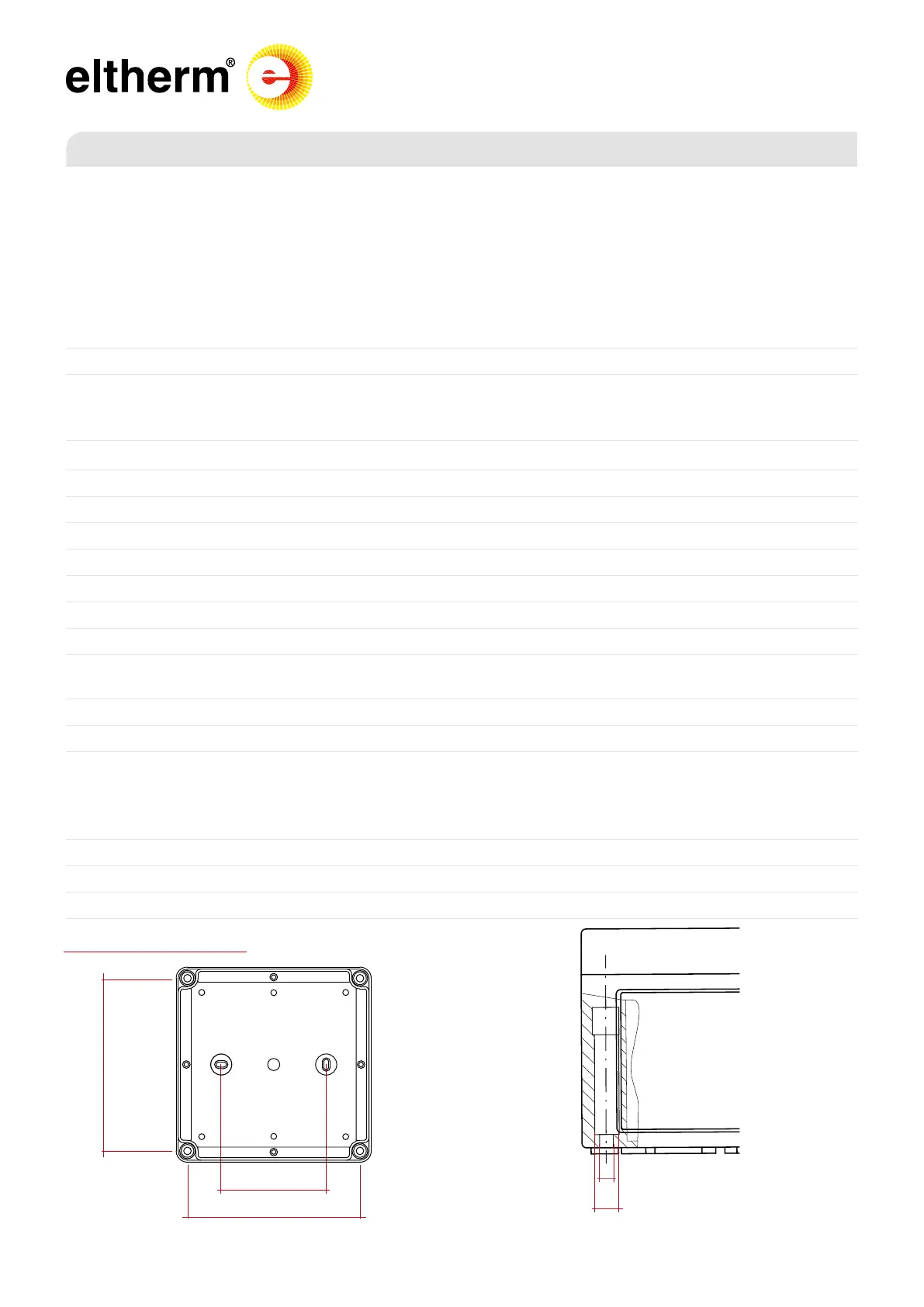

Drilling pattern all variants
FUNCTIONAL DESCRIPTION
If the actual value (P01) falls below the setpoint (P10 minus hysteresis P11), relay K1 switches the heating on. The integrated
alarm relay enables error messages via a changeover contact in case of over / under temperature, sensor interruption or sensor
short circuit. In the event of sensor errors, relay K1 switches the heating line off or on, depending on the configuration of the
controller.
