eltherm ELTC/H-14 User Manual

6
ELTC/H1-14
7-polig / 7-pole
1 2 5 6 PE
1 2 5 6
PE
bn
bl
rd
gnye
3
3
4
4
rd
ELTC/H2-14
3-& 4-polig/3-& 4-pole
1 2 3 PE
1 2 3
PE
1
1
2
2
3
3
bn
bl
rd
gnye
rd

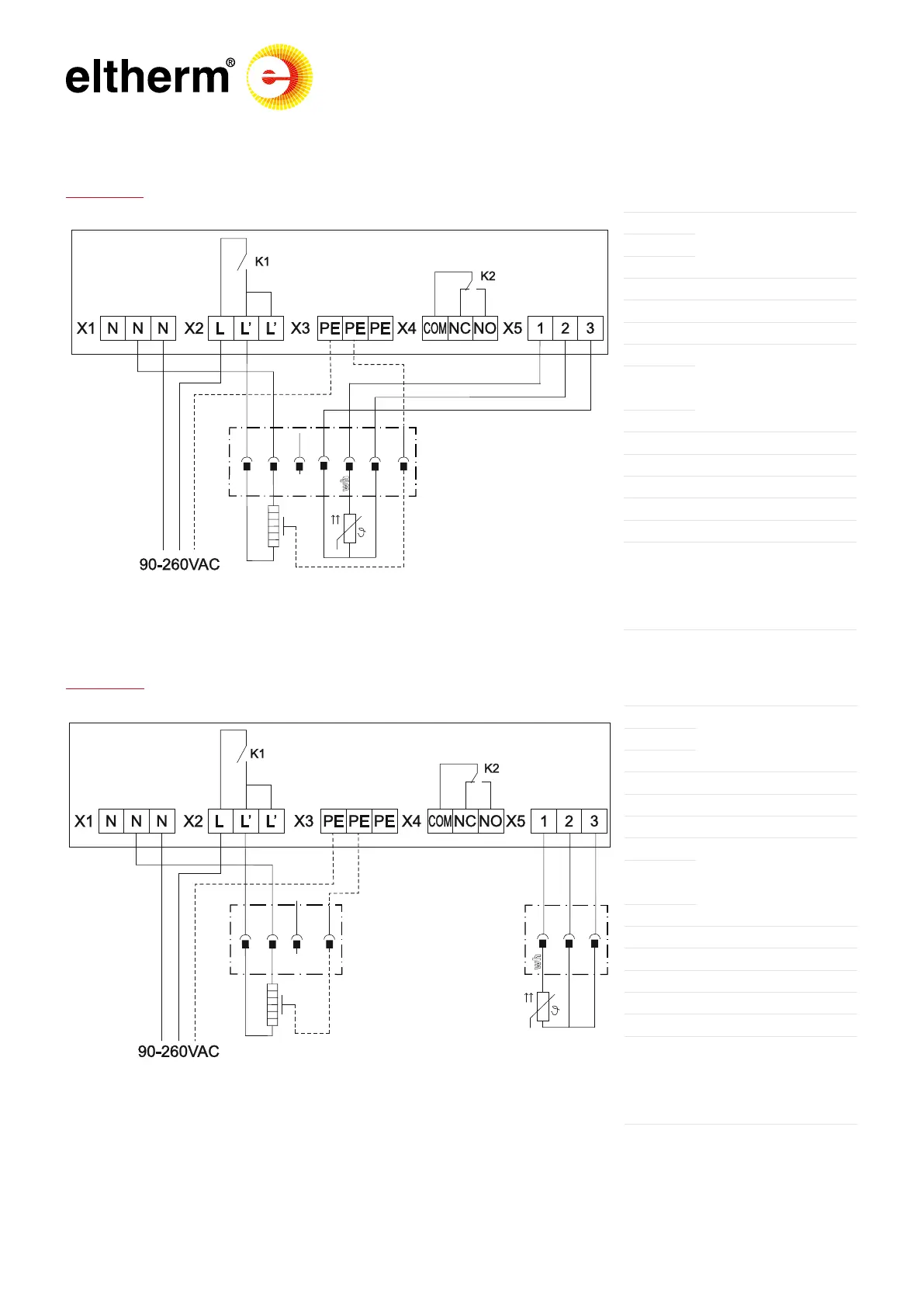

CONNECTION PLAN
ELTC/H1-14
ELTC/H2-14
Terminal Connection
X1.1
X1.2 connection neutral (N)
X1.3
X2.1 Mains supply input (L)
X2.2 Heater connection A
X2.3 Heater connection B
X3.1
X3.2
connection
protective earth (PE)
X3.3
X4.1 Alarm relay COM
X4.2 Alarm relay NC
X4.3 Alarm relay NO
X5.1 Connection Pt100 (white)
X5.2 Connection Pt100 (red)
X5.3
Connection Pt100
3-wire compensation
(not necessary with
2-wire)
Terminal Connection
X1.1
X1.2 connection neutral (N)
X1.3
X2.1 Mains supply input (L)
X2.2 Heater connection A
X2.3 Heater connection B
X3.1
X3.2
connection
protective earth (PE)
X3.3
X4.1 Alarm relay COM
X4.2 Alarm relay NC
X4.3 Alarm relay NO
X5.1 Connection Pt100 (white)
X5.2 Connection Pt100 (red)
X5.3
Connection Pt100
3-wire compensation
(not necessary with
2-wire)
