The actuator can freely be mounted both vertically standing or horizontally lying
to the side. An upside-down hanging position should be avoided.

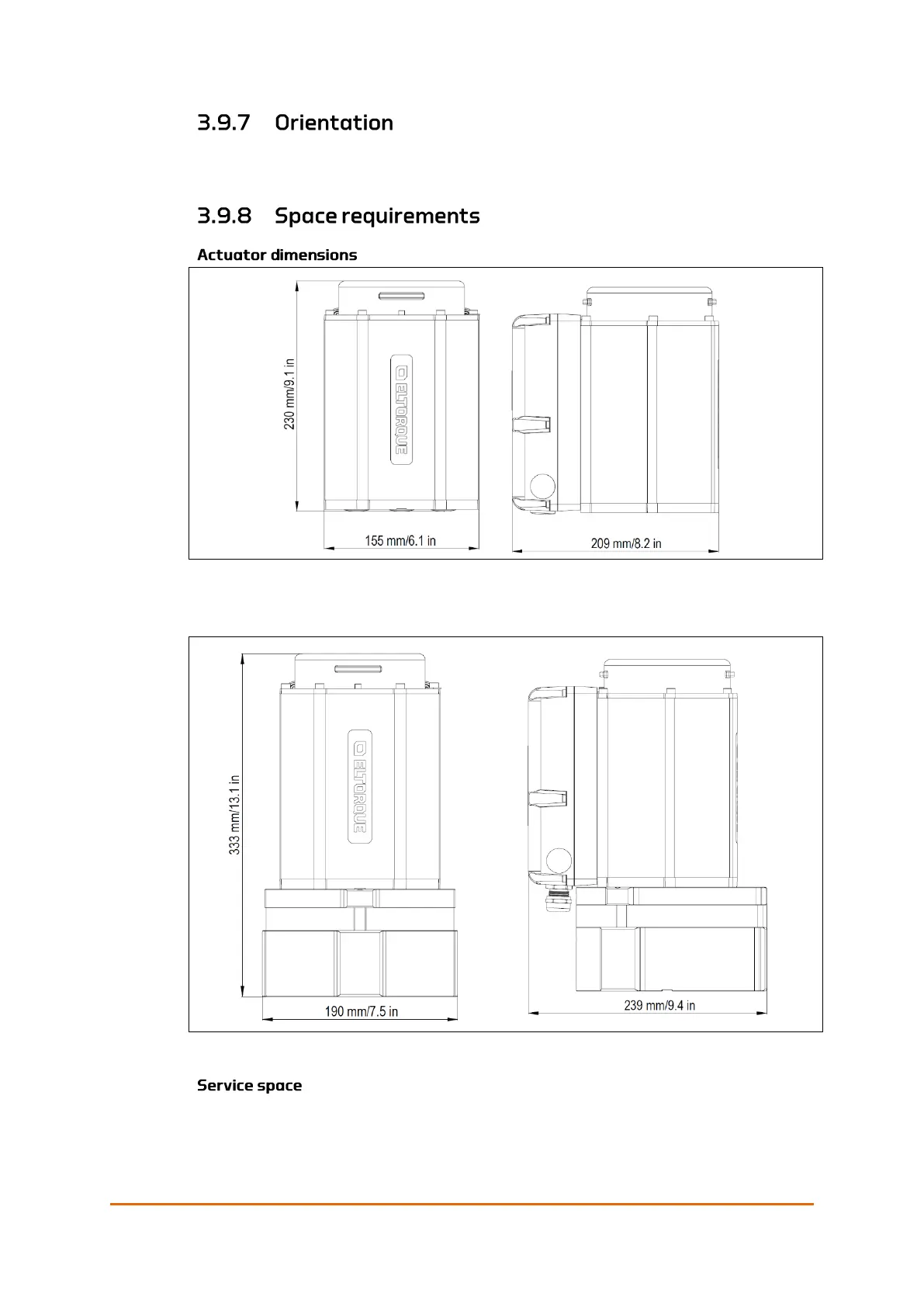

Figure 12: QT250 dimensions
Figure 13: QT800 dimensions
During planning, please ensure sufficient space above and around the actuator
for installation, service and manual operation.
