• Be sure to allow sufficient length striped cable.
• Pass the cable through the cable gland and ensure that the cable is correctly
positioned in the gland. Eltorque recommends having a 5mm cable edge
over the end of the gland.
• Hold the body of the gland in position with a spanner (24mm / 0.94 in.) or
wrench to prevent rotation and tighten the back-nut to min 5Nm, maximum
15Nm.
• Finalize the gland installation with a visual verification to ensure correct
positioning of all parts.
• For other glands follow the instructions from the supplier.

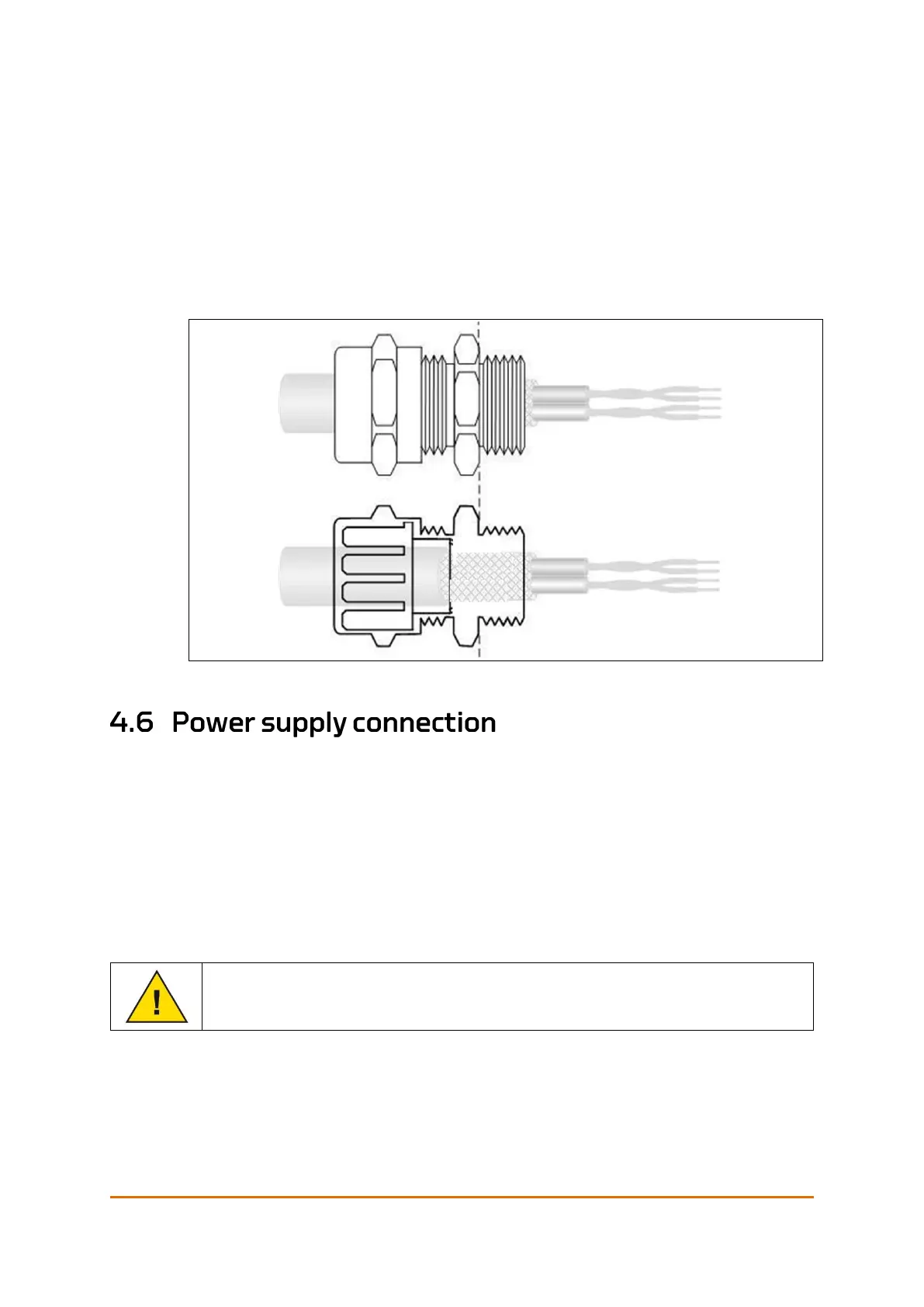

Figure 23: Mounting of cable gland
Note! Connection of the power supply is identical for all types of communication
interface box for QT250 and QT800 actuators.
Each actuator has a double power supply connector enabling bus power
connection of multiple actuators. Verify that the voltage levels are in accordance
to the products requirements.
All terminals can accommodate:
• Fine-stranded conductor
0.25 … 2.5 mm²/0.0098 - 0.0984 in
2
.
