Mounting and Installation
Page 38 of 86
User Manual QT250 and QT800, ID 2021 2.0 July 2018

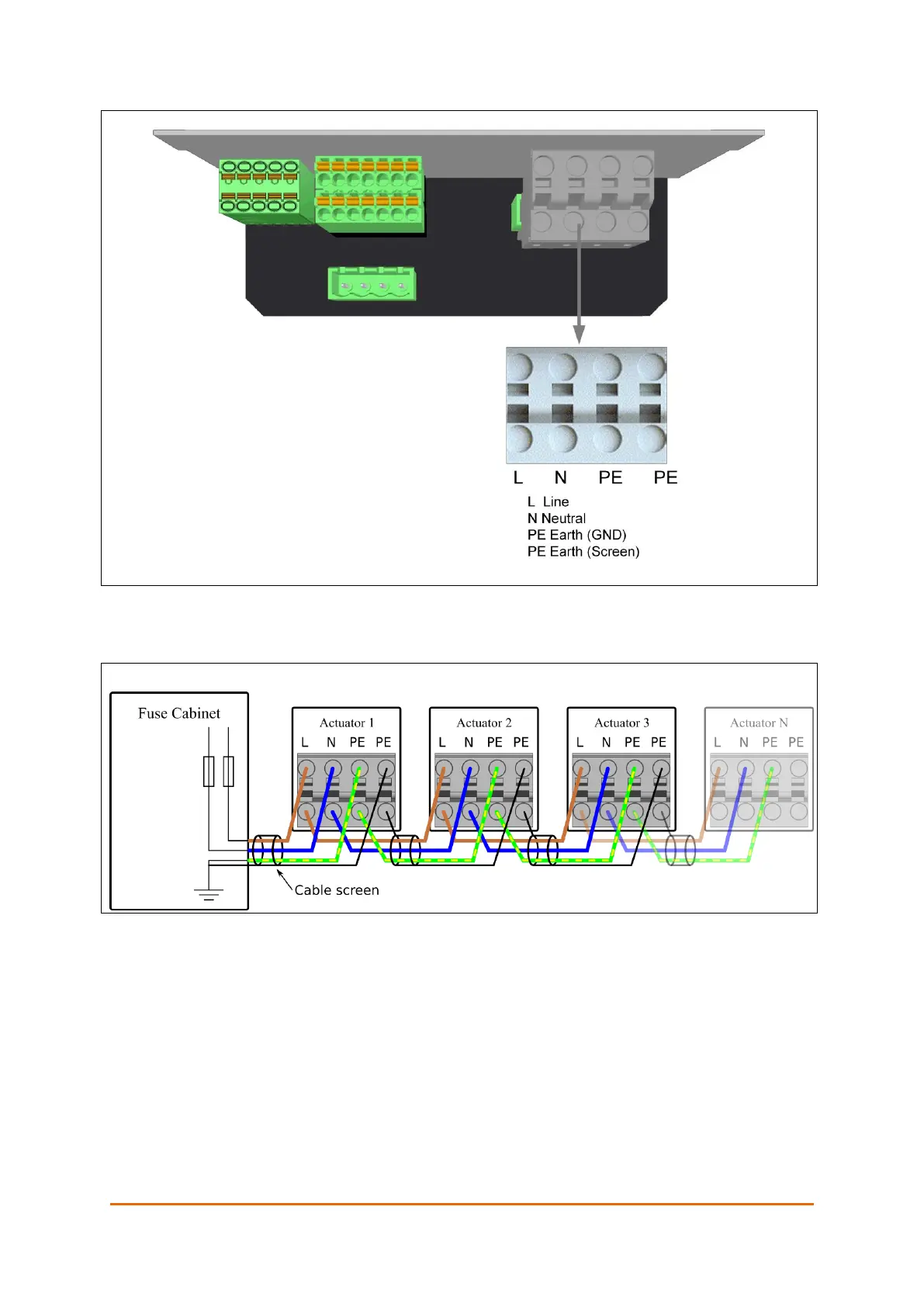

Figure 24: Power supply connection QT250 and QT800
Figure 25: Multiple actuators with bus power connection
Refer to Appendix D Earthing Methods in Maritime Installations on page 83 for
information on connection of screen for the last actuator in the loop (actuator N).
