Eltorque QT Series - Page 40

Mounting and Installation
Page 40 of 86
User Manual QT250 and QT800, ID 2021 2.0 July 2018

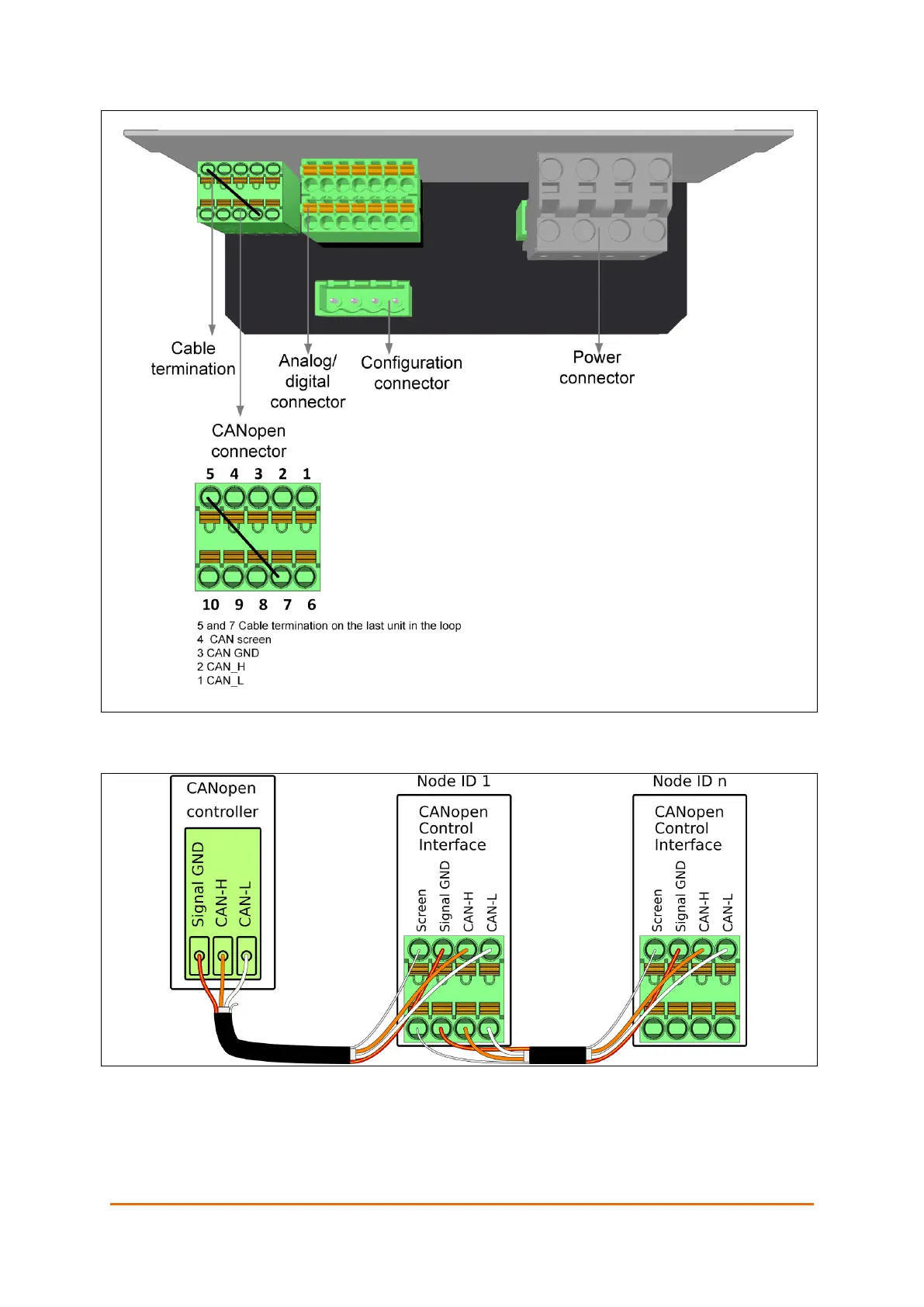

Figure 26: CANopen connection interface terminals
Figure 27: Example of CANopen network connections
