Failsafe Option
User Manual QT250 and QT800, ID 2021 2.0 July 2018
Page 79 of 86
For spare parts, not in the list below, please contact your local Eltorque
representative.
Eltorque can deliver SDoc, MD and AFD. With reference to IMO Resolution MEPC
269(68), SOLAS Reg. II-/3-5 and IACS SC 249or latest valid Revision..

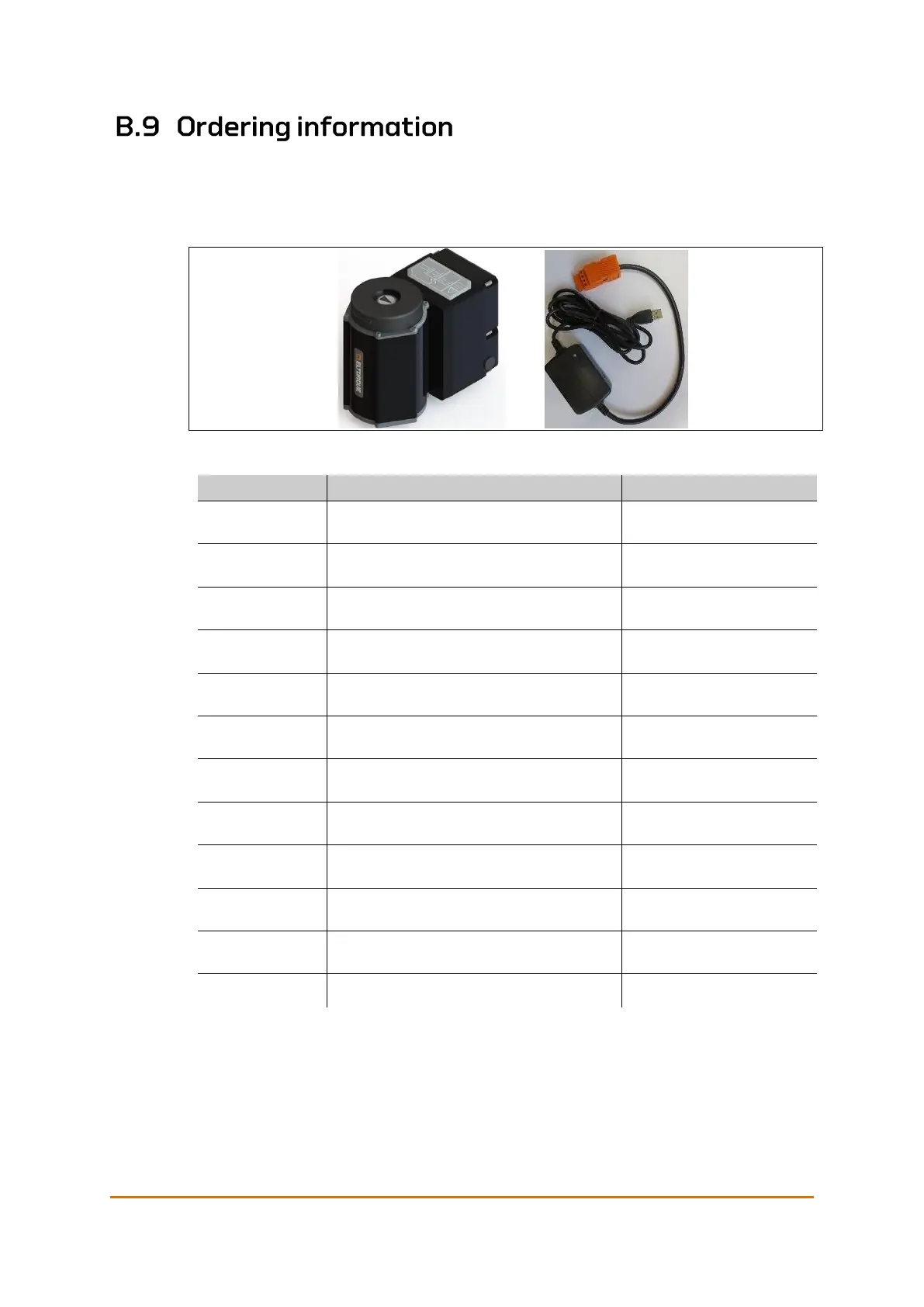

Figure 47: Actuator with embedded Failsafe UPS unit.
Part No.
Description
Comment (text in BOM)
250.120.5B
QT250 2.5 CANopen Actuator with
Failsafe option
1
QT250 2.5 CANopen FS
Actuator
250.120.BH
QT250 2.5 CANopen Actuator with
Failsafe option for Hybrid Marine Cable
2
QT250 2.5 CANopen FS
Actuator
250.220.5B
QT250 Failsafe battery unit
QT250 2.5 CANopen FS
Module
800.120.5B
QT800 2.5 CANopen Actuator with
Failsafe option
1
QT800 2.5 CANopen FS
Actuator
800.120.BH
QT800 2.5 CANopen Actuator with
Failsafe option for Hybrid Marine Cable
2
QT800 2.5 CANopen FS
Actuator
250.120.5R2
QT250 2.5 Dual CAN and Failsafe
Actuator
1
QT250 2.x Dual CANopen
and Failsafe
250.120.5R2H
QT250 2.5 Dual CAN and Failsafe
Actuator for Hybrid Marine Cable
2
QT250 2.x Dual CANopen
and Failsafe
800.120.5R2
QT800 2.5 Dual CAN and Failsafe
Actuator
1
QT800 2.x Dual CANopen
and Failsafe
800.120.5R2H
QT800 2.5 Dual CAN and Failsafe
Actuator Hybrid Marine Cable
2
QT800 2.x Dual CANopen
and Failsafe
800.220.5B
QT800 Failsafe battery unit
QT250 2.5 CANopen FS
Module
900.001
Eltorque Configuration cable for QT-
series actuators
Config. Cable QT-series
17023982
Battery for Failsafe module
Battery 12V, 9Ah lead,
NS12-9G
1
with: 1blind cable gland, IP68, Non-EMC, RoHS
+ 4 standard Eltorque cable glands. Nickel plated brass, IP68, Non-EMC, RoHS. Clamping
range 8 – 14mm/0.32- 0.55 in.
2
with 3blind cable glands, IP68, Non-EMC, RoHS
+ 2 standard Eltorque cable glands. Nickel plated brass. IP68, Non-EMC, RoHS. Clamping
range 8 – 14mm/0.32- 0.55 in.
