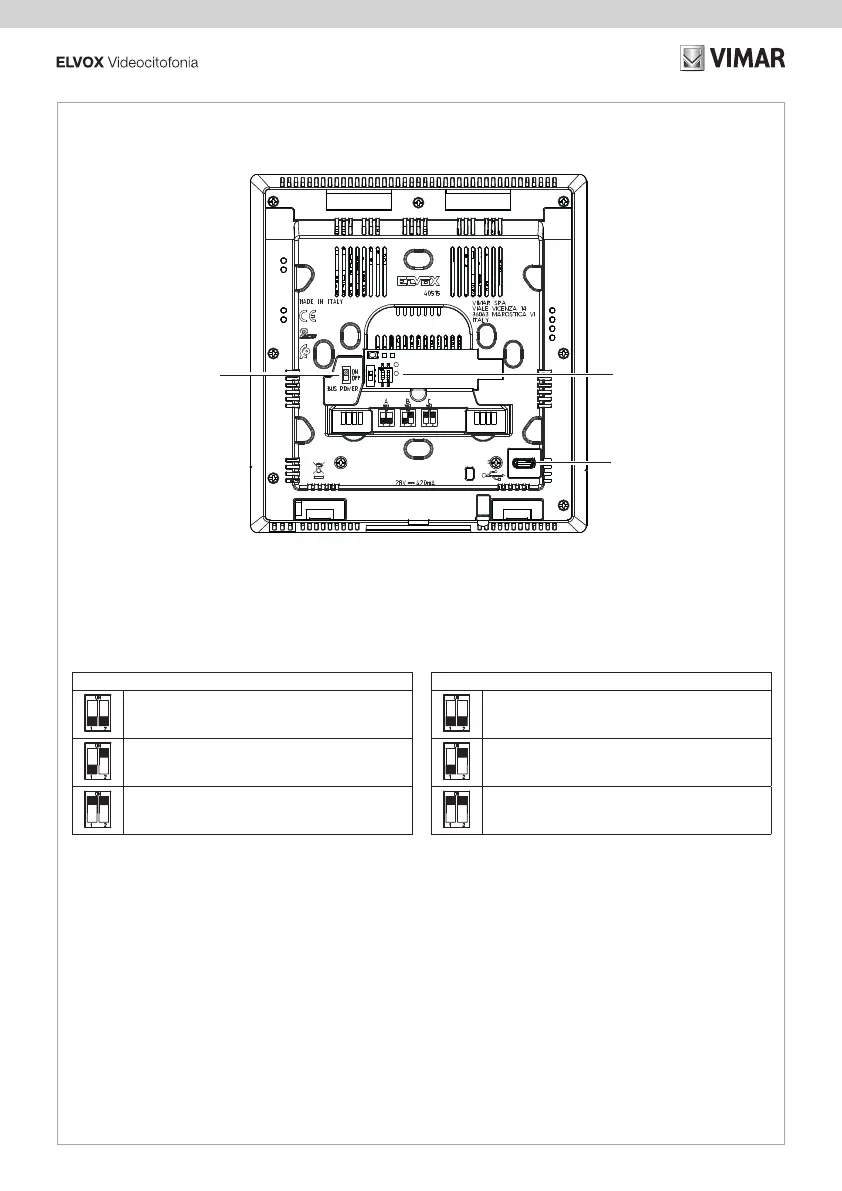

TABELLA SWITCH
A
un altro posto interno
B
il montante si ferma nel posto interno
C
morsetti 1, 2 ed il montante si ferma nel posto interno
3 - interfaccia di
1 -
OFF = Alimentazione tramite alimentatore supplementare
ON = Alimentazione tramite BUS.
2 -
SWITCH TABLE
A = the BUS cable enters terminals 1, 2 and continues to
another indoor station
B = The BUS cable with a characteristic impedance of
2 and the riser stops in the indoor station
C = The BUS cable with characteristic impedance of
terminals 1, 2 and the riser stops in the indoor station
3 - connection interface
the SaveProg software.
1 -
OFF = Power supply via additional power supply unit
ON = Power supply via BUS.
• Vista retro
• Rear view
• Face arrière
• Rückansicht
• Vista posterior
• Vista traseira
•
•
