EM Test ditoControl
Short form Introduction V 2.04 14 / 15

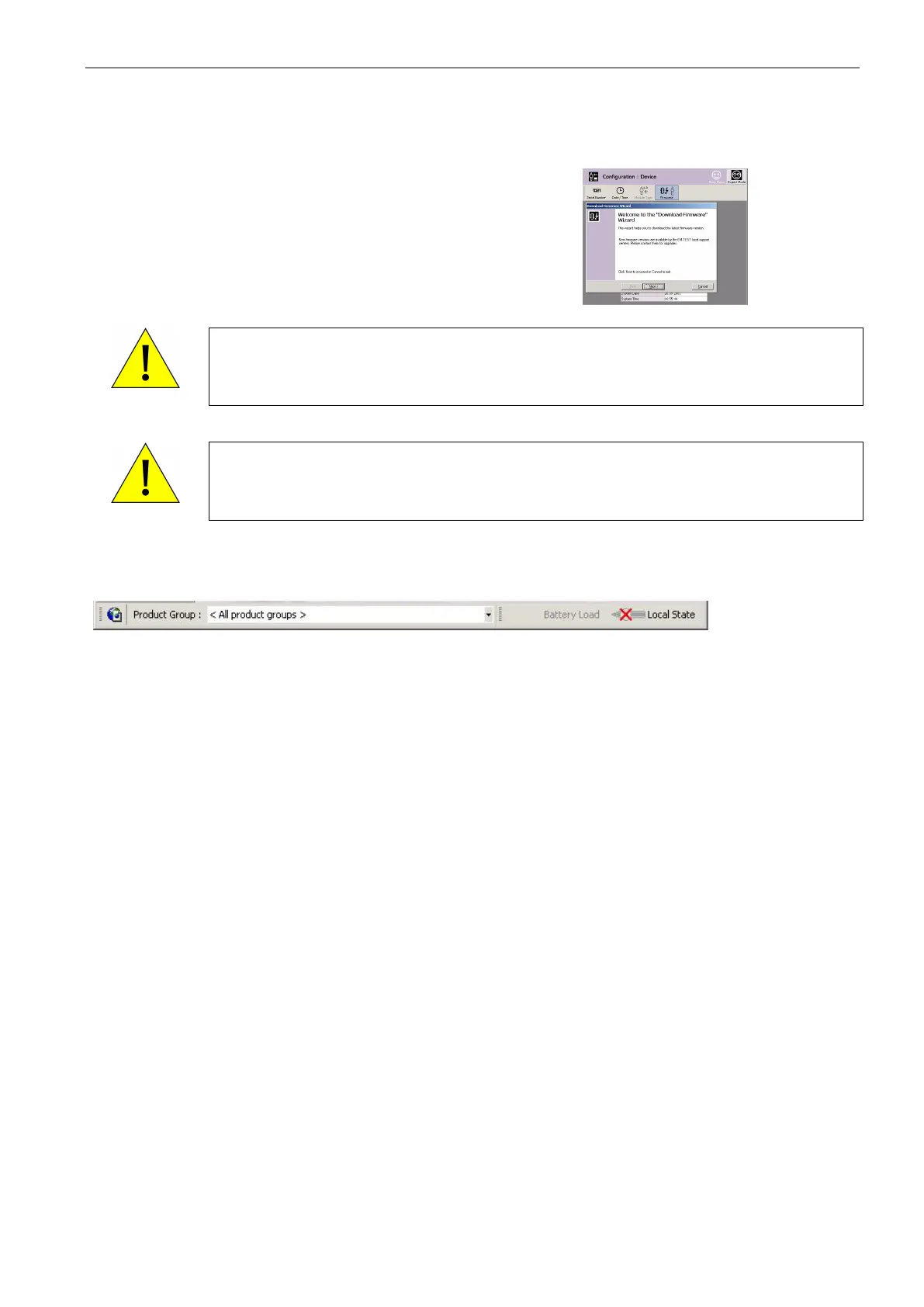

5.4 Download of dito firmware
New version of firmware can be easy downloaded with ditoControl.
For this select the menu <Configuration Device>
Firmware.
A wizard will guide you through the download.
All relevant points are described in the wizard.
WARNING
Download must be made with a RS232 Interface only. Using an USB to RS232 interface will
not deliver enough power to the optical link. Therefore the datatransfer will fail and dito will
not install the new firmware and can not be operated furthermore. The unit has to be send
back to factory or to the responsible sales office.
WARNING
Before operating the download check the battery condition of the dito simulator. At first the
installed firmware will be erased. In case that afterwards dito is switched off, the communica-
tion is interrupted or the battery charge gets too low, dito can not be operated furthermore.
The unit has to be send back to factory or to the responsible sales office.
5.5 Status bar
The functions in the status bar are :
Product Group
Selection of product groups which are used for generating test routines, test notes and test reports, and
also for the tripod test.
The product group determines the selectable standard area in the different wizards.
Battery Load
Indication of battery charge condition.
State of dito
Indication Local or Remote status of dito
