Noise ≤ 85 dB(A) measured at the height of the operator’s ear in the working position with the log splitter in operation
• The ears must be suitably protected (ear defenders).
• If the machinery is connected to a tractor, the noise it produces is negligible compared to the noise produced by the tractor.
2.1 - Right way to lift the machine
The machine must be lifted by means of a lifting hook with capacity bigger than 300 Kg. that must be fixed in the hitch point (13 in fig.1, page 2)
2.2 - Size of the logs to be split
Figure 2 on page 2 shows the maximum log sizes that can be split.
The diameter of the log is indicative: a small log can be difficult to split if it has knots or is of a particularly twisted fibre.

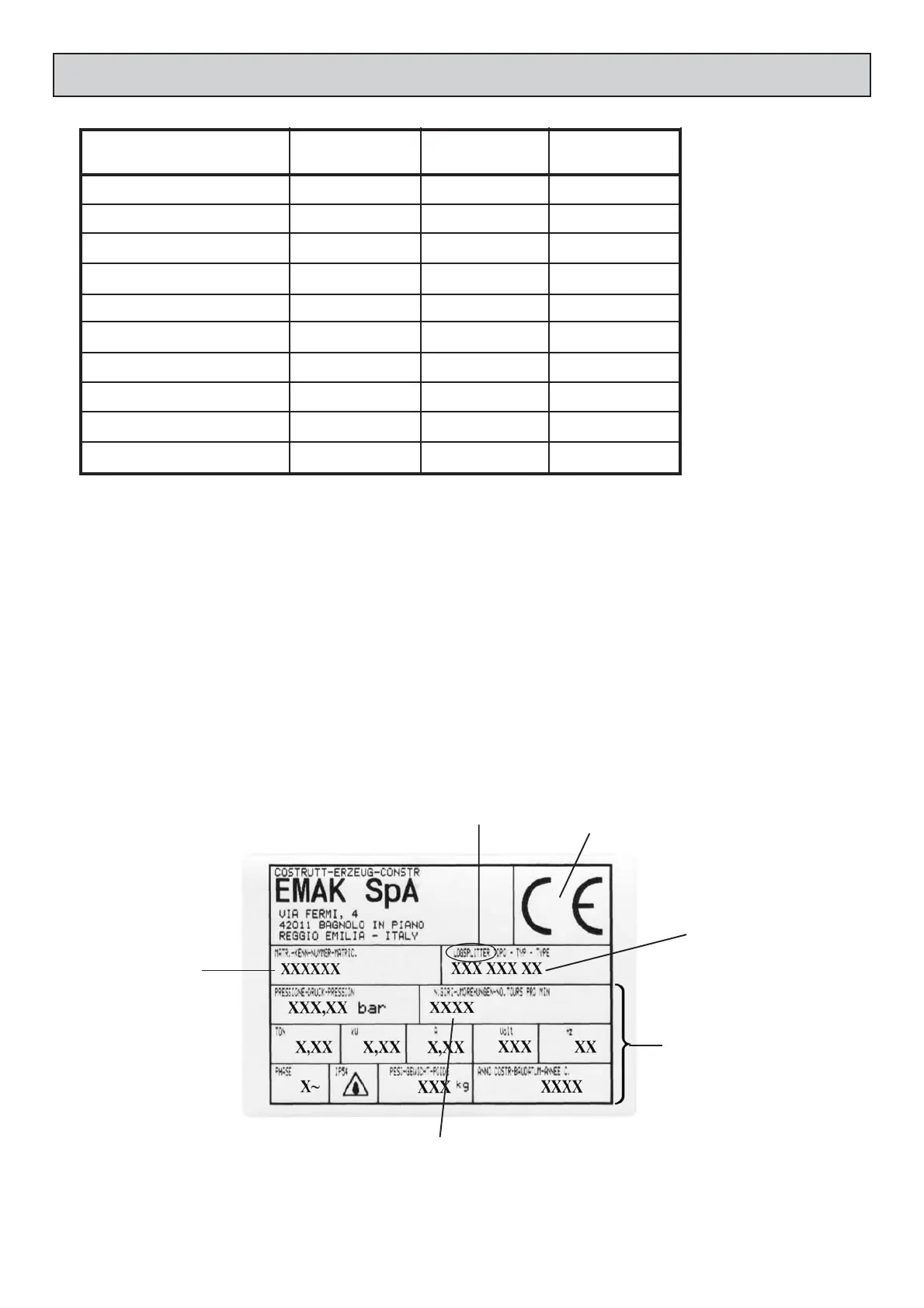

2.3 - Serial number label
2 - TECHNICAL DATA
ENGLISH
SPL 910 T SPL 910 SC SPL 910 PTO
PIVOTING PIVOTING VERTICAL
Lenght (mm) 950 1090 940
Widht (mm) 740 740 740
Height (mm) 2470 2470 2460
Weight (kg) 194 197 178
Max. force (tons.) 9 9 9
Log capacity (mm) 470 / 1070 470 / 1070 470 / 1070
Hydraulic oil total capacity (lt.) 13 13 13
Supply 400V 50Hz 3-phase Premium graded fuel Attach to cardanshaft
Absorption 7,4A —— ——
Power 4CV - 3kW 6,5CV - 4,8kW ——
Type of machine:
LOG SPLITTER
CE conformity
marking
Specifications
Machine brand
and model
Serial number
No.tours pro min
(electric motor / cardan shaft)
