EMC Celerra NX4

13
For more information, refer to Celerra Tools on http://Powerlink.EMC.com

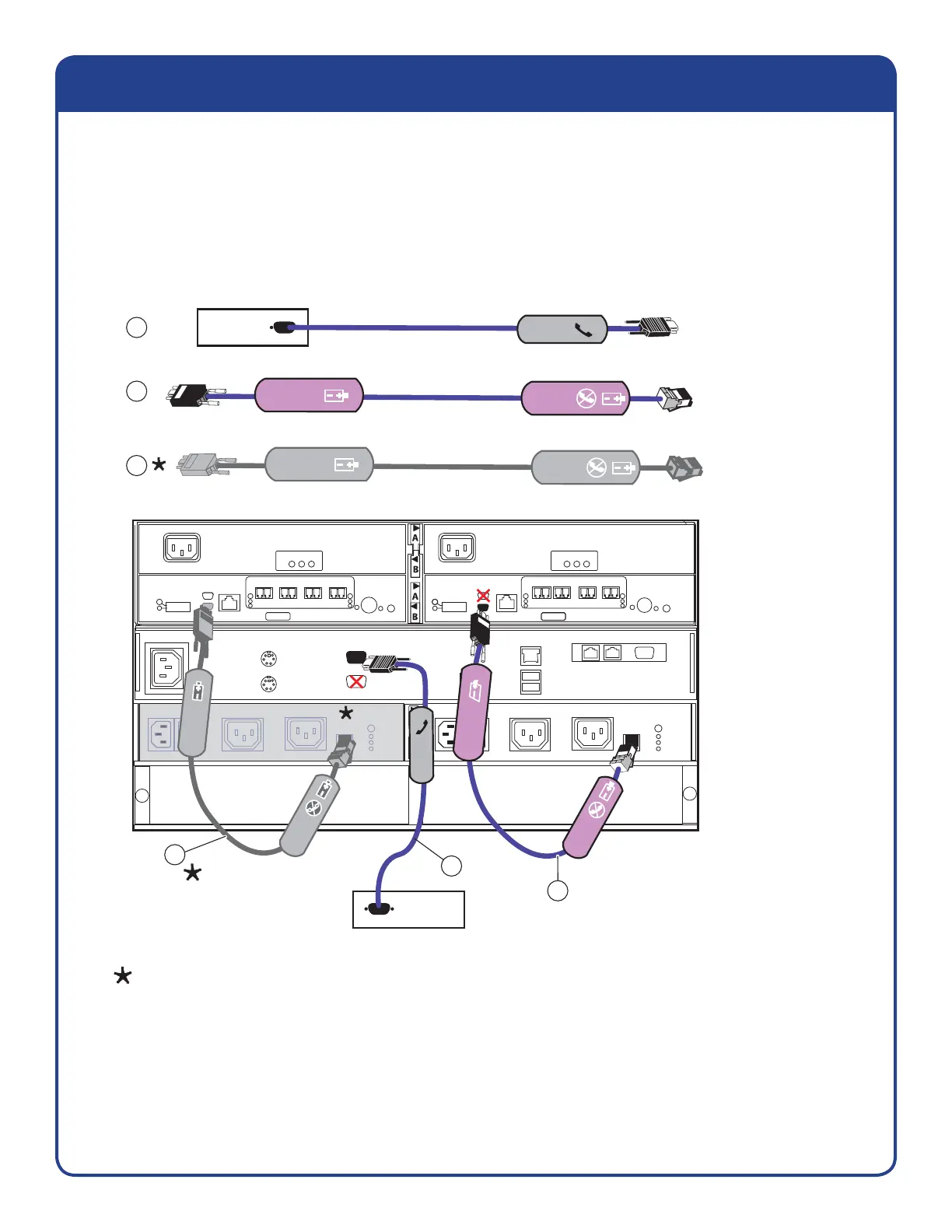

Cabling EMC Celerra NX4 system
Cable the Celerra NX4 standby power supply (SPS) and MODEM ports.
SPS A
SP A
Control Station (CS)
Standby power
supply (SPS)
Blade enclosure
CNS-001416
Disk processor
enclosure (DPE)
Modem
SPS A
SP A
MODEM plug
SPS B
SP B
SPS A
SP A
2
2
CS
SPS B
SP B
3
If SPS B is installed in your system, connect the cable as shown.
SPS B
SP B
3
Modem
CS
1
1
