EMC DAE User Manual

8
Step 4
Connect DAE2 Power Cords
1. Connect one end of an ac power cable to the power connector on
each DAE2 power supply.
2. Connect the other end of each ac power cable to the nearest
power outlet in the cabinet. For high availability, connect the
power supplies to opposing side power strips so they do not share
a single circuit.

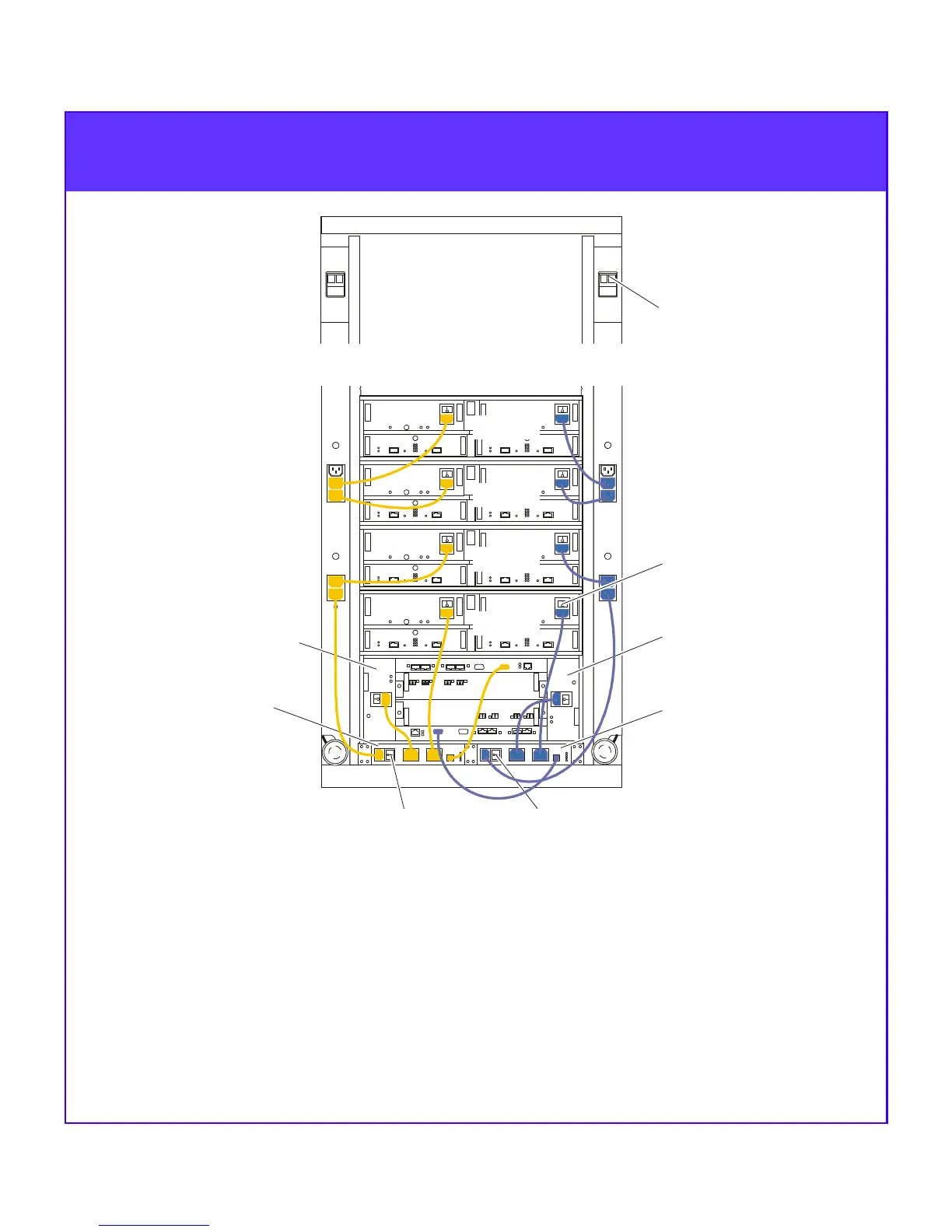

The highly available configuration example shown above supports write
caching. It has two power strips and an SPE, and the first DAE2 is
connected to a secondary power supply (SPS).
EMC231
4
DAE2
DAE2
DAE2
DAE2
Power
Switch
DAE2
SPS A
Power
Supply
A
Power
Supply B
SPS B
Circuit
Breaker
Power Switch
S
P
S
B
Power Switch
S
P
S
A
