4. Disengage the wire clips, then disconnect the four AC power cords from the rear of the

system.

Remove and install an NVRAM module

Note

Place modules on a clean ESD-protected work surface.

Be careful not to touch the components on the module.

The NVRAM module, located in slot 0, is removed and inserted similar to the other I/O

modules.

Procedure

1. Move the cable management assembly (CMA) arms out of the way to access the

NVRAM module.

2. Grasp the blue handle trigger to release the NVRAM module. The ejector button

should release.

Note

Do not remove the NVRAM until the ejector button has released and popped out.

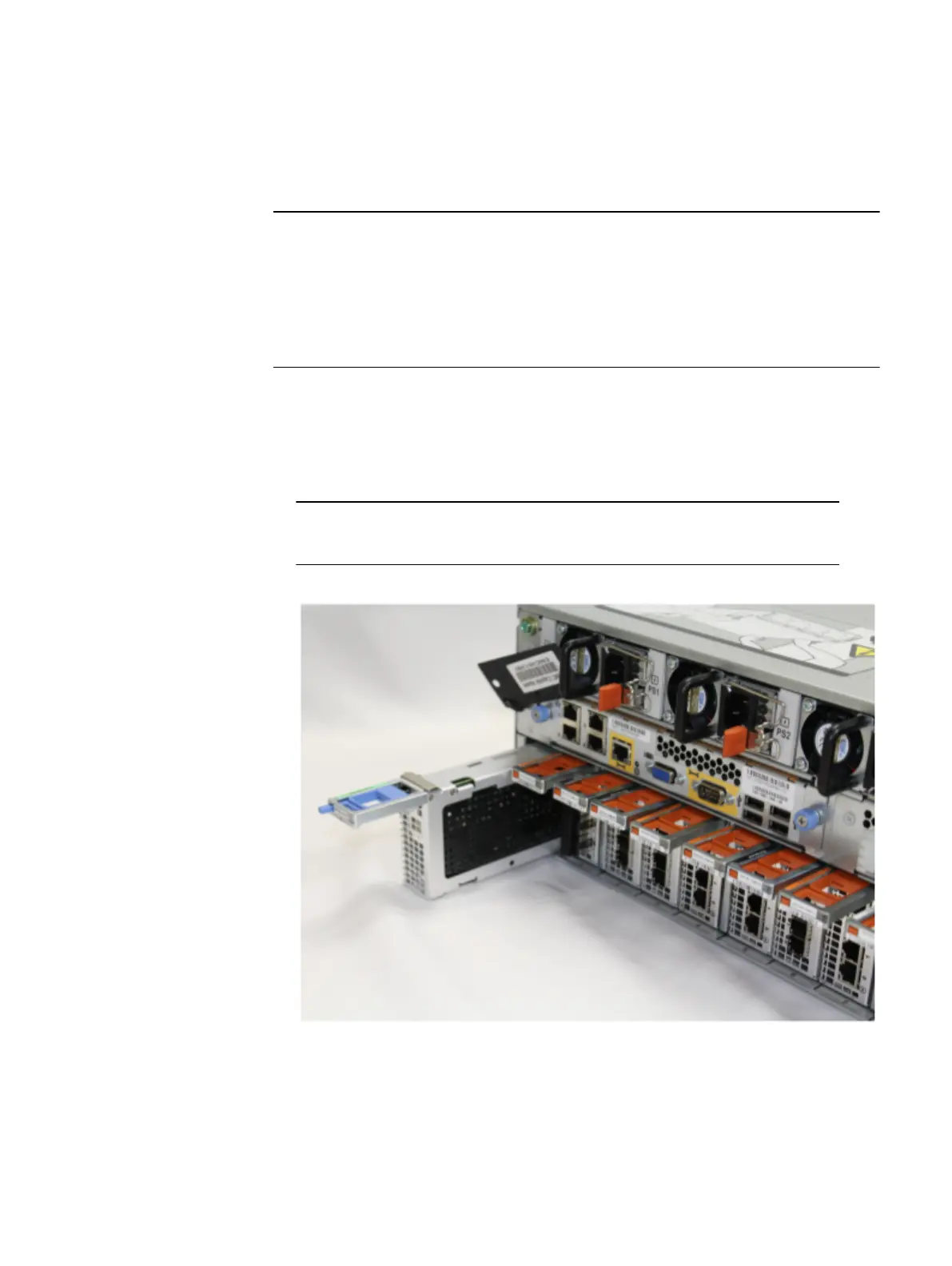

Figure 2 NVRAM module ejector handle (rear of system)

3. Pull on the handle to remove the module from the chassis.

4. Align and slide a replacement module into the bay until it seats in its connector.

5. Apply firm pressure on the front of the module until it seats fully into the slot.

6. Push the ejector button in to secure the module.

NVRAM Module Replacement

Remove and install an NVRAM module 7
