EMC VNX5500 - Data Mover Management Module

44 VNX5500 Hardware Information Guide
System component description

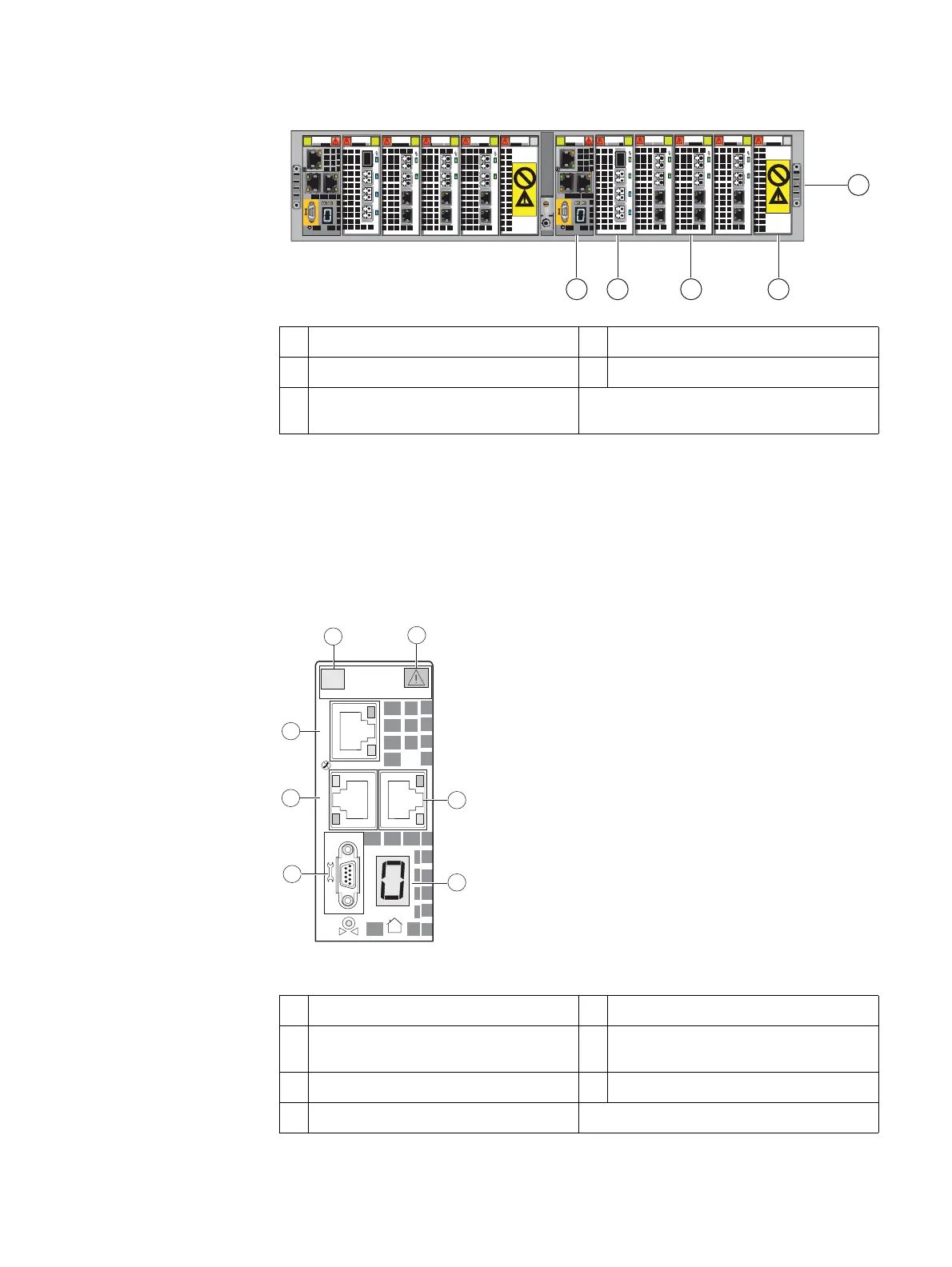

Figure 36 DME (rear view)
Data Mover management module
The Data Mover management module provides the management connections via three
10/100/1000 Ethernet (RJ-45) ports. The Data Mover management module also includes
one RS-232 (EIA) DB-9 serial socket connector for service laptop connection and several
LEDs (Figure 37).
Figure 37 Data Mover management module
1 Data Mover enclosure 4 Four-port 8-Gb/s FC I/O module
2 Filler panel module 5 Management module
3 Two-port 1-Gb/s copper plus two-port
1-Gb/s optical I/O module
0
123
0
123
0
1
23
0
12 3
0
12 3
0
1
23
0
12 3
0
12 3
0
12 3
0
1
23
1
235 4
CNS-001767
1 Power/fault LED 5 DB-9 serial console socket connector
2 Data Mover management module push
button latch handle
6 RJ-45 Ethernet NIC port (labeled 0)
3 RJ-45 Ethernet NIC port (labeled 1) 7 RJ-45 Ethernet NIC port (labeled 2)
4 Data Mover enclosure ID numeric display
2
0
1
#
1
2
3
4
5
6
7
CNS-001754
