Emec AMS 0340 - Injection Valve

14
Venting hose.
Insert one side of venting hose into venting connector as shown in fig (C).
Insert other side of venting hose into product’s tank.
During priming procedure product exceeding will flow into tank.
Injection Valve.
Injection valve must be installed on plant from water’s input.
Injection valve will open at pressure greater than 0,3 bar.
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
E E
F F
Progettato da Controllato da Modificato da, il Data
Edizione Foglio
/
A2emec_Modificato
Massimo_F
27/01/2010
00
Toll.
Gen.
`0.05
Materiale:
1
1

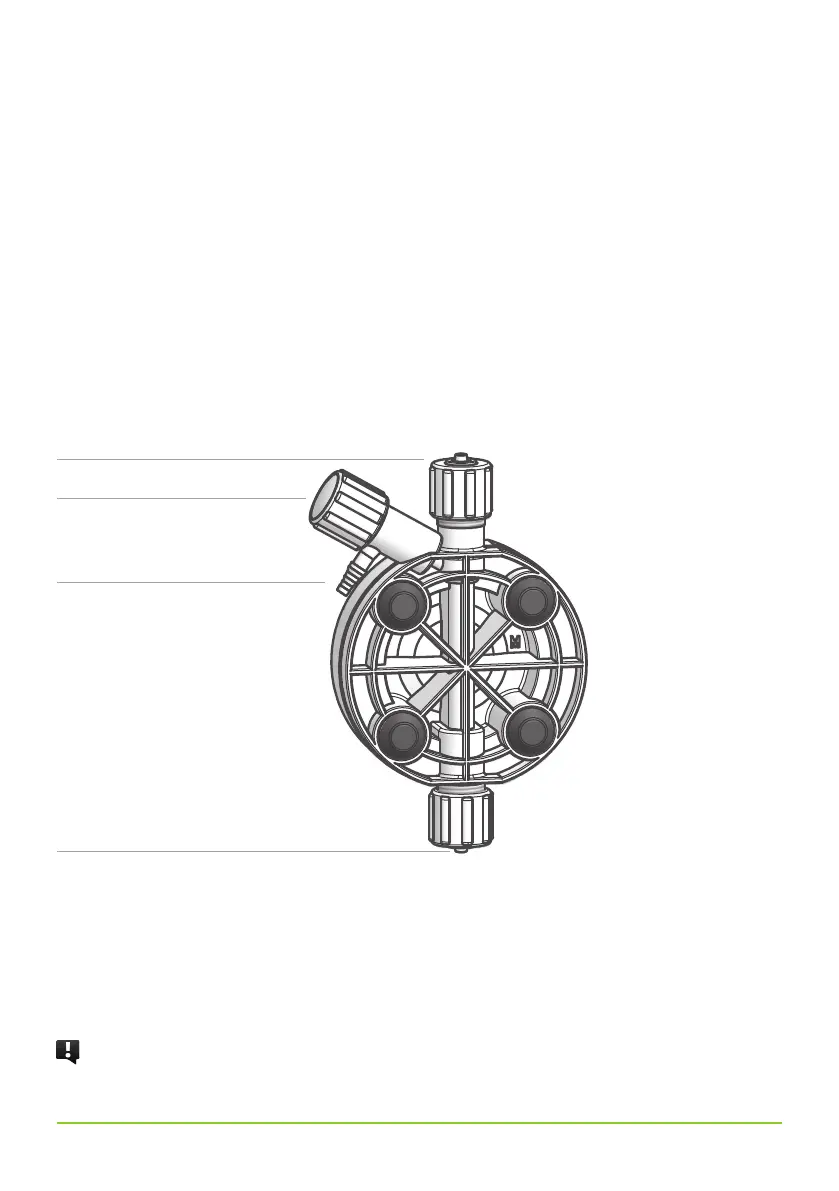

To manual venting hose
