Emerson AE4-1287 R7 - Demand Cooling Setpoints and Parts; Table 1 - Operating Setpoints and Control Actions; Table 2 - Kit Part Numbers; Kit Contents and Accessories

13
© 2012 Emerson Climate Technologies, Inc.
Printed in the U.S.A.
AE4-1287 R7
Application Engineering
BULLETIN

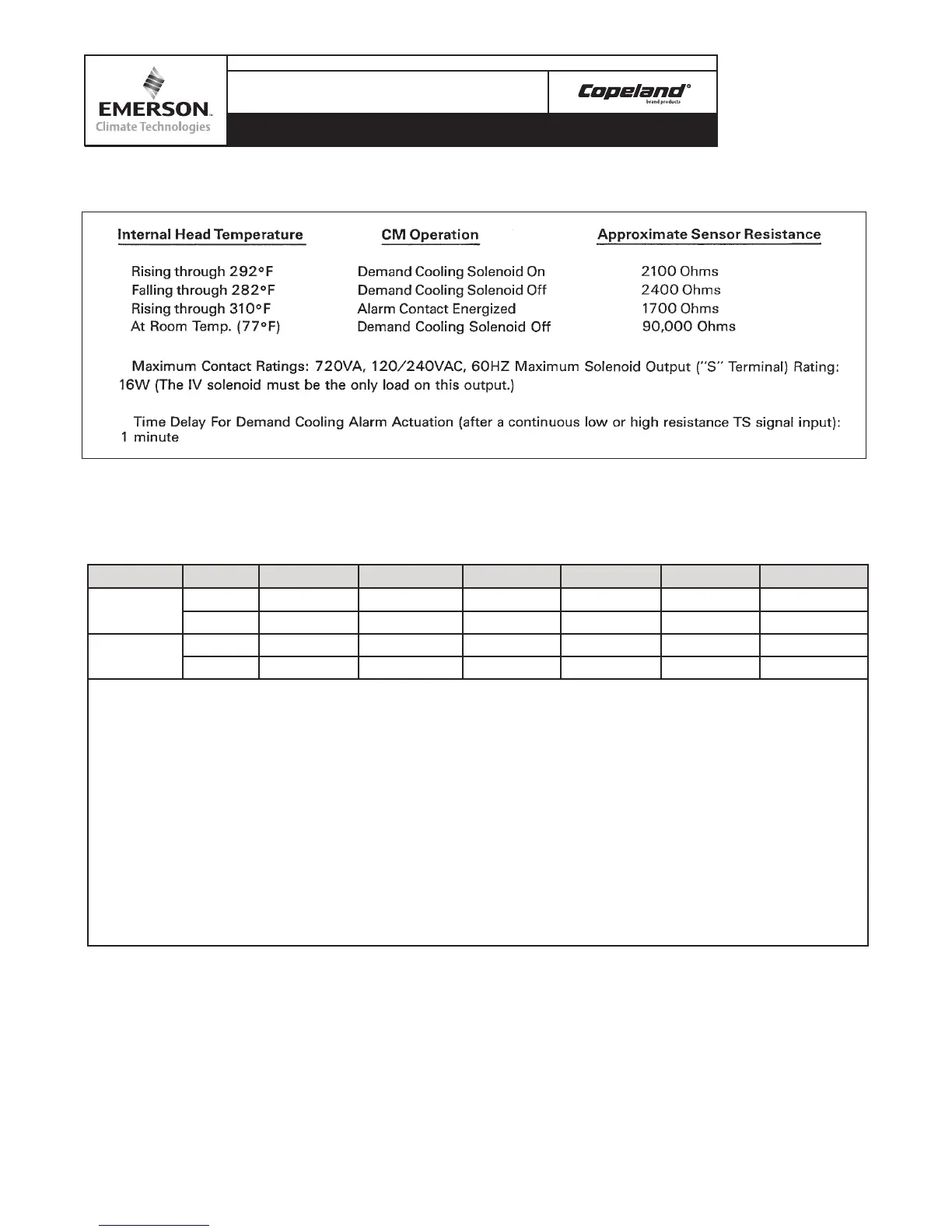

Table 1
Demand Cooling Operating Setpoints and Control Actions
Table 2
Demand Cooling Kit Part Numbers
Frequency Voltage 2D 3D 4D 6D 4D*X,4D*N¹ 6D*X,6D*N¹
50HZ
120V 998-1000-12 998-1001-13 998-1001-14 998-1001-16 998-2001-14 998-2001-16
240V 998-1000-22 998-1001-23 998-1001-24 998-1001-26 998-2001-24 998-2001-26
60HZ
120V 998-1000-12 998-1000-13 998-1000-14 998-1000-16 998-2000-14 998-2000-16
240V 998-1000-22 998-1000-23 998-1000-24 998-1000-26 998-2000-24 998-2000-26
Demand Cooling Kits Include:
Demand Cooling Module with 2 Mounting Screws
Temperature Sensor with 3ft. Shielded cable
Injection Valve and Solenoid (without mounting hardware)
Installation/Troubleshooting Guide
Optional Demand Cooling Module Mounting Brackets
2D and 3D Models
4D and 6D Models
998-0700-09
998-0700-10
Temperature Sensors
3ft. Shielded Cable (Standard)
10ft. Shielded Cable (Optional)
085-109-00
085-109-01
¹4D*X, 4D*N, 6D*X, 6D*N Indicate Discus III Models
