Emerson AW Series User Manual

3
Spring return
Double acting
KTM PNEUMATIC ACTUATORS - AW, AWN SERIES
INSTALLATION AND OPERATION MANUAL
SECTION 5 - RANGE OF APPLICATION
Operating mechanism Operation Model no. Pressure (MPa)
Scotch York
(Para-arm piston rod pin)
Double acting AWN13 0.3 - 0.7
AW17
AW20
AW28
Single acting AWN13S 0.4 - 0.7
(Spring return) AW17S
AW20S
AW28S
Single acting AWN13L 0.3 - 0.4
for low pressure range AW17L 0.2 - 0.4
AW20L 0.3 - 0.5
AW28L 0.2 - 0.4
CAUTION
Use Torque Cylinders within operating pressure
ranges only.
Operation outside the specified range may cause
damage to the cylinder or malfunction.
SECTION 6 - CONSTRUCTION
NOTE
Only AWN13 has an oval-shaped upper stem and a
square-shaped lower stem.
PARTS LIST
No. Parts Nme
1 Body
2 Stem
3 Para-arm
4 Key
5 Set screw
6 O-ring
7 O-ring
8 Thrust bearing
9 Thrust bearing
10 Snap ring
11 Snap ring
12 Piston rod
13 Pin
14 Roller
15 Bearing
16 Snap ring
17 Adapter
18 Gasket
19 Bearing
20 O-ring
21 O-ring
22 Piston
23 O-ring
24 O-ring
25 Nut
26 Cylinder
27 Cap screw
28 Stopper bolt
29 Gasket
30 Cap Nut
31 Spring retainer
32 Cylinder
33 Spring case
34 Spring (Outer)
35 Spring (Inner)
36 Spring cover
37 Long bolt
38 Nut
39 Stopper bolt
40 Nut
41 Pipe
Spring return
Double acting

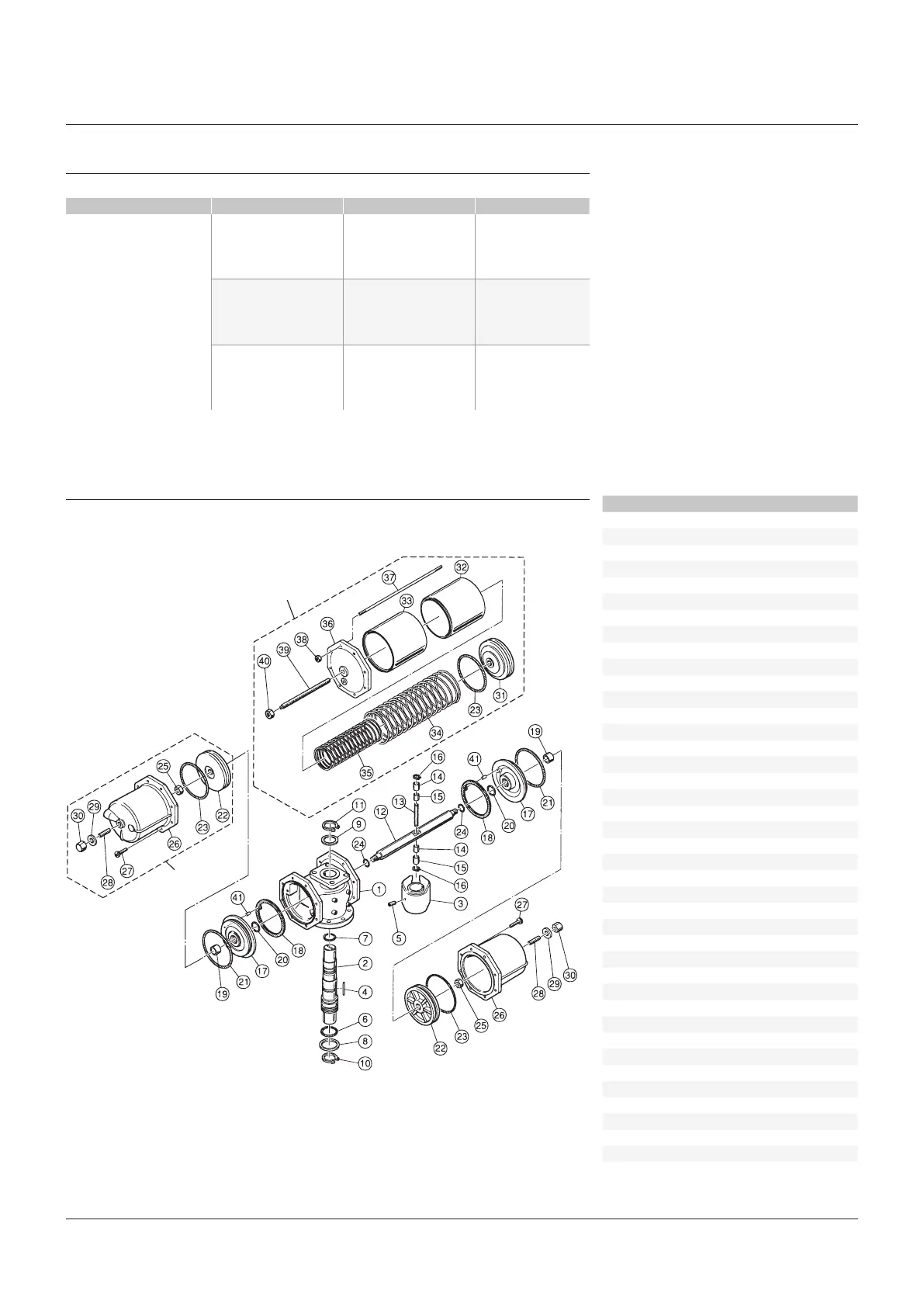

FIGURE 1
