Emerson CARRERA GRANDE CF787 series User Manual

9
U.L. Model No.: CF787
Turning off wall switch is not sufficient. To avoid
possible electrical shock, be sure electricity is
turned off at the main fuse or circuit breaker box
before wiring. All wiring must be in accordance with
National and Local codes and the ceiling fan must be
properly grounded as a precaution against possible
electrical shock.
WARNING
!
Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire
connectors, except for the ground wire. Do not
operate fan until blades are in place. Noise and fan
damage could result.
WARNING
!
To avoid possible electrical shock, be sure electricity
is turned off at the main fuse or circuit breaker panel.
NOTE: If you are not sure if the outlet box is
grounded, contact a licensed electrician for advise,
as it must be grounded for safe operation.
WARNING
!
To avoid possible fire or shock, follow all wiring
instructions carefully. Any Electrical work not
described in these instructions should be done or
approved by a licensed electrician.
WARNING
!

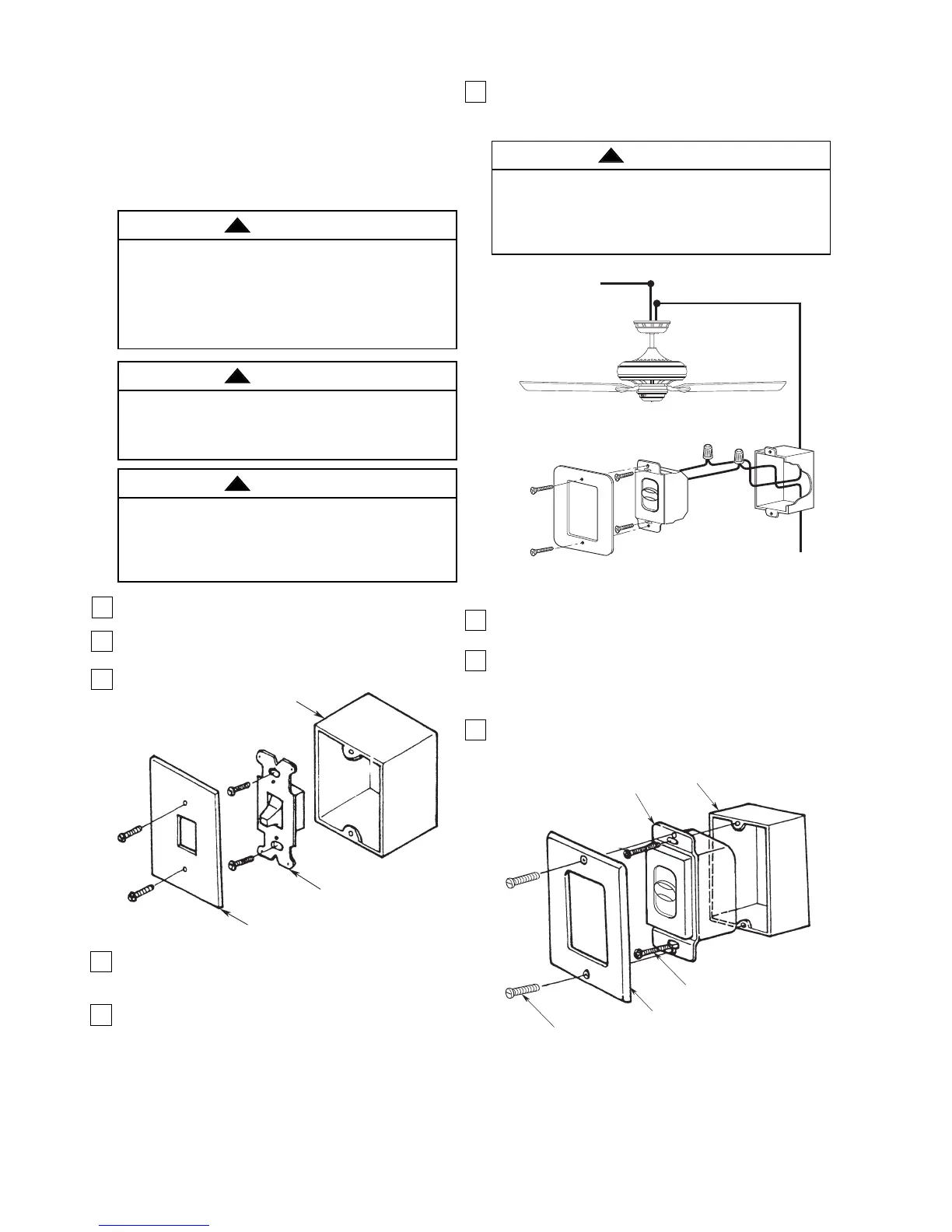

WALL PLATE
WALL OUTLET BOX
SWITCH
Figure 15
6. If present, connect the supply white neutral wire to
the branch circuit white neutral wire with a wire
connector.
1. Remove the wall plate and screws from the existing
wall switch. Pull switch out from wall outlet box.
2. Disconnect wire from existing fan wall switch
(Figure 15).
3. Slide the fan control to the OFF position (0).
This control is designed to operate only one ceiling
fan.
TO NEUTRAL
TO FAN MOTOR LOAD
TO 120VAC
SOURCE HOT
BLACK
BLACK
4
0
3
2
1
Figure 16
7. Attach the fan control to the wall outlet box with two
6-32 x 3/4” screws (provided with control).
8. Position the wall plate (provided with control) onto
the speed control. Using the two 6-32 x 1/4”
screws, fasten the wall plate to the control (Figure
17).
9. Installation of the ceiling fan is now complete.
Restore power at the main fuse box or circuit
breaker panel.
4
0
3
2
1
6-32 x 1/4" SCREW (2)
WALL PLATE
WALL CONTROL
OUTLET BOX
6-32 x 3/4" SCREW (2)
Figure 17
4. Connect one BLACK wire from the fan control to
the fan/motor load wire with a wire connector
(provided) (Figure 16).
5. Connect the other BLACK wire from the Fan
Control to the 120VAC hot supply wire with a wire
connector (provided with control).
NOTE: Use wire connectors (supplied) to secure
electrical connections.
How to Wire Your
Ceiling Fan - 4-Speed
Slide Wall Control
