Epsilon Eb and EN Drives Reference Manual

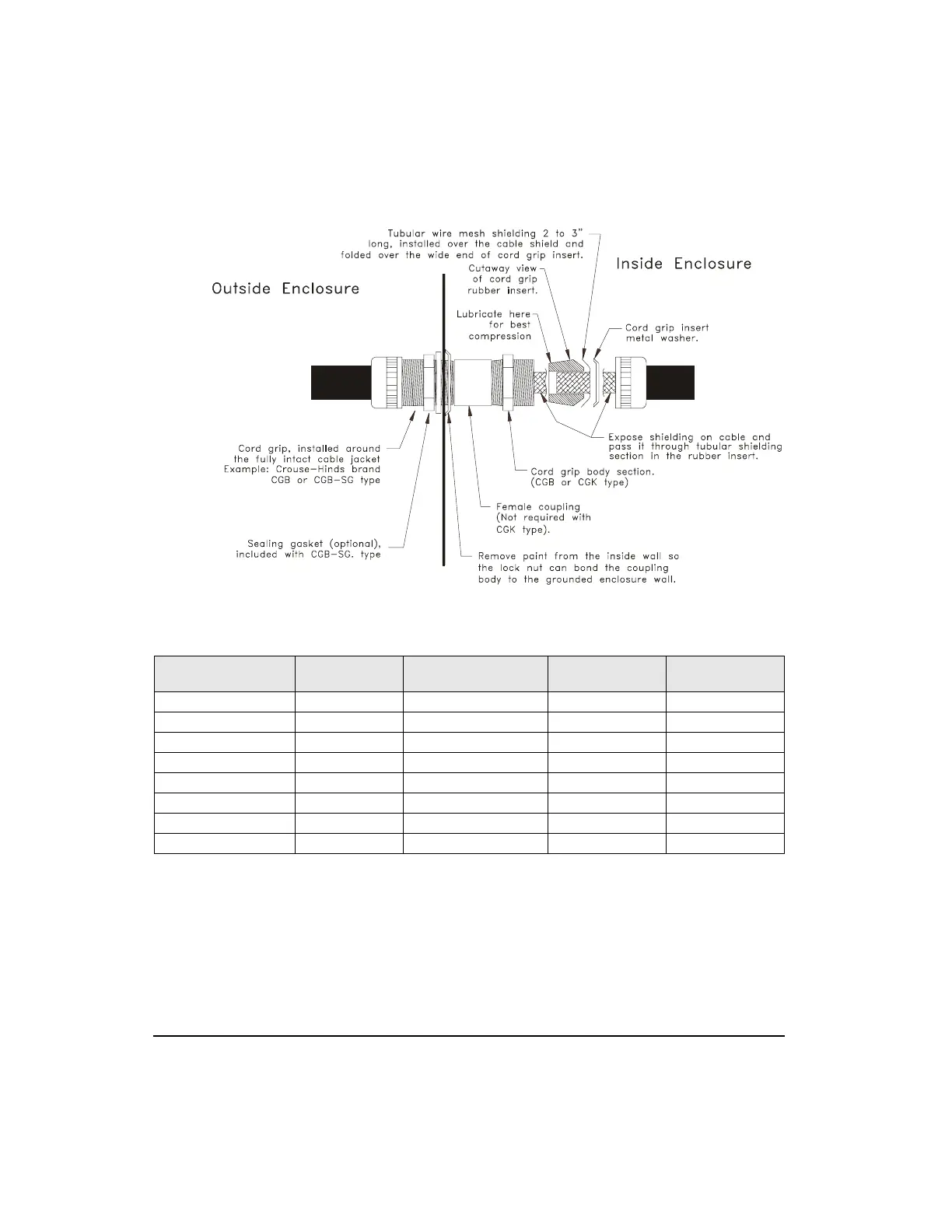

Figure 51: Through Wall Shield Grommet
Cable Type
Cable
Model
Shielded Cable Grommet
Kit Part #
Conduit Dimension
Hole Size
Actual Hole Size
Motor Cable, 16 Ga CMDS CGS-050 1/2" pipe 7/8"
Motor Cable, 12 Ga CMMS CGS-050 1/2" pipe 7/8"
Feedback Cable CFOS CGS-050 1/2" pipe 7/8"
Flex Motor Cable, 16 Ga CMDF CGS-050 1/2" pipe 7/8"
Flex Motor Cable, 12 Ga CMMF CGS-075 3/4" pipe 1 1/16"
Flex Feedback Cable CFCF, CFOF CGS-063 3/4" pipe 1 1/16"
External Encoder ENCO CGS-038 1/2" pipe 7/8"
AC Power user supplied user supplied user supplied user supplied
