Epsilon Eb and EN Drives Reference Manual
Input Functions Window
This window allows you to select the input function you wish to assign to an input line.
Active State
The active state of each input function is displayed next to the output function. See the
"Active Off" check box section on the following page.
Always Active
The setting for Always Active is displayed next to each input function. See "Always Active"
check box section on the following page.
Input Line Selection Radio Buttons - EN Only
This selection box is used to assign an input function to an input line. Highlight the function
you wish to assign, then select the appropriate input line radio button. To unassign an input
function, highlight the function in the Input Functions window, then select the “Unassigned”
radio button.

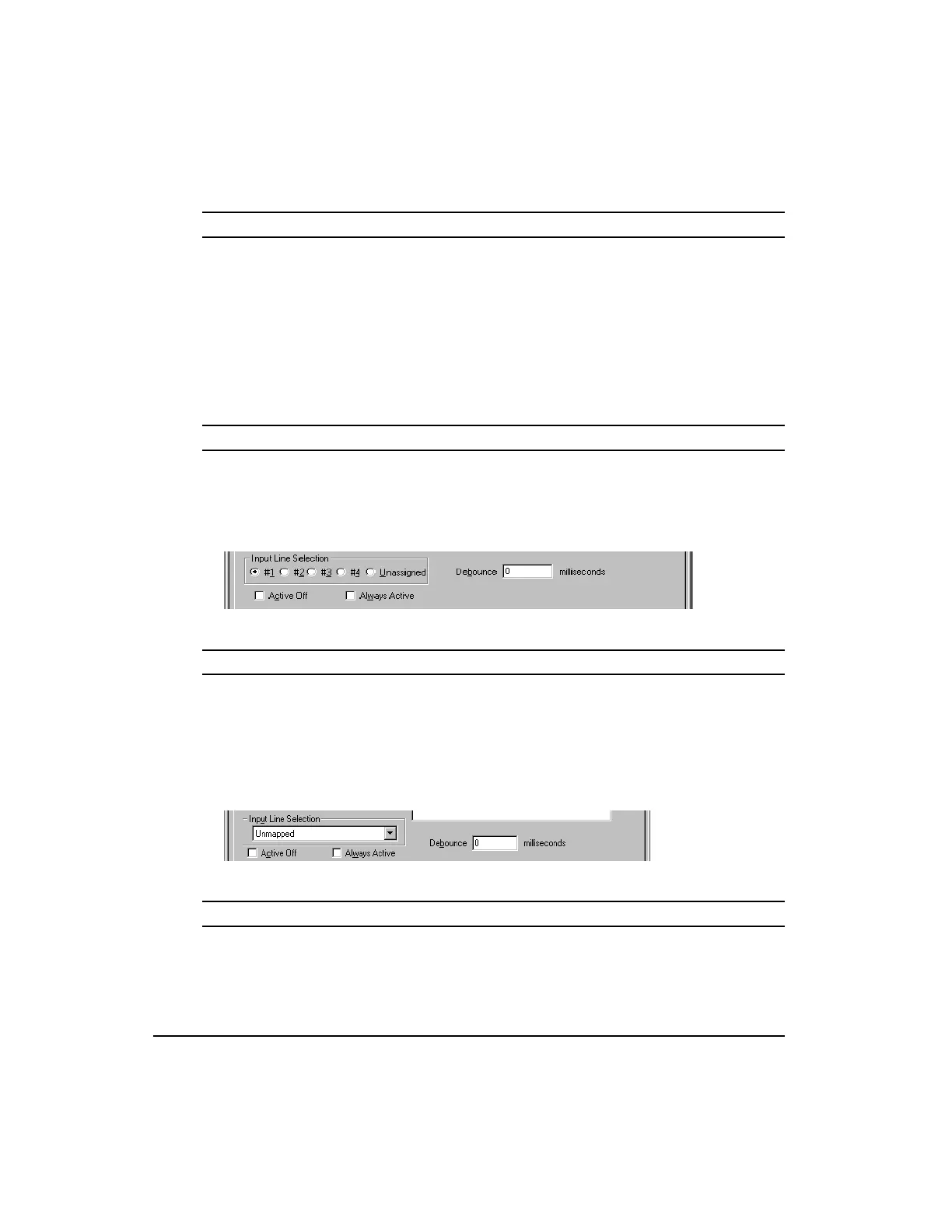

Figure 32: EN Input Line Selection View
Input Line Selection List Box - Epsilon Only
This list box allows you to assign or unassign a highlighted Input Function to an Input Line.
Click on the list box arrow to see the Input lines. Then click on the line numbers to assign the
function. Assigning the input functions can also be accomplished by dragging the Input
Function over and dropping it onto an Input line. To unassign an input function, highlight the
function in the Input Lines window and press the delete key or drag the input function from
the Input Lines window back to the Input Functions window .
Figure 33: Epsilon Input Line Selection View
Active Off Check Box
This check box allows you to change the “Active On/Off” state. Select the desired function
in the input functions window, then check or uncheck the “Active Off” checkbox.
