Epsilon Eb and EN Drives Reference Manual
Note
Connecting 24V common on the APS to chassis ground reduces offset voltage in the
Analog Diagnostics Outputs.

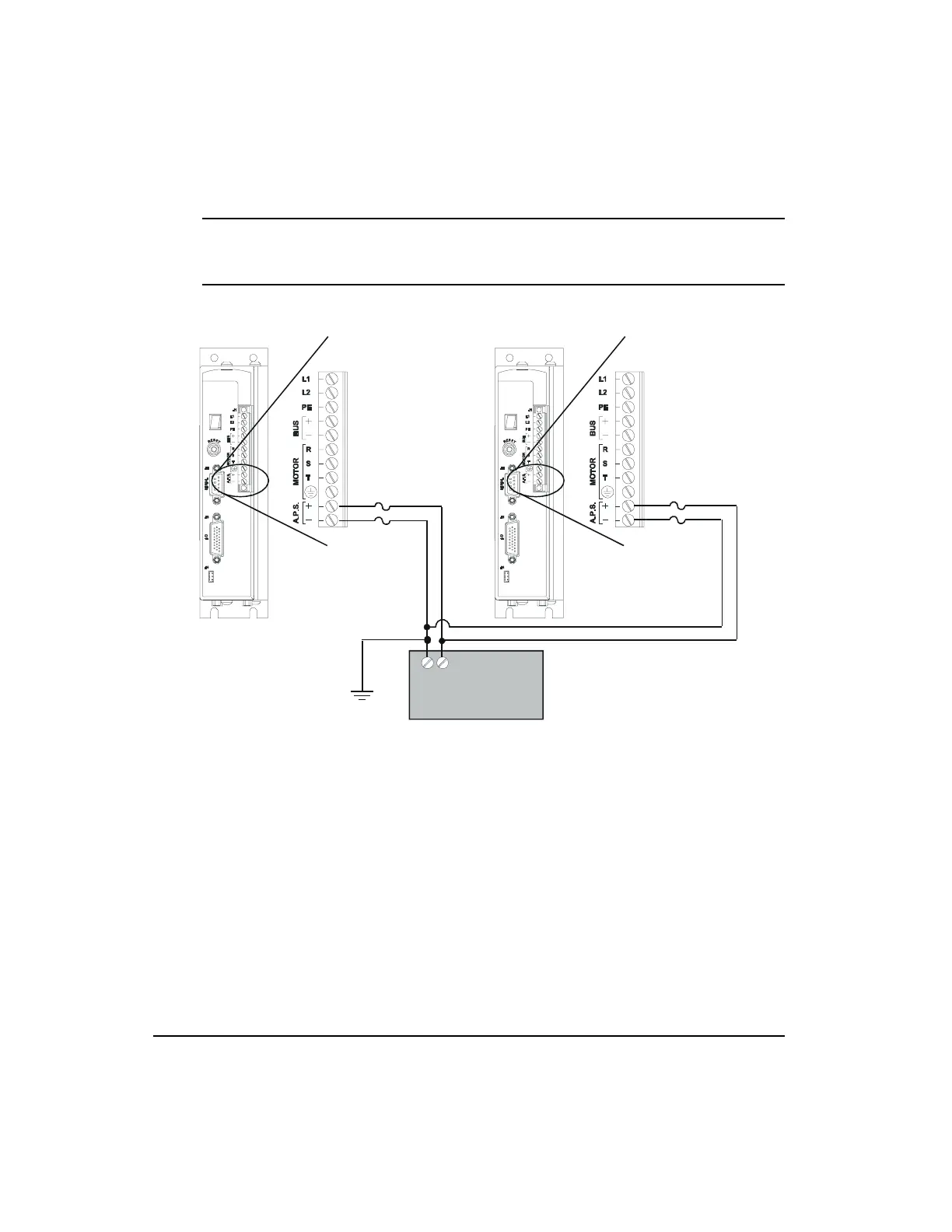

Figure 65: Multiple APS Wiring Diagram
Motor Power Wiring
MG and NT Motors are equipped with up to three male MS (Military Standard) connectors,
one for stator connections, one for encoder connections and one for the brake (if so equipped).
Stator connections from the drive to the motor are made with the CMDS or CMMS cable have
a female MS style connector on the motor end and four individual wires and shield that
connect to the motor power connector on the bottom of the drive.
Front ViewFront View
24 VDC
J1
1 A
Fuse
J1
1 A
Fuse
+
-
Single point PE
ground
(recommended)
