Emerson Control Techniques Epsilon Eb Series User Manual

115
Installation

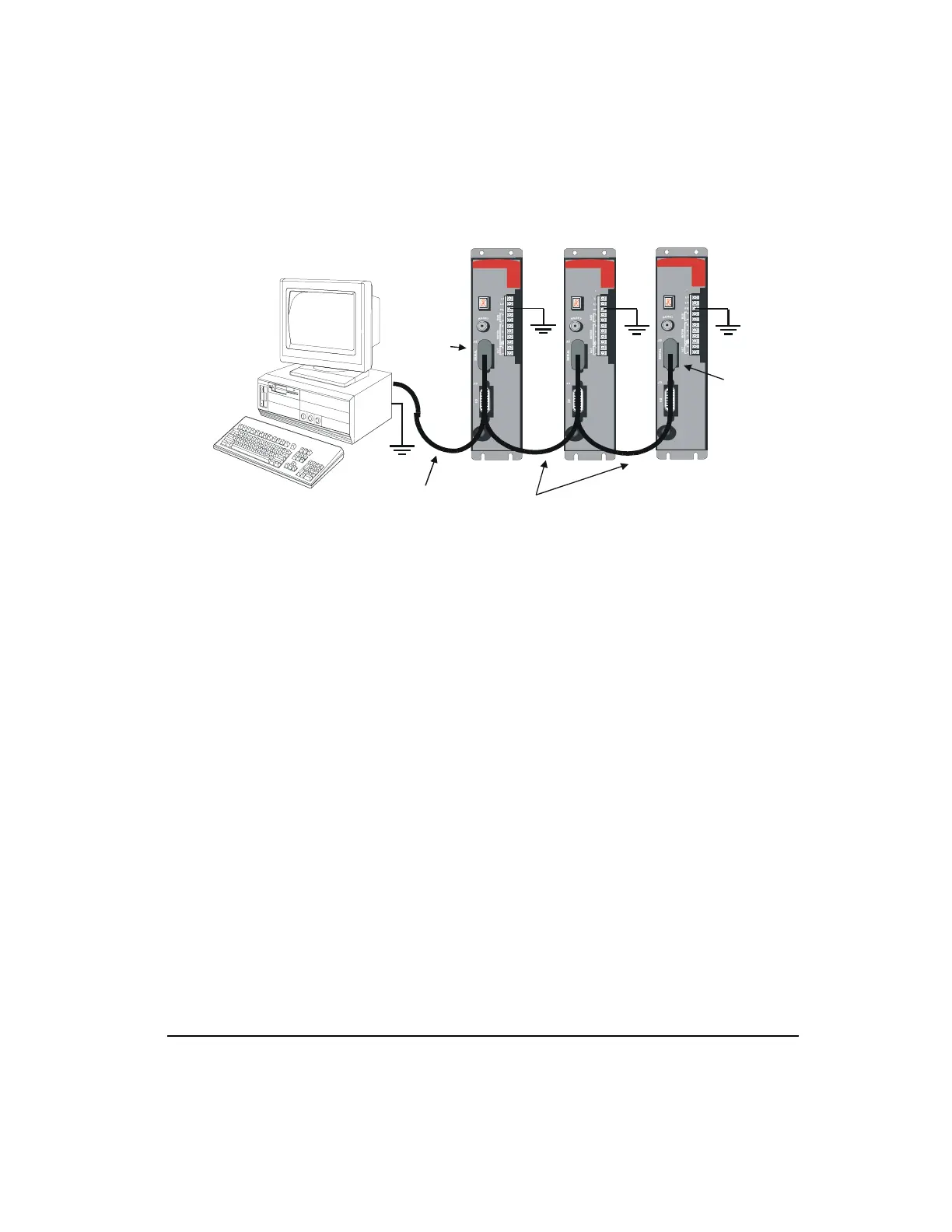

Figure 91: Epsilon Eb Multi-Drop Wiring Diagram
Note:
The terminating resistor packs, TERM-H
and TERM-T, should be installed on the
first (TERM-H) and last (TERM-T) drive in
the string if the total cable length is over
50 feet.
TIA-XXX
Serial Cable
TERM-H
DDS-XXX
Serial Cables
DDS-XXX
Serial Cables
TERM-T
