30
Epsilon Eb and EN Drives Reference Manual
Analog Command Wiring

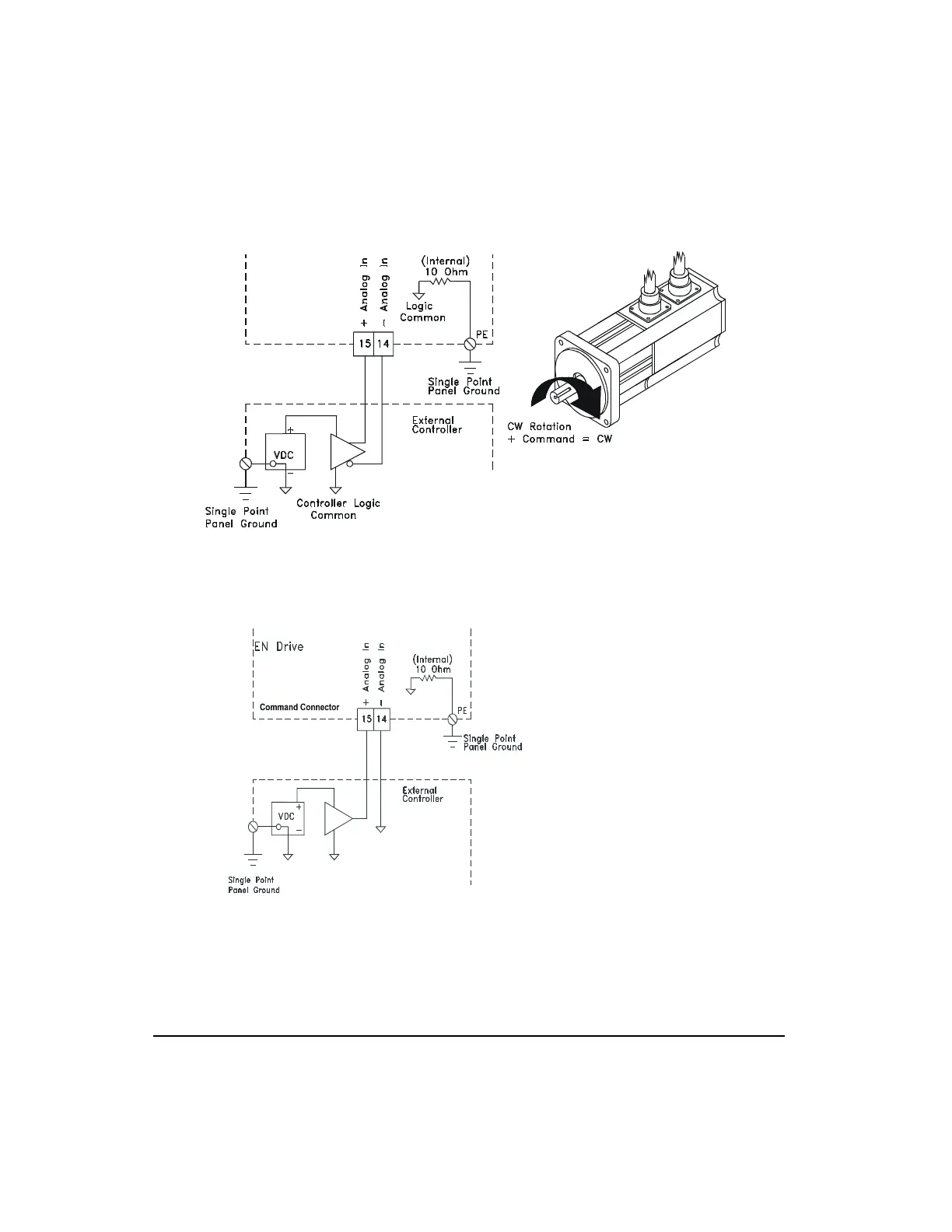

Figure 18: Analog Command, Differential Wiring Diagram
Figure 19: Analog Command, Single-ended Wiring Diagram
Command Connector
With positive direction = CW
