Emerson Dixell iChill IC205D User Manual

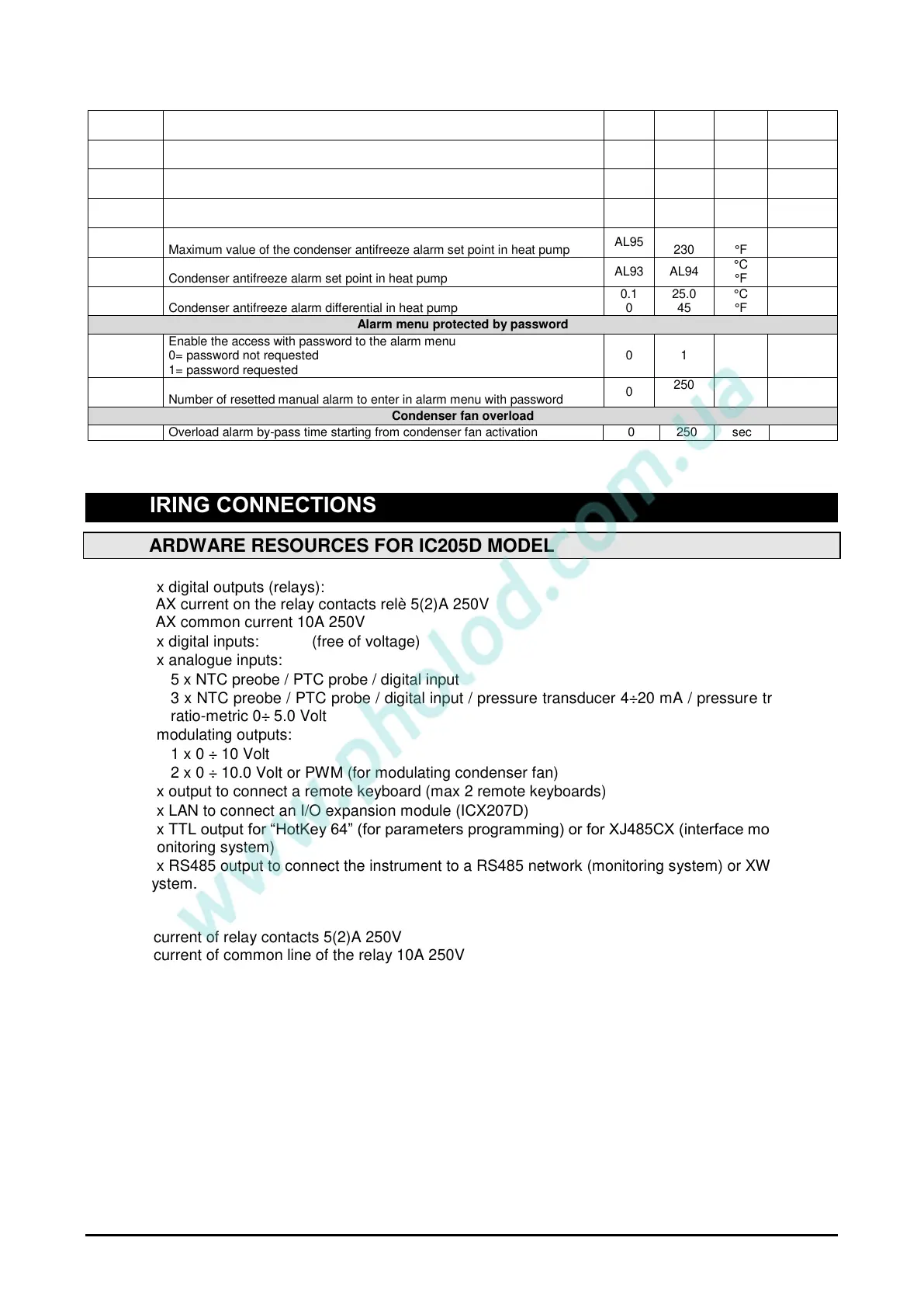

1592015610 User manual IC200D EVO GB rel1.0 10.11.2015_rev10 IC200D 168/192
AL90
Maximum value of the condenser antifreeze alarm set point in chiller
AL91
110
230
°C
°F
Dec
int
AL91
Condenser antifreeze alarm set point in chiller
AL89
AL90
°C
°F
Dec
int
AL92
Condenser antifreeze alarm differential in chiller
0.1
0
25.0
45
°C
°F
Dec
int
AL93
Minimum value of the condenser antifreeze alarm set point in heat pump
-50.0
-58
AL95
°C
°F
Dec
int
AL94
Maximum value of the condenser antifreeze alarm set point in heat pump
AL95
110
230
°C
°F
Dec
int
AL95
Condenser antifreeze alarm set point in heat pump
AL93
AL94
°C
°F
Dec
int
AL96
Condenser antifreeze alarm differential in heat pump
0.1
0
25.0
45
°C
°F
Dec
int
Alarm menu protected by password
AL97
Enable the access with password to the alarm menu
0= password not requested
1= password requested
0
1
AL98
Number of resetted manual alarm to enter in alarm menu with password
0
250
Condenser fan overload
AL 99
Overload alarm by-pass time starting from condenser fan activation
0
250
sec
51. WIRING CONNECTIONS
51.1 HARDWARE RESOURCES FOR IC205D MODEL
 5 x digital outputs (relays):
MAX current on the relay contacts relè 5(2)A 250V
MAX common current 10A 250V
 9 x digital inputs: (free of voltage)
 8 x analogue inputs:
 5 x NTC preobe / PTC probe / digital input
 3 x NTC preobe / PTC probe / digital input / pressure transducer 4÷20 mA / pressure transducer
ratio-metric 0÷ 5.0 Volt
 4 modulating outputs:
 1 x 0 ÷ 10 Volt
 2 x 0 ÷ 10.0 Volt or PWM (for modulating condenser fan)
 1 x output to connect a remote keyboard (max 2 remote keyboards)
 1 x LAN to connect an I/O expansion module (ICX207D)
 1 x TTL output for “HotKey 64” (for parameters programming) or for XJ485CX (interface module for
monitoring system)
 1 x RS485 output to connect the instrument to a RS485 network (monitoring system) or XWEB
system.
MAX current of relay contacts 5(2)A 250V
MAX current of common line of the relay 10A 250V
