Emerson ES30 - LOCATION OF CONTROLS AND INDICATORS

10

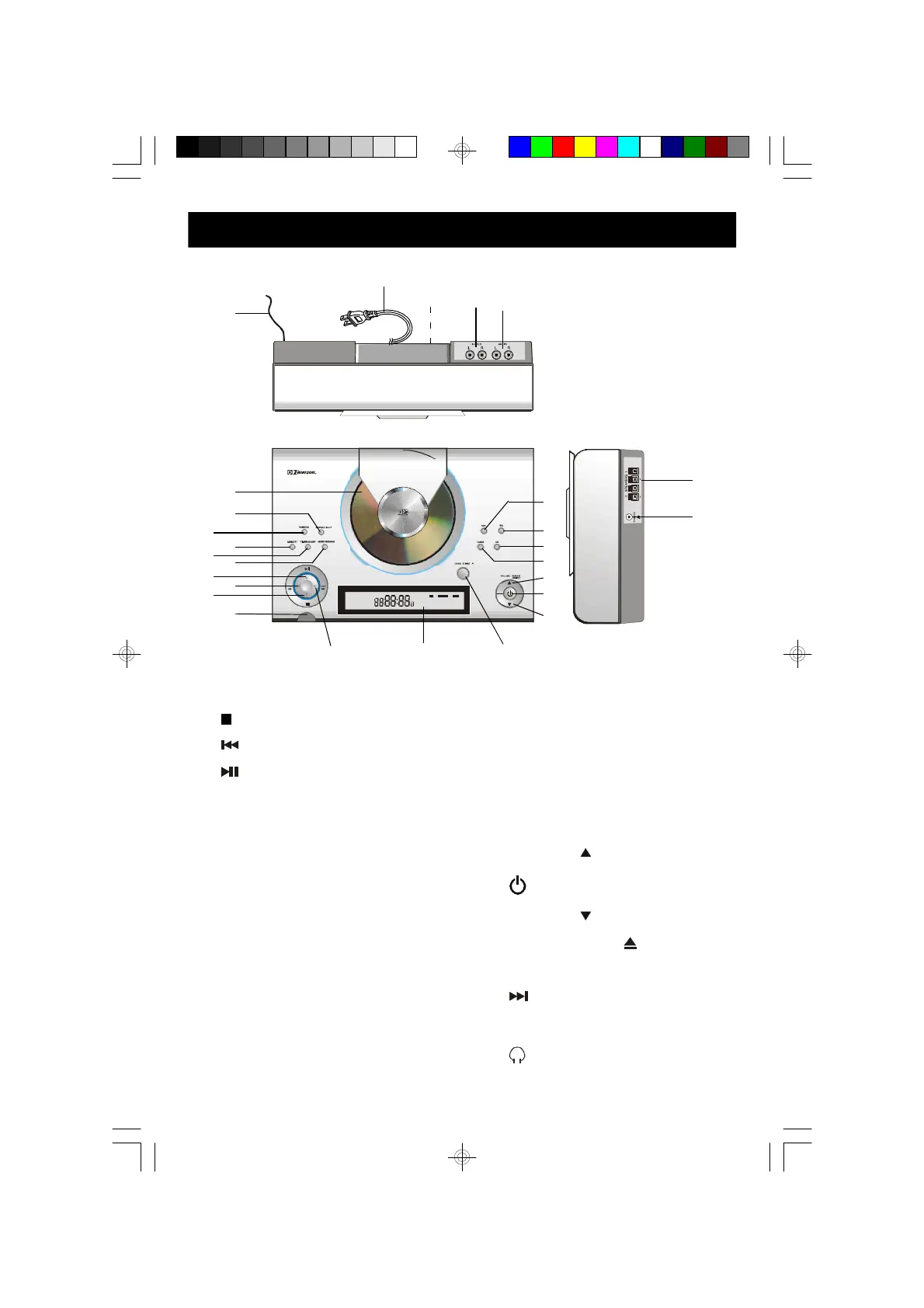

LOCATION OF CONTROLS AND INDICATORS
1.) Remote Sensor.
2.) STOP / BAND Button.
3.) Skip / Search Rev Button.
4.) Play / Pause Button.
5.) MODE / REMAIN Button.
6.) TIMER / SLEEP Button.
7.) MEMORY Button.
8.) RANDOM Button.
9.) REPEAT / M-UP Button.
10.) CD Door.
11.) FM Wire Antenna.
12.) AC Power Cord.
13.) RESET Button.
(Inside Pinhole on Back Cabinet)
14.) LINE OUT L / R Jacks.
15.) AUX IN L / R Jacks.
16.) AUX Button.
17.) EQ (Equalizer) Button.
18.) CD Button.
19.) TUNER Button.
20.) VOLUME Up Button.
21.) POWER / STANDBY Button.
22.) VOLUME Down Button.
23.) OPEN / CLOSE Button.
24.) Muti-function LCD Display.
25.) Skip / Search Fwd Button.
26.) SPEAKERS Terminals.
27.) PHONES Jack.
