CONNECTING TO A DOLBY DIGITAL DECODER (for DVD)
If using this TV/DVD to play a DVD disc in a 5.1 channel Dolby Digital surround format, the TV/DVD out-
puts a DOLBY DIGITAL Data stream from its COAXIAL digital audio out jack. By hooking the TV/DVD up
to a Dolby Digital decoder, you can enjoy a more convincing, realistic ambience with powerful and high-qual-
ity surround sound as enjoyed in movie theaters.
Use audio coaxial digital cables available at retail for the audio connections.
NOTES:
Be sure to turn off the power to all components in the system before connecting another component.
Refer to the Owner's Manuals for the components to be connected to the TV/DVD.
If connected to a Dolby Digital decoder, set DOLBY DIGITAL to ON for audio output in the setup mode.
(See page 28 to set DOLBY DIGITAL to ON.)
Unless connected to a Dolby Digital decoder, set DOLBY DIGITAL to OFF for audio output in the setup
mode. Playing a TV/DVD using incorrect settings may generate noise distortion and may also damage the
speakers.
COAXIAL
ANT.
Front speaker
(left)
Center
speaker
Front speaker
(right)
Surround
speaker
(left)
Surround
speaker
(right)
Subwoofer
To DIGITAL AUDIO OUT
(PCM/BITSTREAM)
COAXIAL jack
To COAXIAL DIGITAL
AUDIO INPUT jack
Dolby Digital decoder

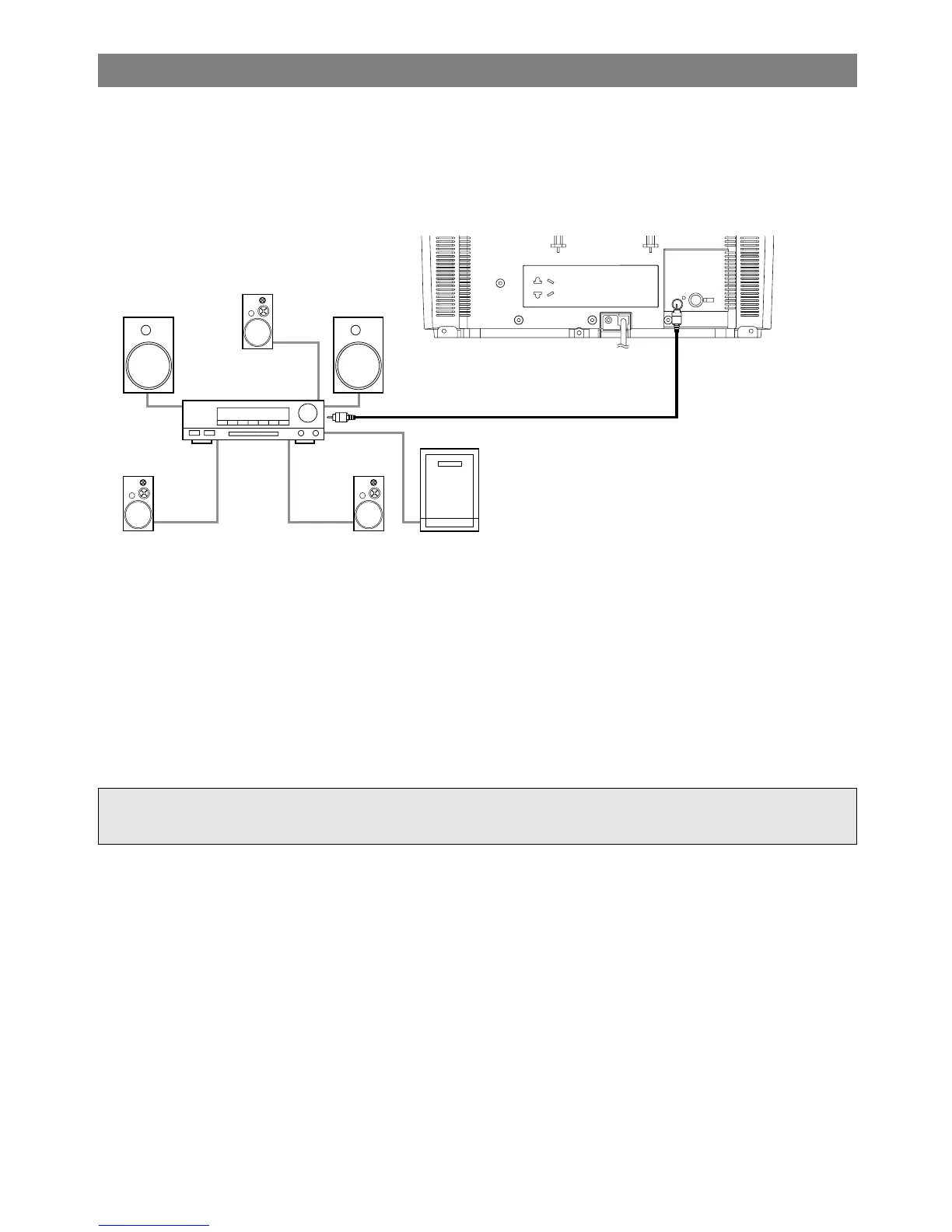

[Fig. 7]
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are
trademarks of Dolby Laboratories.
