Emerson EWD7003 - Waveforms

1-9-2
E58T0WF
1-9-1
NOTE:
Input
CD: 1kHz PLAY
(WF4~WF6)
DVD: POWER ON (STOP) MODE
(WF1~WF3)

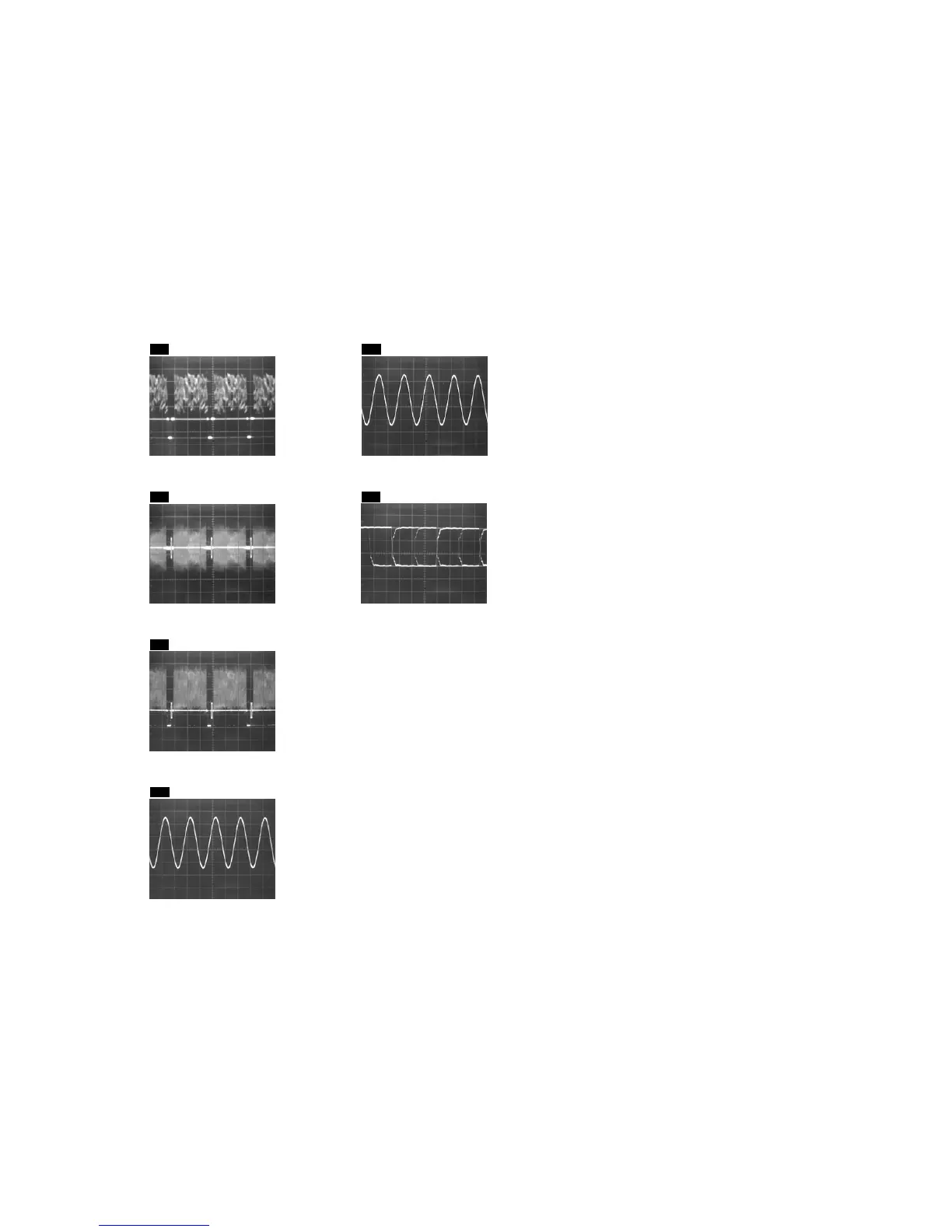

WAVEFORMS
WF6
SPDIF
Pin 16 of CN1601
1V 0.1 µ sec
WF1 Pin 5 of CN1601
WF3 Pin 21 of IC1402
WF4
AUDIO-L
Pin 11 of CN1601
1V 0.5msec
WF5
AUDIO-R
Pin 13 of CN1601
1V 0.5msec
WF2 Pin 7 of CN1601
VIDEO-Y 0.2V 20 µ sec
VIDEO-C 0.2V 20 µ sec
VIDEO-CVBS 0.5V 20 µ sec
