Emerson FB3000 RTU Quick Start Guide
D301859X012
April 2021
11
Wiring I/O
You can individually configure AI/DI/PI1 through AI/DI/PI8 as analog inputs (AI), digital inputs (DI),
or pulse inputs (PI).
Analog Input (AI)

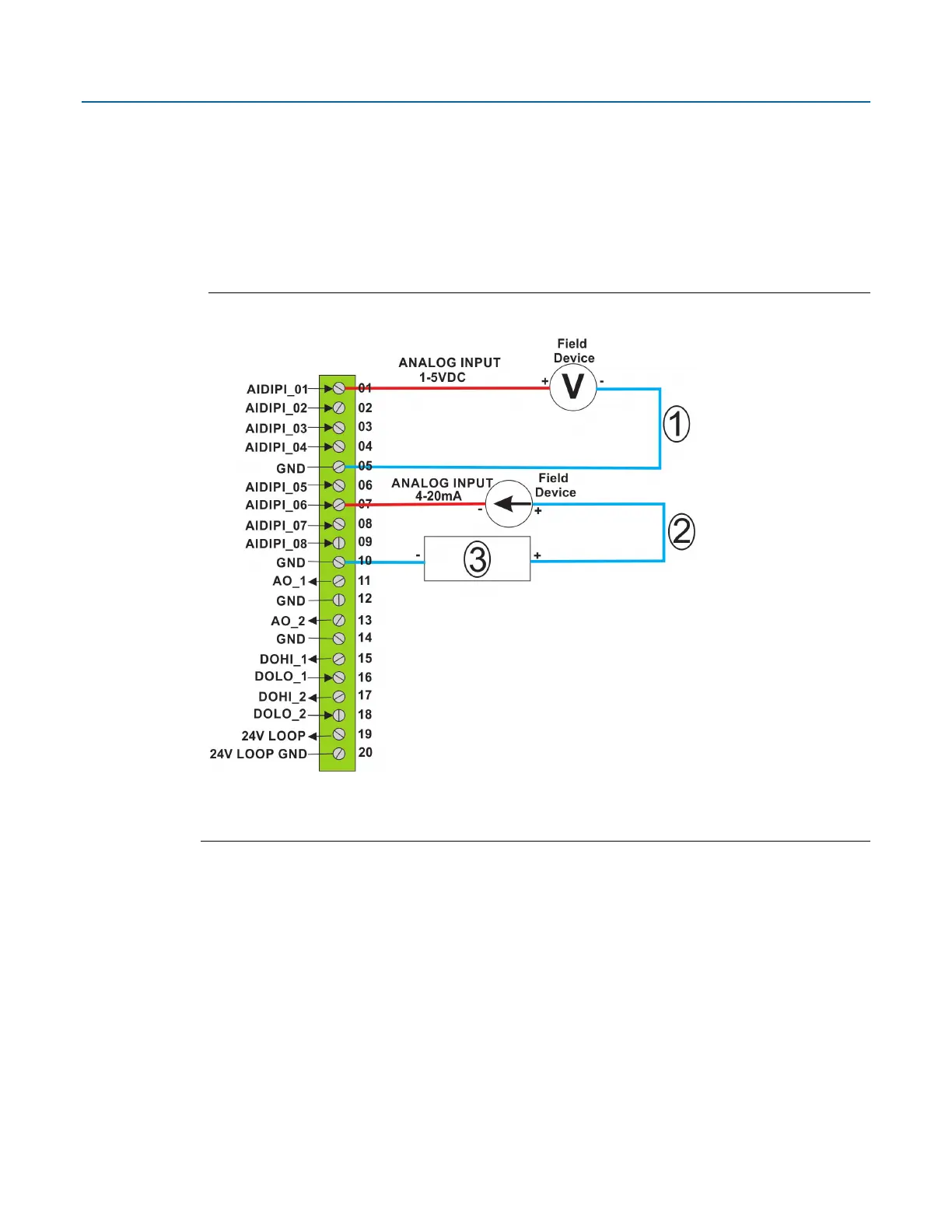

AI Wiring Using 1–5 Vdc or 4–20 mA
1
External Voltage Source
2
External Current Source
3
Power Supply 30VDC Max
