Wiring Communications
The communication ports allow you to connect to a PC or laptop running FBxConnect software or
to other devices. Regardless of the interface standard [RS-232, RS-485 (4-wire), or RS-485 (2-
wire)], you must use FBxConnect to configure the port for proper usage.
Note: Older standards
refer to RS-485 (4-wire) as RS-422.
Serial Ports

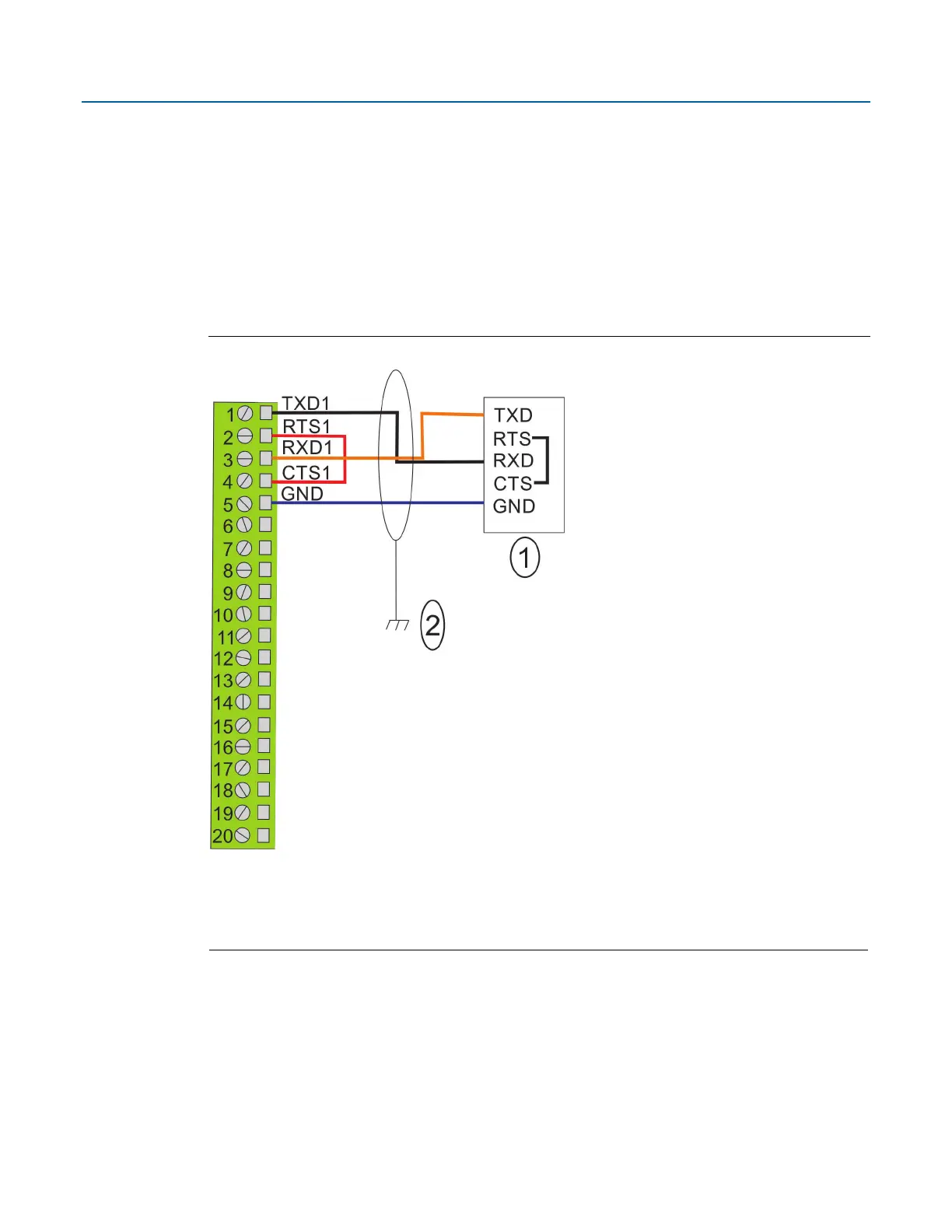

COM1 Configured as RS-232
1
RS-232 port on device
2
Connect cable shields to suitable Instrument Earth connection point
