Emerson Fisher 585C Series - Page 25

Instruction Manual
D102087X012
585C Actuator
October 2013
25

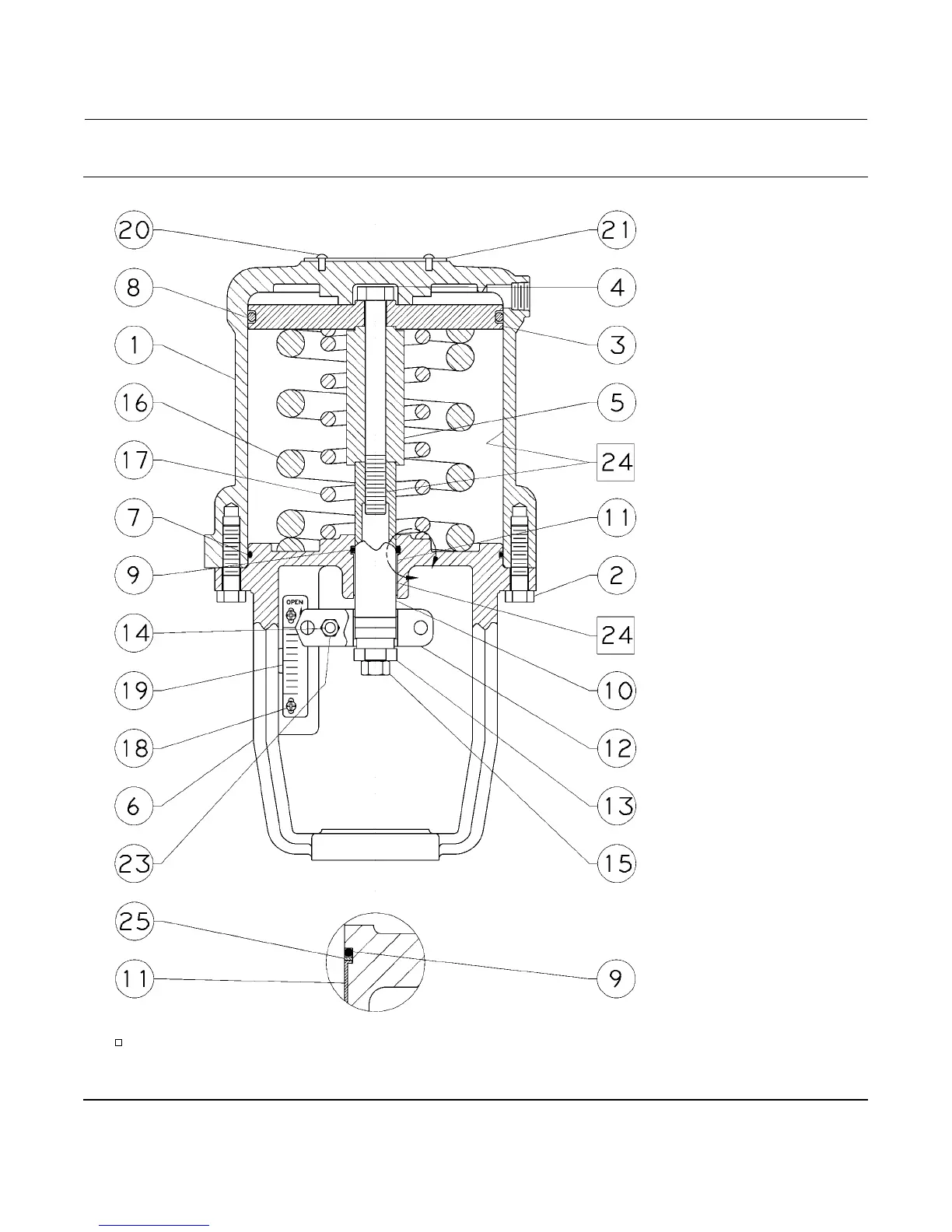

Figure 4. Fisher 585C Size 25 and 50 Actuators (spring retracts actuator rod)
44B6335-C
VIEW A
SIZE 50
A
APPLY LUB
NOTE:
KEY NUMBERS 22 AND 71 NOT SHOWN
