Instruction Manual
D102087X012
585C Actuator
October 2013
27

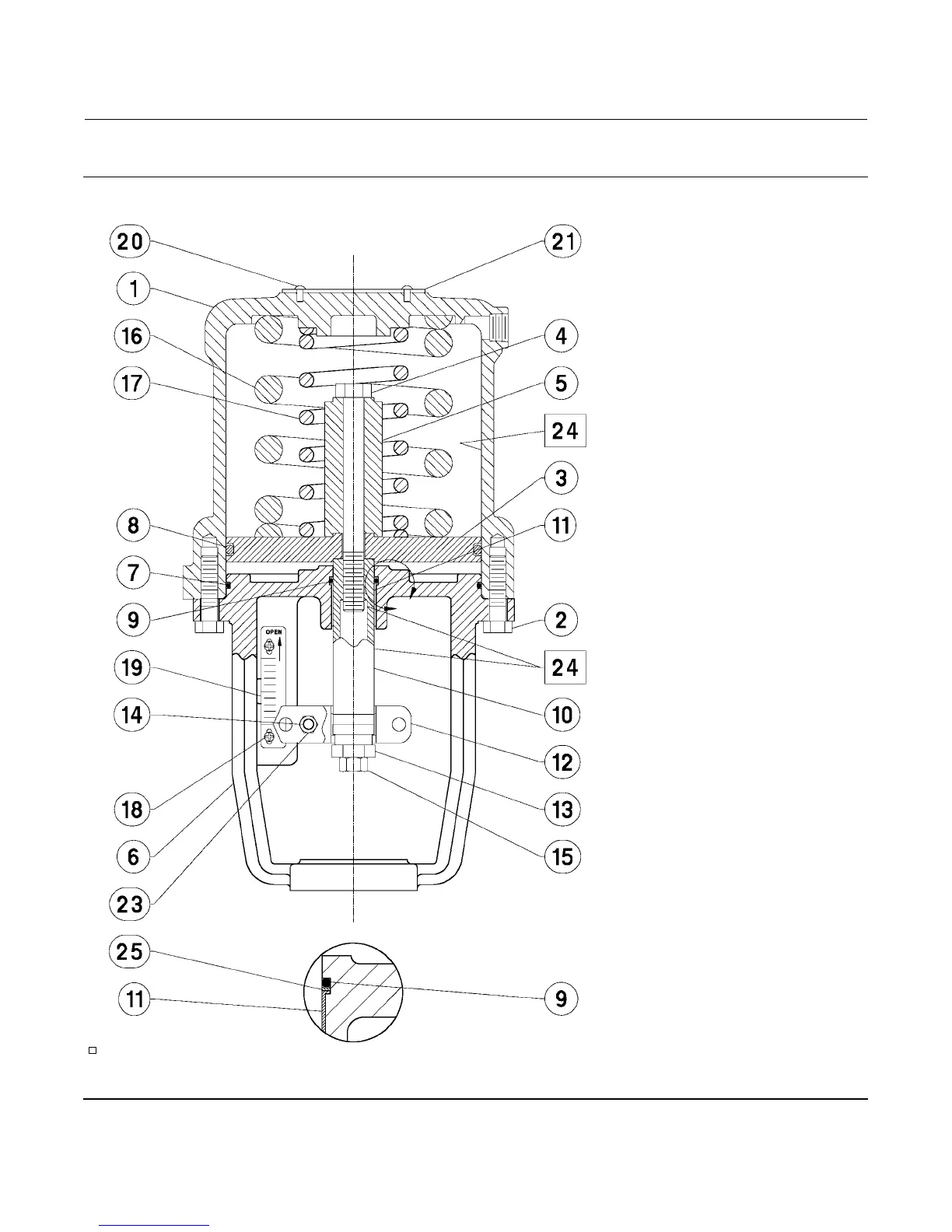

Figure 6. Fisher 585CR Size 25 and 50 Actuators (spring extends actuator rod)
44B6319-D
VIEW A SIZE 50
APPLY LUB
NOTE:
KEY NUMBERS 22 AND 71 NOT SHOWN
A
