Key Description Part Number
Automatic Drain Conversion Kits
Types 67CF, 67CFR, 67CFS and 67CFSR
  Includesauto-drain(key2),fourange
screws (key 3), dripwell O-ring (key 4)
and dripwell (key 5).
Note: Temperature rating is 40 to 175°F / 4 to 79°C.
Types 67CF and 67CFR
   Nitrile(NBR) R67ADNX0012
   Fluorocarbon(FKM) R67ADFX0012
Types 67CFS and 67CFSR
   Nitrile(NBR) R67ADNX0022
   Fluorocarbon(FKM) R67ADFX0022
1 Body
Type 67C or 67CR, Aluminum T40643T0RG2
Type67CSor67CSR,CF3M/CF8M
Stainlesssteel GE00909X012
Type 67CF or 67CFR, Aluminum T80510T0012
Type67CFSor67CFSR,CF3M/CF8M
Stainless steel 40C1887X012
Type67CFRwithSmartBleed™,Aluminum GE03477X012
2 DrainValve
ManualType67CFor67CFR
Brass 1K418918992
316Stainlesssteel AH3946X0052
Type 67CFS or 67CFSR
316Stainlesssteel AH3946X0052
Automatic (only used with large capacity dripwell)
Type 67CFS or 67CFSR
Nitrile(NBR) GG00554X012
     Fluorocarbon(FKM) GG00554X022
3 Flange Screw
Type 67C, 67CR, 67CF or 67CFR
Standard spring case and spring case
with 1/4 NPT vent (10 required) T13526T0012
For wire seal
Zinc-plated steel (9 required) T13526T0012
Steel(withhole)(1required) 14B3987X012
Type 67CS, 67CSR, 67CFS or
67CFSR (10 required) T13526T0042
4* O-ring
Type 67C, 67CR, 67CS or 67CSR
Nitrile(NBR) T14380T0012
Fluorocarbon(FKM) T14380T0022
Silicone(VMQ) T14380T0032
Type 67CF, 67CFR, 67CFS or 67CFSR
Nitrile(NBR) T14057T0042
Fluorocarbon(FKM) T14057T0022
Silicone(VMQ) T14057T0032
5 Dripwell
Type 67CF or 67CFR, Aluminum
Standard T21040T0012
LargeCapacity,manualdrain GE34605X012
LargeCapacity,automaticdrain GE34606X012
Type 67CFS or 67CFSR,
 CF3M/CF8MStainlesssteel
Standard 20C1726X012
 LargeCapacity,manualdrain GE34607X012
 LargeCapacity,automaticdrain GE31792X012
6* FilterElement
(Types 67CF, 67CFR, 67CFS and 67CFSR)
Polyethylene (5 microns) (standard) GE32761X012
Glassber(5microns) 17A1457X012
Polyvinylideneuoride(PVDF)(40microns) GE32762X012
316 Stainless steel (40 microns) 15A5967X022
Key Description Part Number
7 Spring Case Assembly
Type 67C, 67CR, 67CF or 67CFR, Aluminum/Steel
Drilled hole vent (standard) T14070T0012
Single hole vent T14070T0022
Type 67CS, 67CSR, 67CFS or 67CFSR,
 CF3M/CF8MStainlesssteel 20C1727X012
9 Filter Retainer
Type 67CF or 67CFR, Zinc-plated T14052T0012
Type 67CFS or 67CFSR, 316 Stainless steel T14052T0022
10*
(1)
 ValveCartridge T80434T0012
11*
(1)
 ValvePlug
Type 67C, 67CR, 67CF or 67CFR
Brassstem,Nitrile(NBR)plug T14053T0012
Aluminumstem,Fluorocarbon(FKM)plug T14053T0022
Aluminumstem,Nitrile(NBR)plug T14053T0032
Type 67CS, 67CSR, 67CFS or 67CFSR
Stainlesssteelstem,Nitrile(NBR)plug T14053T0042
Stainlesssteelstem,Fluorocarbon(FKM)plug T14053T0052
12*
(1)
 ValveSpring
Type 67C, 67CR, 67CF or 67CFR
302 Stainless steel T14105T0012
Inconel
®
(NACE) T14116T0012
Type 67CS, 67CSR, 67CFS or 67CFSR,
Inconel
®
(NACE) T14116T0012
13*
(1)
 ValveRetainer,Rynite
®
T14071T0012
14*
(1)
O-ring
Nitrile(NBR) T14063T0012
Fluorocarbon(FKM) T14063T0022
Silicone(VMQ) T14063T0032
15*
(1)
Soft Seat
Nitrile(NBR) T14055T0012
Fluorocarbon(FKM) T14055T0022

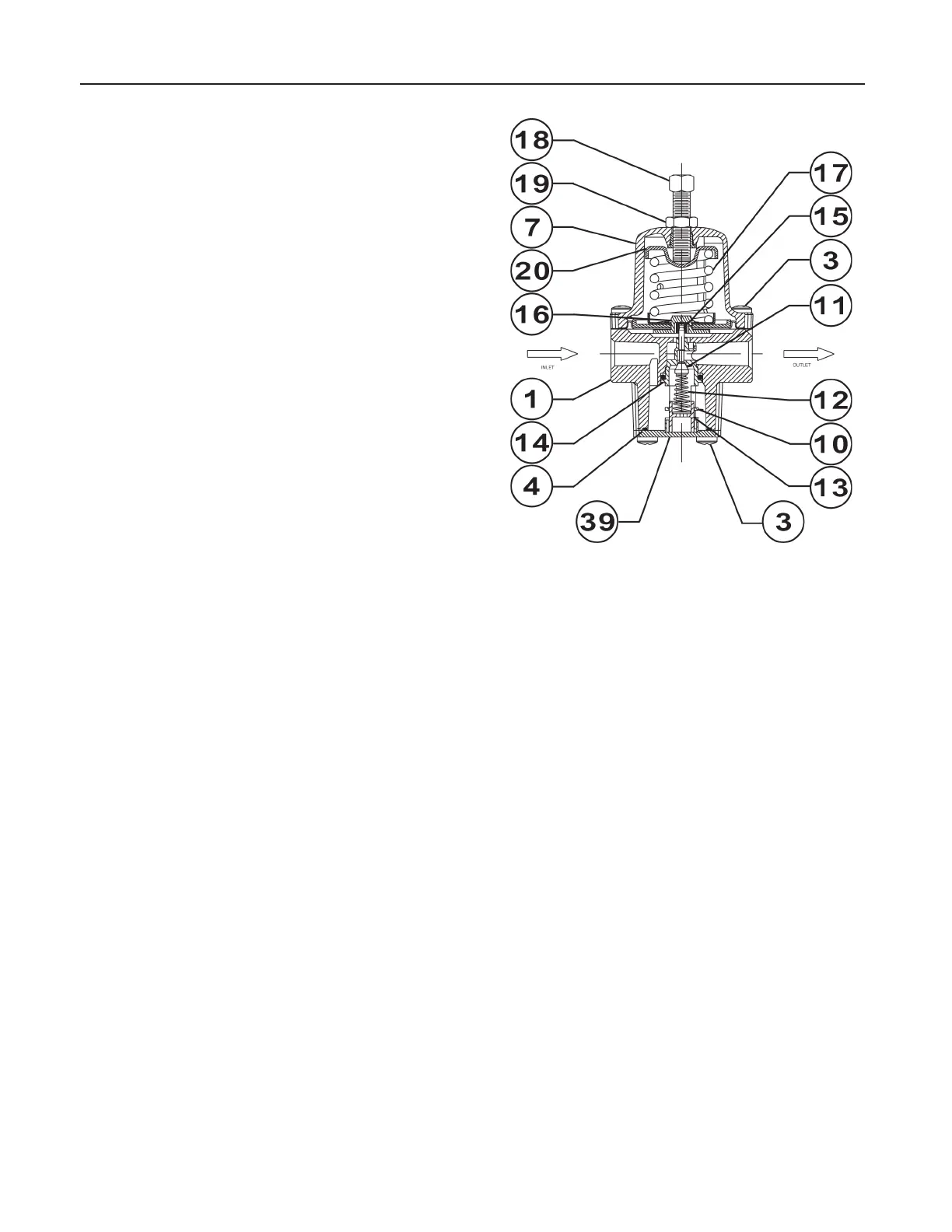

Figure 3. Type 67C or 67CR Assembly
*Recommended Spare Part.
1.Valvecartridgeassemblyincludeskeys10,11,12,13,14and15.
Inconel
®
isamarkownedbySpecialMetalsCorporation.
Rynite
®
isamarkownedbyE.I.duPontdeNemoursandCo.
NOTE:1
OUTLETINLET
15 to 30 in. lbs. /
1.7 to 3.4 N•m
15 to
30 in. lbs. /
1.7 to 3.4 N•m
T40645
APPLY LUBRICANT (L)
L1 = MULTI-PURPOSE POLYTETRAFLUOROETHYLENE (PTFE) LUBRICANT
L2 = ANTI-SEIZE COMPOUND
4
1
16A
16C
16B
20
7B
19
39
3
13
10
12
14
11
15
3
16E
16D
17
18
7A
L2
L1
L1
8
