Emerson Fisher 67C Series User Manual

67C Series
9
T40573-2

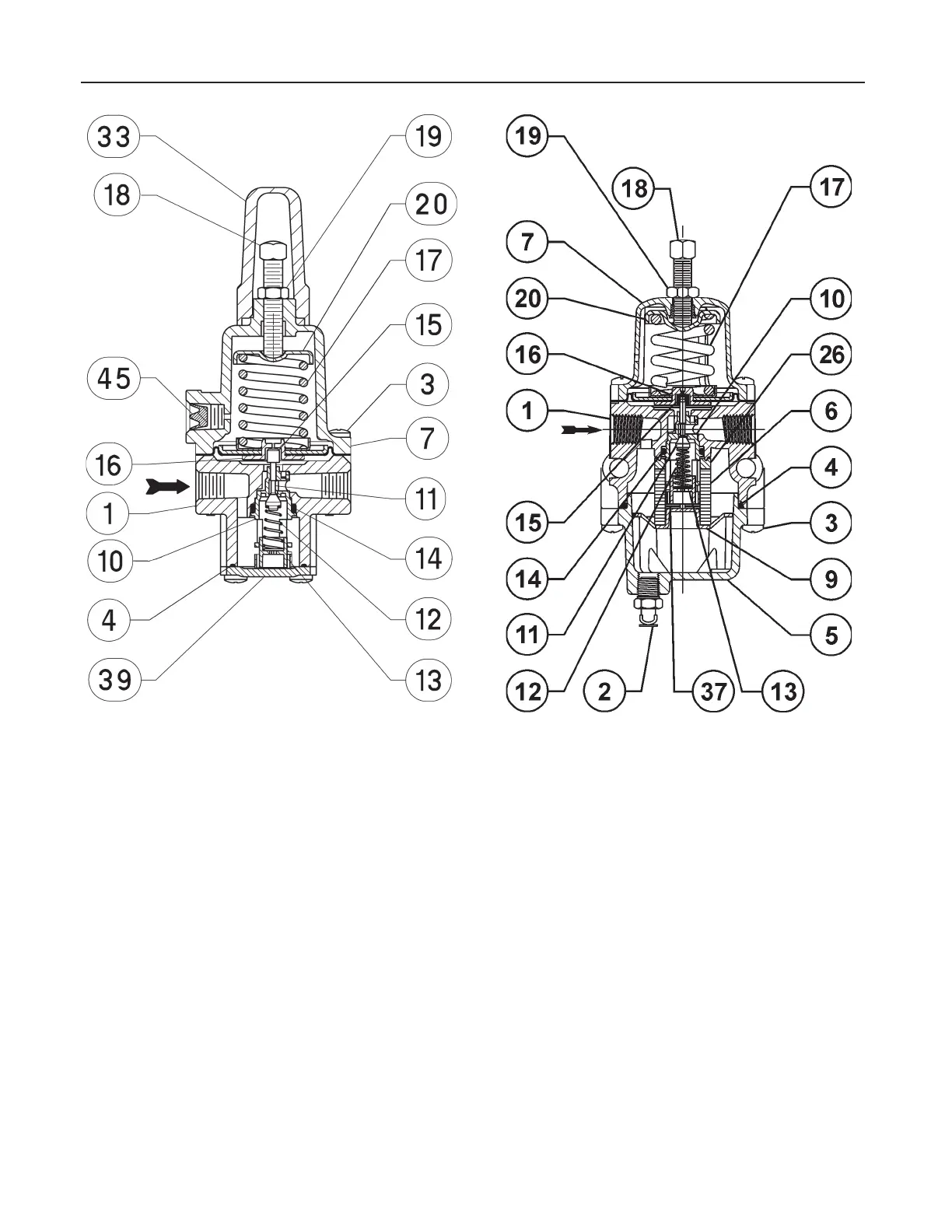

Figure 4. Type 67CS or 67CSR Assembly Drawing Figure 5. Type 67CF or 67CFR Assembly Drawing
GE03521
Key Description Part Number
23 1/4-Inch Pipe Plug (not shown)
Socket head, steel 1C333528992
Hex head, stainless steel 1A767535072
24 Tire Valve (not shown) 1H447099022
25 Information Label (not shown) - - - - - - - - - - -
26
(1)
Filter Gasket
Nitrile (NBR) T14081T0012
Fluoroelastomer (FKM) T14081T0022
30 NACE Tag (not shown) 19A6034X012
31 Panel Mounting Nut 10B2657X012
32 Wire Seal (not shown) 1U7581000A2
33 Closing Cap, resin 23B9152X012
34 Spacer (2 required) (figure 9)
Type 67CF or 67CFR T14123T0012
Type 67CFS or 67CFSR T14123T0022
Key Description Part Number
37
(1)
Thrust Washer (Type 67CF, 67CFR, 67CFS, or 67CFSR)
Nitrile (NBR) T14196T0012
Fluoroelastomer (FKM) T14196T0022
39 Bottom Plate
Type 67C or 67CR GE03520XRG2
Type 67CS or 67CSR) GE03520X012
45 Screen Vent 0L078343062
Parts for Mounting on Fisher 2500 Series Controller
35 Mounting adaptor plate (not shown) T21043T0012
36 O-ring (not shown) 1E591406992
38 Gasket (not shown) 1C898603012
