Instruction Manual
D100399X012
EW Valve
July 2017
46

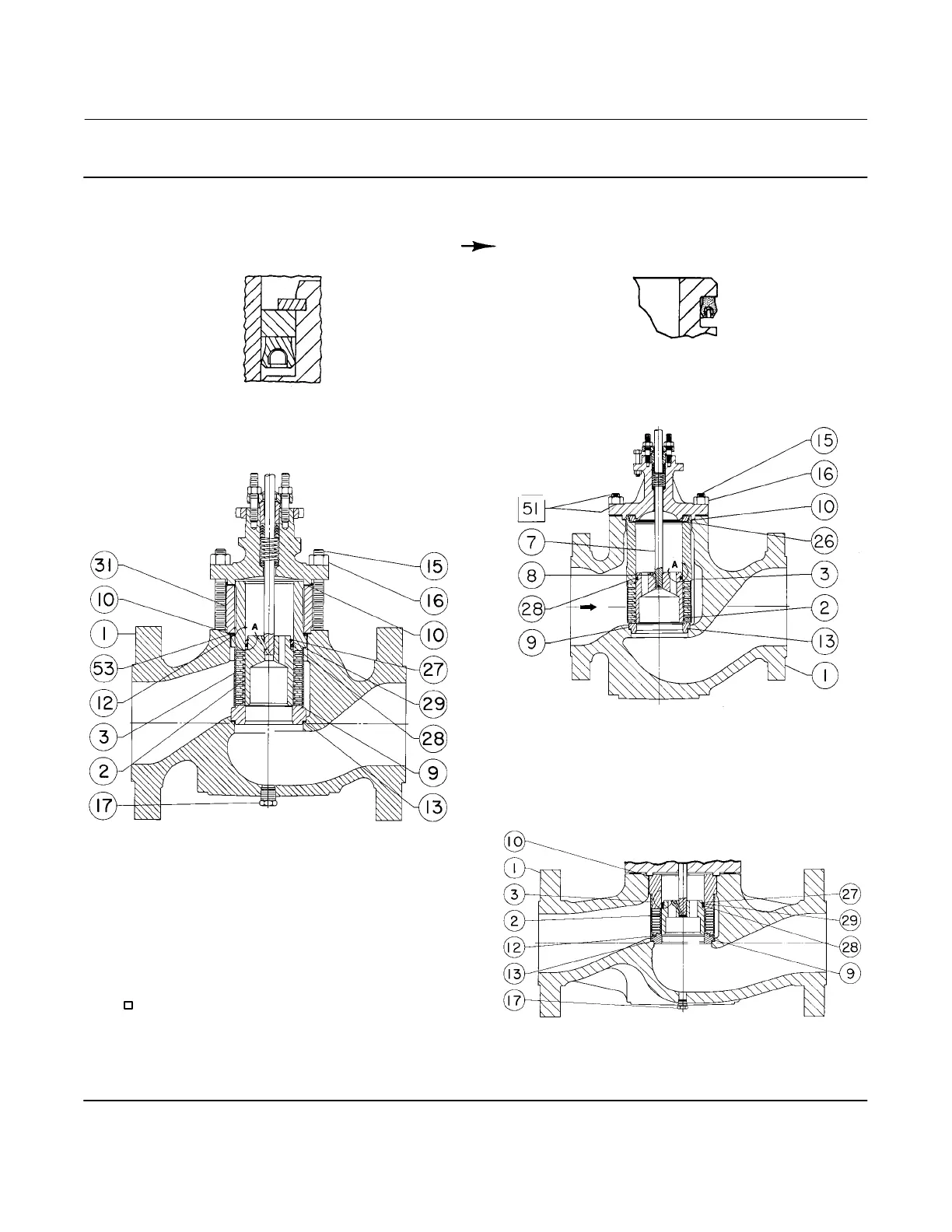

Figure 27. NPS 4x2 Through 12x8 Fisher Valves with 2‐Stage Cavitrol III Cage
VIEW A
NPS 12x8 VALVE
NPS 4x2 THROUGH 12x6 VALVES
WITH OPTIONAL DRAIN PLUG
FLOW DIRECTION
VIEW A
NPS 8x6 CL900
VALVE GASKETING DETAIL
WITH OPTIONAL DRAIN PLUG
APPL
Y LUB
54A7497‐B
54A7495‐A
55A8886‐A
45
47
Table of Contents
Table of Contents
1
Introduction
1
Scope of Manual
1
Description
3
Specifications
3
Educational Services
4
Installation
4
Inverted Globe Valve Applications (Actuator below Valve)
6
Maintenance
7
Packing Lubrication
8
Packing Maintenance
10
Replacing Packing
10
Trim Maintenance
14
Trim Removal
15
Lapping Metal Seats
16
Valve Plug Maintenance
17
Trim Replacement
19
Retrofit: Installing C-Seal Trim
20
Replacement of Installed C-Seal Trim
24
Trim Removal (C-Seal Constructions)
24
Lapping Metal Seats (C-Seal Constructions)
25
Remachining Metal Seats (C-Seal Constructions)
25
Trim Replacement (C-Seal Constructions)
26
ENVIRO-Sealt Bellows Seal Bonnet
27
Parts Ordering
32
Parts Kits
33
Parts List
36
