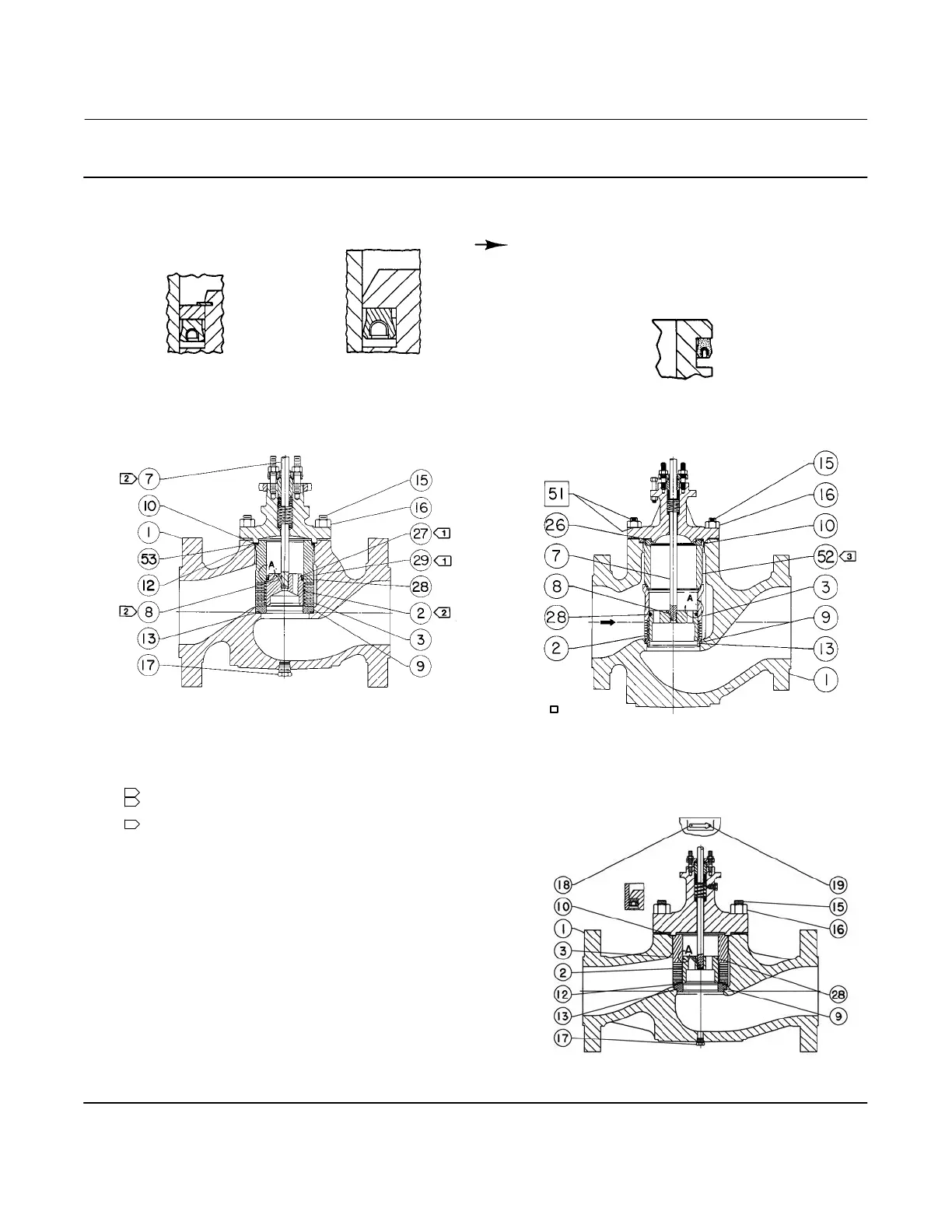

Figure 26. NPS 4x2 Through 12x8 Fisher Valves with 1‐Stage Cavitrol III Cage
VIEW A
NPS 4x2 THROUGH 8x4
VALVES
APPLY LUB
VIEW A
NPS 8x6 THROUGH 12x6
VALVES
VIEW A
NPS 12x8 VALVE
NPS 4x2 THROUGH 12x6 VALVES
WITH OPTIONAL DRAIN PLUG
58A1015‐A
58A1012‐B
58A1012‐B
54A8146‐B
FLOW DIRECTION
NOTES:
NOT REQUIRED ON NPS 8x6 AND 12x6 VALVES.
KEYS 2, 7, & 8 ARE SUPPLIED AS AN ASSEMBLY (KEY 2)
FOR NPS 8x6 AND 12x6 VALVES.
NOT REQUIRED FOR NPS 12x8 VALVES WITH 4‐ OR
6‐INCH TRAVEL.
1
2
3
NPS 8x6 CL900
VALVE GASKETING DETAIL
WITH OPTIONAL DRAIN PLUG
54A8142‐A
FLOW DIRECTION
VIEW A
