Instruction Manual
D103032X012
L2 Controller
July 2015
12
4. Slide the pivot base (key 73), retaining ring (key 76), anti‐extrusion ring (key 75), and O‐ring (key 74) off the
displacer rod. Remove the O‐ring (key 77) and backup ring (key 78) from the pivot base.

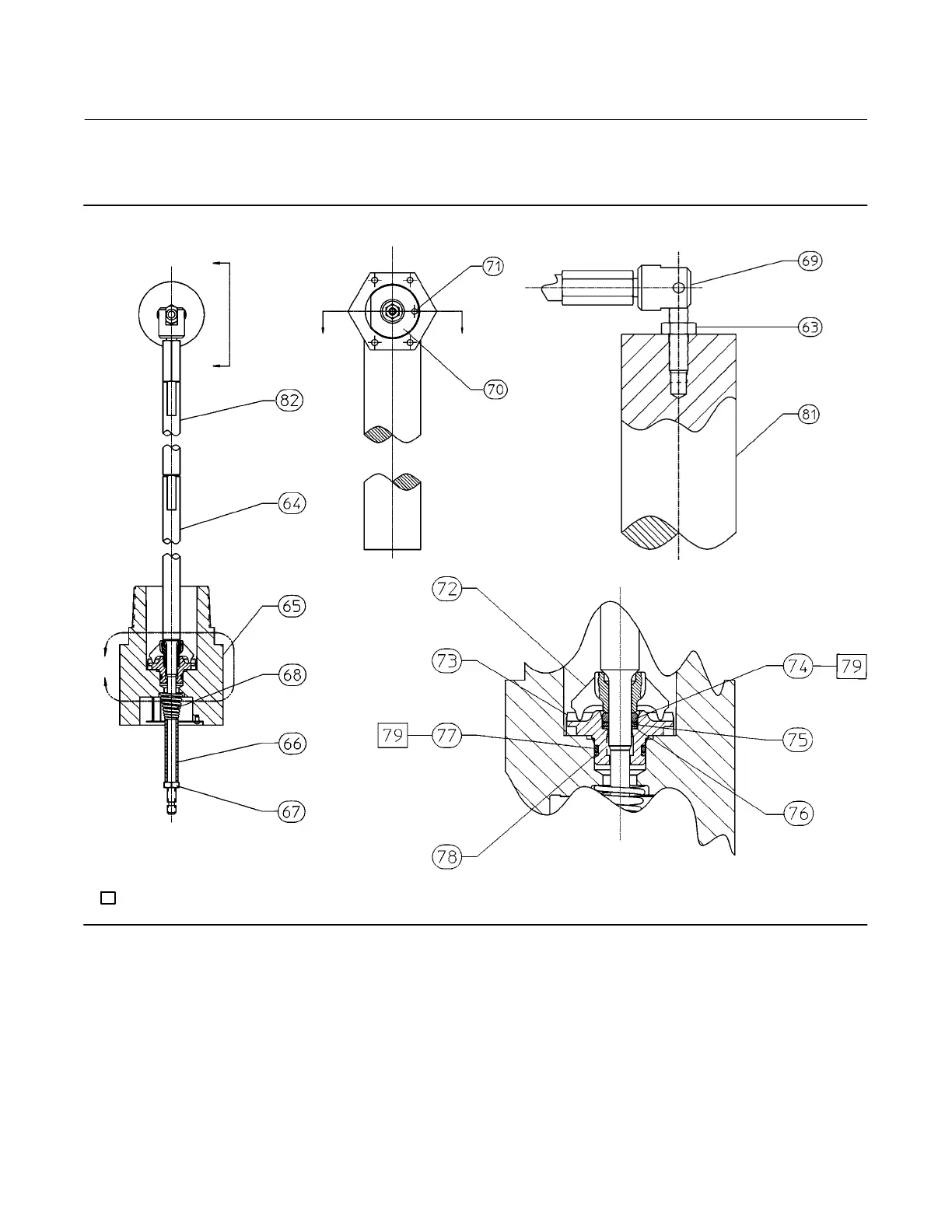

Figure 7. Sensor
GB0139-C, sht 1
VIEW C ‐ C
VIEW B
SECTION A ‐ A
C
C
A
A
B
APPLY LUB/SEALANT
