Instruction Manual
D103032X012
L2 Controller
July 2015
15

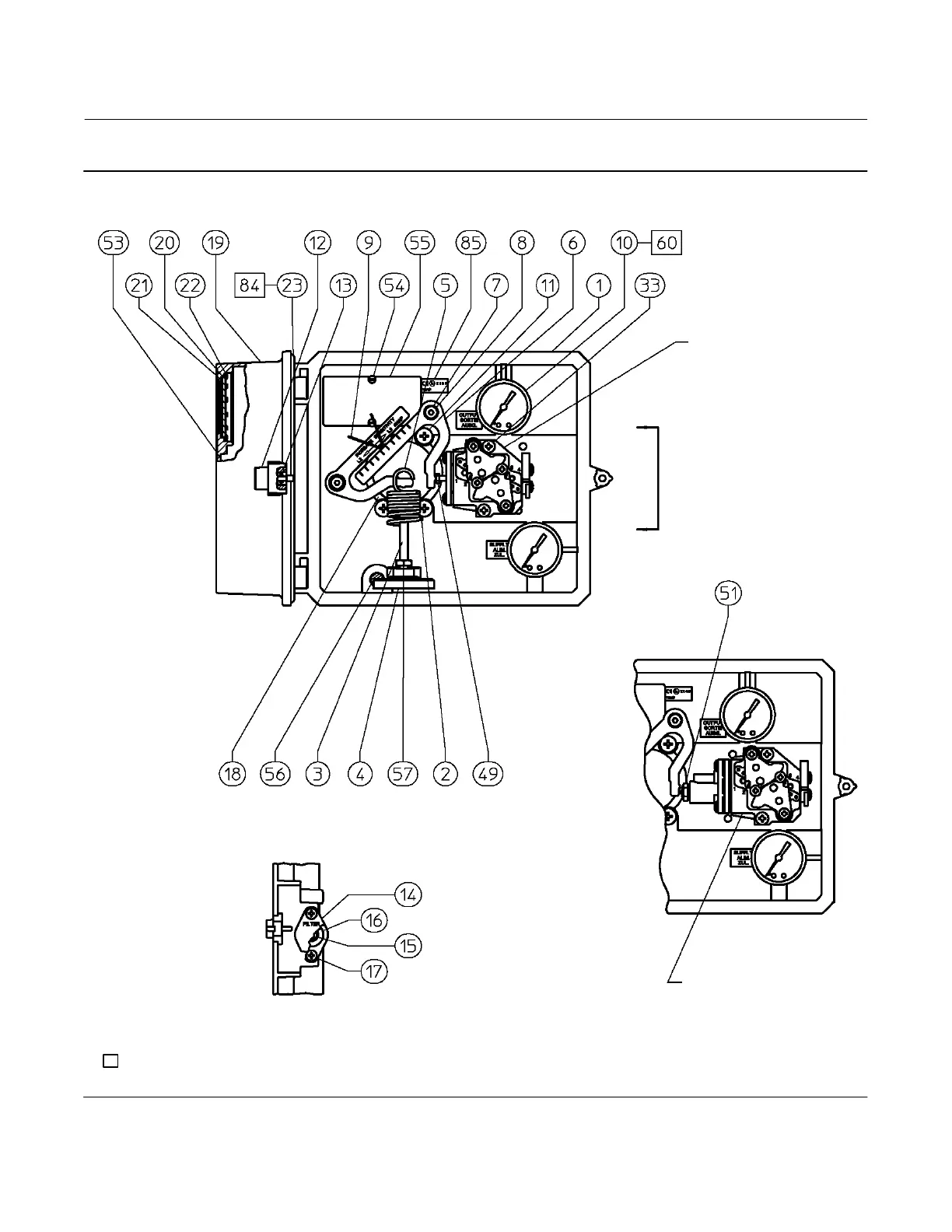

Figure 8. Fisher L2 Liquid Level Controllers
VIEW A‐A
SNAP‐ACTING CONTROLLER
THROTTLING AND ON/OFF
CONTROLLER RELAY ASSY
APPLY LUB/SEALANT
GB0137-D
SNAP‐ACTING CONTROLLER
RELAY ASSEMBLY
THROTTLING AND ON/OFF CONTROLLER
A
