Quick Start Guide Section 1
GFK-2941K Sep 2019
User Features 9
IP Address:
192.168.0.100
10.10.0.100
Subnet
Mask:
255.255.255.0
255.255.255.0
Gateway:
0.0.0.0
0.0.0.0

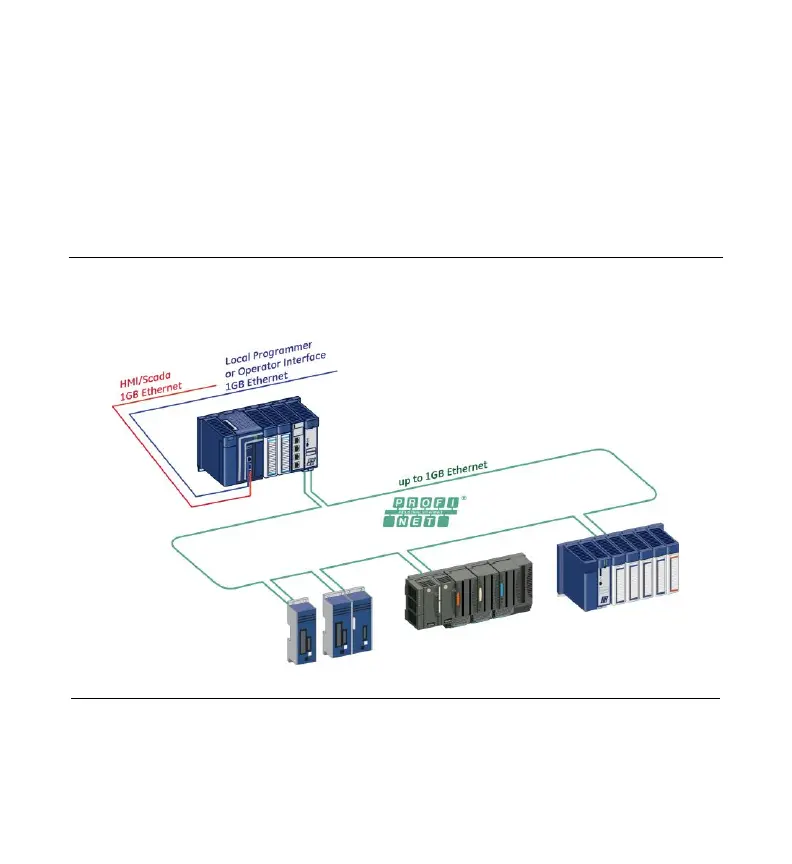

Figure 2: Typical Multi-tier LAN Application
A typical application will take advantage of the two independent LANs. The dedicated
LAN1 port will be used for communications with plant-level or supervisory layers. The
